Apex

Prices and Packages

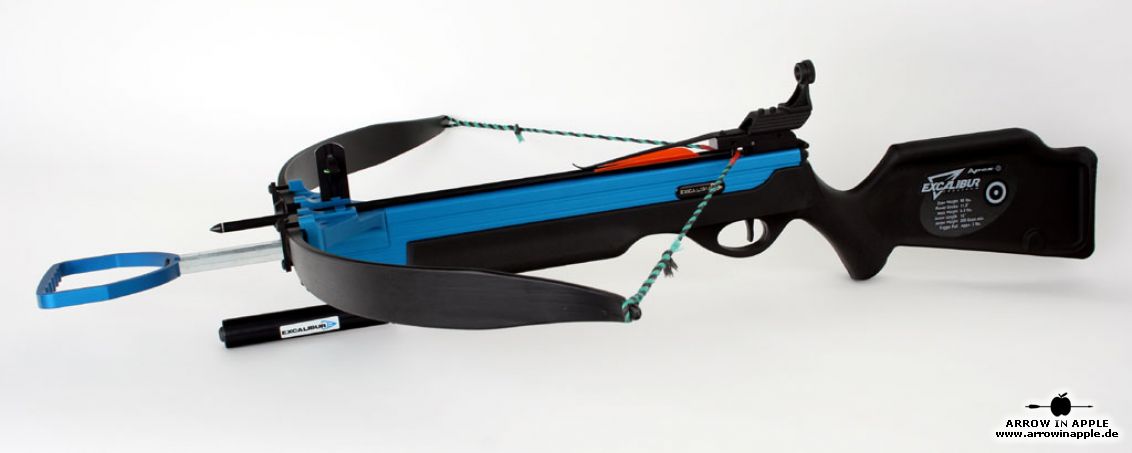

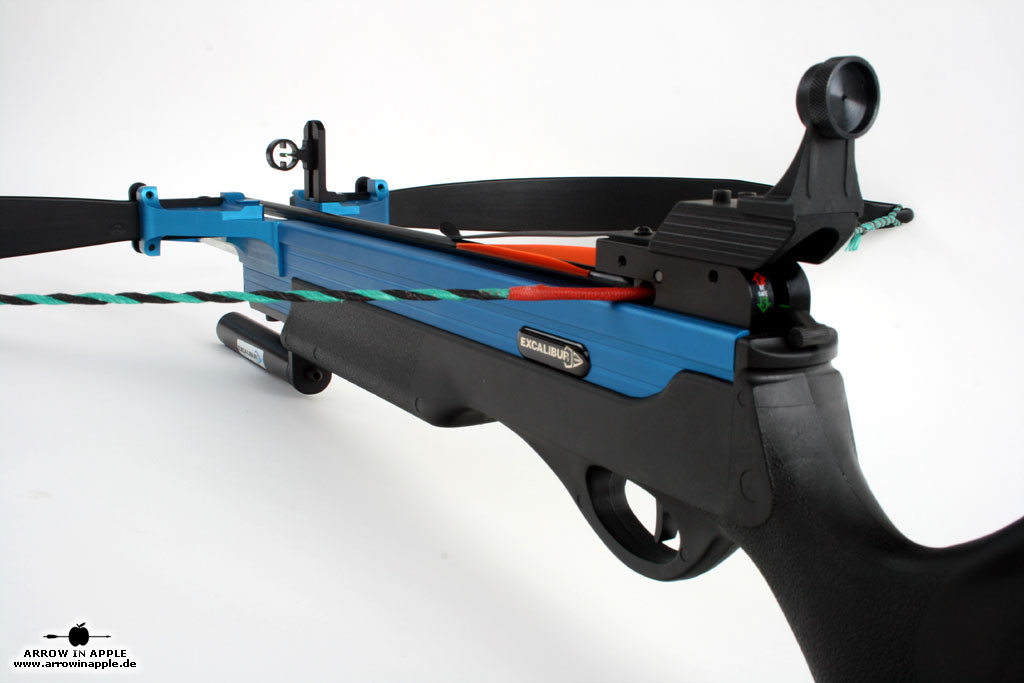

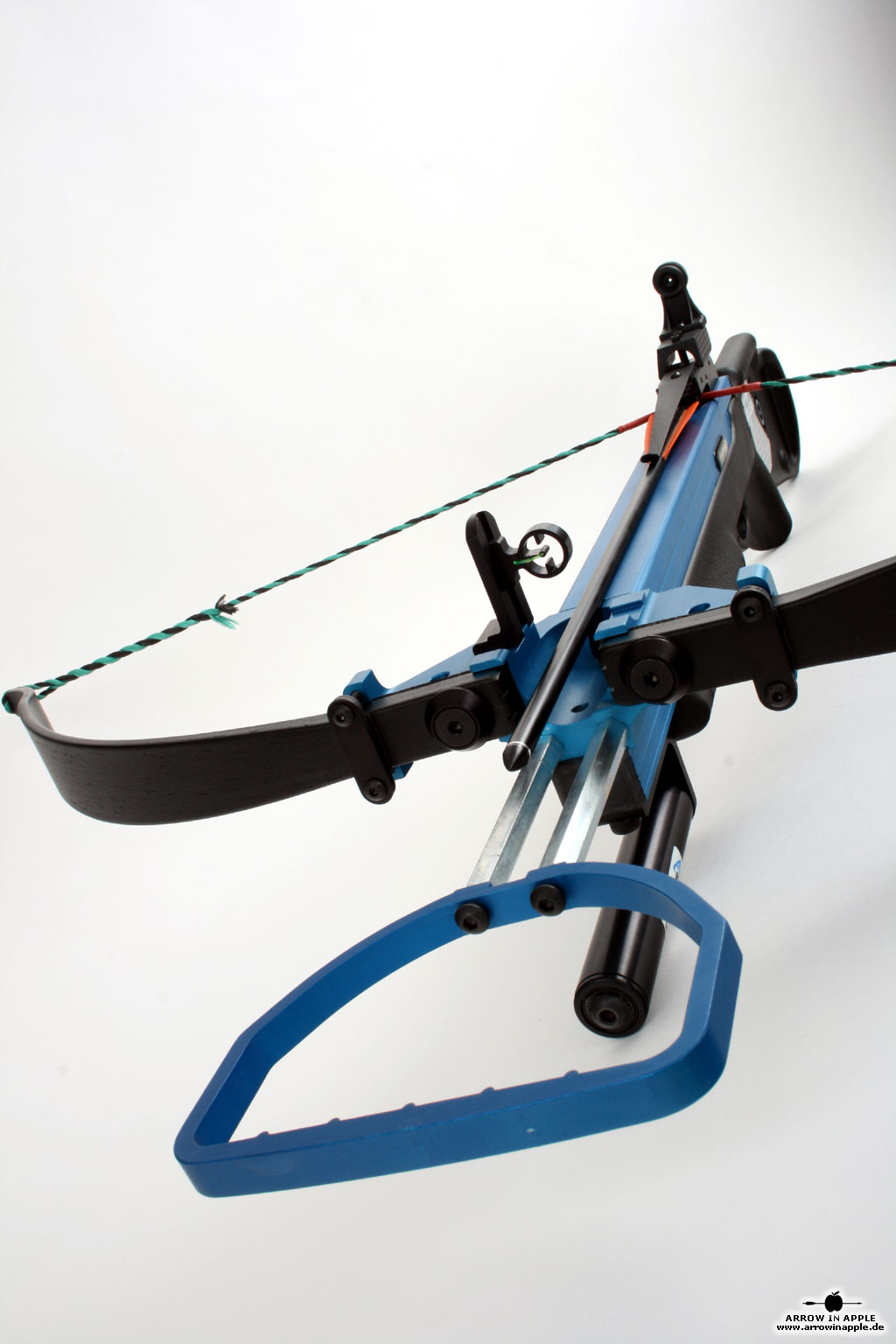

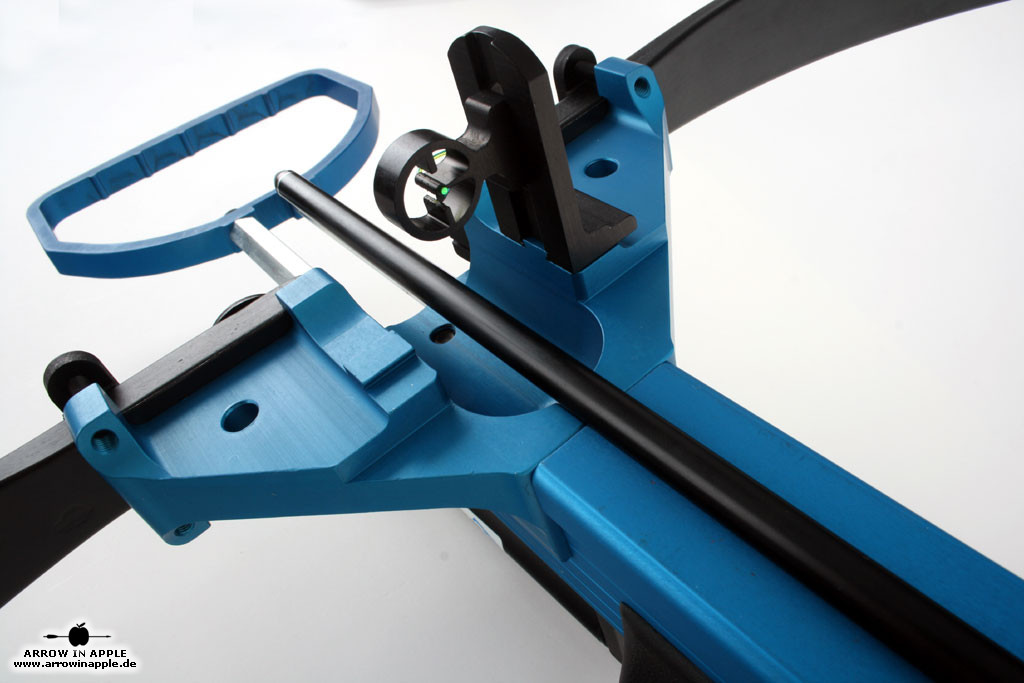

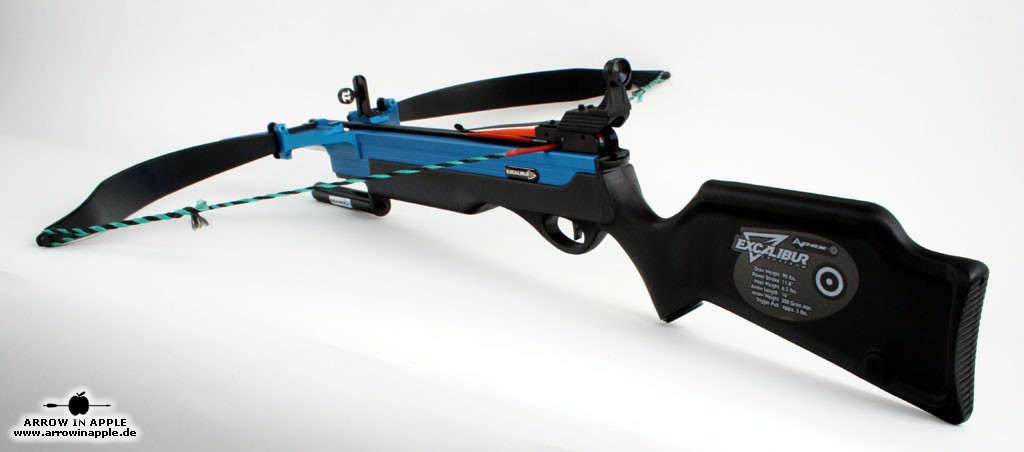

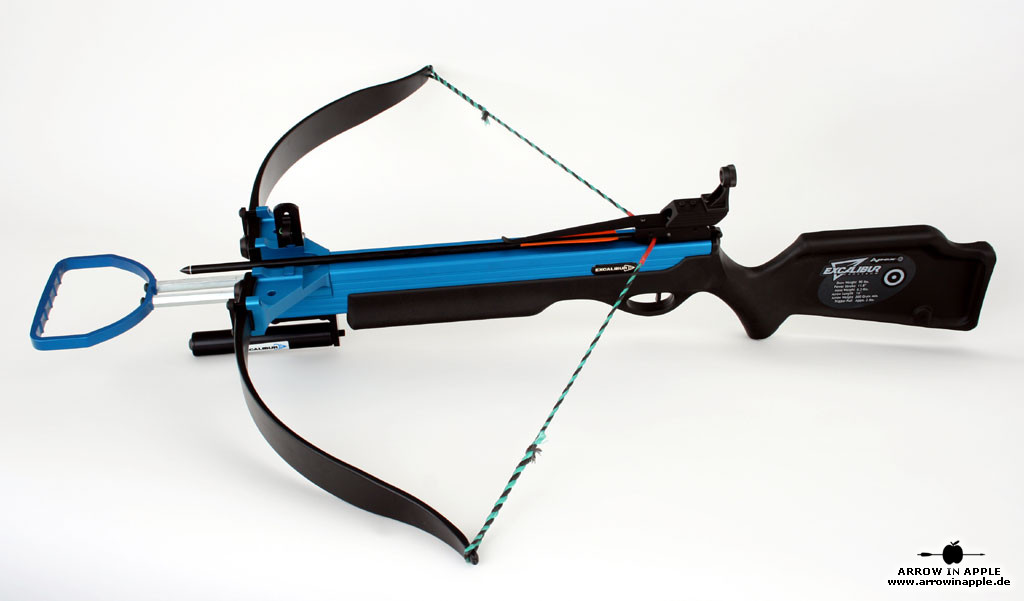

Apex, Excalibur Crossbow Inc

The Apex will be provided with following:

  • Peep Sight, Rear
  • Stabilizer and stabilizer mount, peep mount and Dacron string flemish design are optional
Crossbow from our model archive.
This model is no longer manufactured and is no longer available. Questions regarding accessories, spare parts or successor models: Contact or use leaflet.

Information about ordering, payment and shipping

Der Merkzettel kann als unverbindliche Anfrage gesendet werden.
As German direct importer for crossbows of Excalibur we offer full technical service, many years of experience, complete spare parts in stock as well as qualified advice.

Technical specification

Name
Apex
Manufacturer
Excalibur Crossbow Inc
Type (Compound/Recurve)
Recurve
Draw weight
90 lbs
Weight
2,6 kg
Powerstroke
11,75 Inch
Teflon impregnated
No
Dryfire protection
No
Hollow machined track
No
Number of limbs
2
CNC machined riser
Yes
Sight base included
No
Length incl. stirrup
-
Bowstring material
Dacron
Country
CAN
Trigger safety
Yes
Triggerweight
3 lbs
Trigger safety autom
No
Withdrawal force
-
Overall width
36,61 Inch
Dampening system
No
Length without stirrup
-
Loudness (tendency)
leise
Triggersystem
nach oben öffnend
String and cablesystem
uniform
Total mass
6,3 lbs
Specifics
Target crossbow

Arrow speed

  • Minimalarrow (300 grain):
    Arrow speed
    67 m/s
    241,2 km/h
    220 fps
    Arrow energy
    -
    -
  • Idealarrow ( grain):
    Arrow speed
    -
    -
    210 fps
    Arrow Energy
    -
    -
  • Standardarrow (506 grain):
    Arrow speed
    -
    -
    -
    Arrow Energy
    -
    -

Matchin crossbowarrows

Arrow weight
-
Shaft spline carbon
2264
Shaft spline alu
2219
Arrow length
16-18 Inches
min. arrow diameter
8,334 mm

Range

  • max. adjustable range with scope and accessories (elevation scope mount):
    Range
    -
  • max. range standardvisor:
    Range
    -
