Micro 315

Prices and Packages

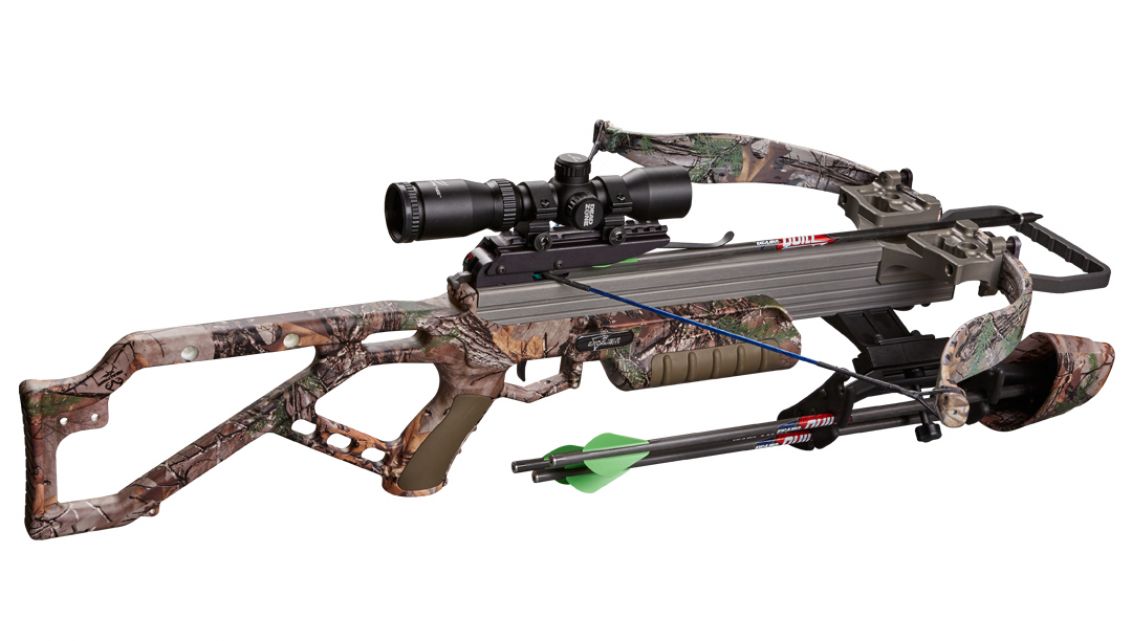

Micro 315, Excalibur Crossbow Inc

The Micro 315 will be provided with following:

  • original package with Dead Zone scope, scope mount with dry fire inhibitor
  • quiver with mount, does fit for 4 arrows, 4 x 18 inch Carbon arrows, weaver mount, T-handle coking aid
Crossbow from our model archive.
This model is no longer manufactured and is no longer available. Questions regarding accessories, spare parts or successor models: Contact or use leaflet.

EUR 529,00

Prices incl. 19% VAT

Information about ordering, payment and shipping

Der Merkzettel kann als unverbindliche Anfrage gesendet werden.
As German direct importer for crossbows of Excalibur we offer full technical service, many years of experience, complete spare parts in stock as well as qualified advice.

Technical specification

Name
Micro 315
Manufacturer
Excalibur Crossbow Inc
Type (Compound/Recurve)
Recurve
Draw weight
260 lbs
Weight
2,35 kg
Powerstroke
10 Inch
Teflon impregnated
No
Dryfire protection
No
Hollow machined track
No
Number of limbs
2
CNC machined riser
Yes
Sight base included
Yes
Length incl. stirrup
32,5 Inch
Bowstring material
DynaFlight
Country
CAD
Trigger safety
Yes
Triggerweight
-
Trigger safety autom
No
Withdrawal force
-
Overall width
25,17 Inch
Dampening system
No
Length without stirrup
-
Loudness (tendency)
weniger leise
Triggersystem
nach oben öffnend
String and cablesystem
uniform
Total mass
5,2 lbs
Specifics
-

Arrow speed

  • Minimalarrow (350 grain):
    Arrow speed
    96 m/s
    345,6 km/h
    315 fps
    Arrow energy
    104,6 Joule E0
    77,5 ft. lbs
  • Idealarrow (400 grain):
    Arrow speed
    91,44 m/s
    329,184 km/h
    300 fps
    Arrow Energy
    108 Joule E0
    80 ft. lbs
  • Standardarrow (506 grain):
    Arrow speed
    -
    -
    -
    Arrow Energy
    -
    -

Matchin crossbowarrows

Arrow weight
400 grain
Shaft spline carbon
2264
Shaft spline alu
2219
Arrow length
16,5- 18 Inches
min. arrow diameter
8,7 mm

Range

  • max. adjustable range with scope and accessories (elevation scope mount):
    Range
    121 yard
  • max. range standardvisor:
    Range
    55 yard
