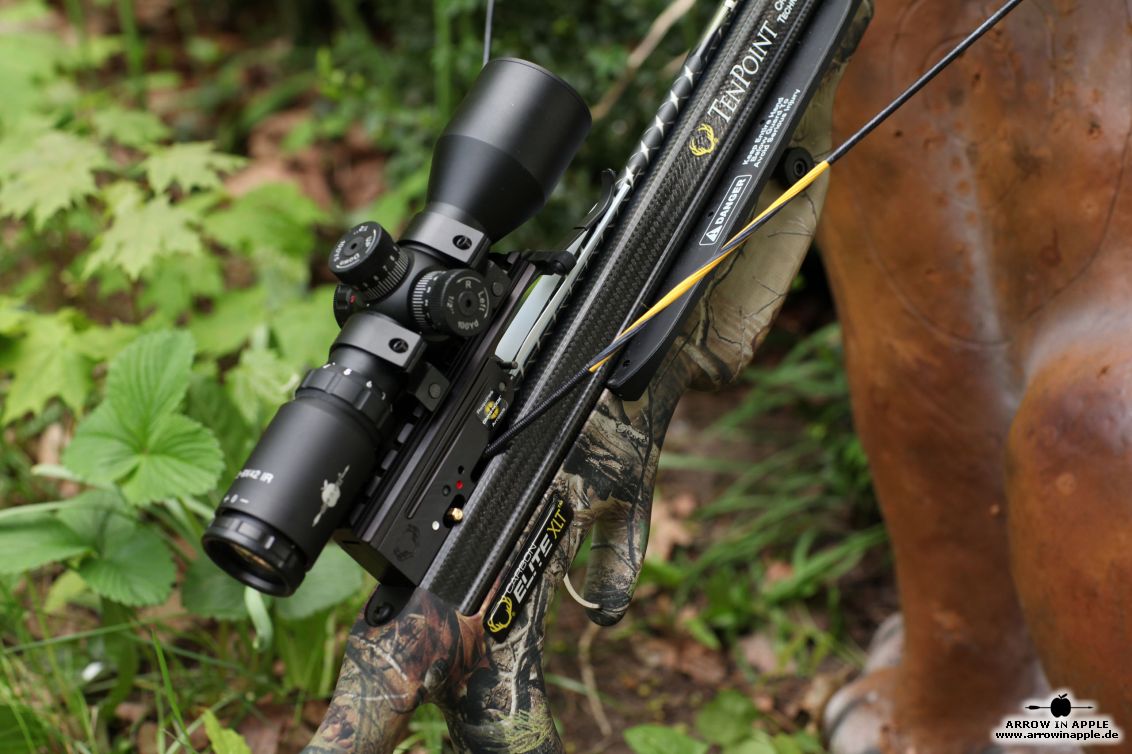

Carbon Elite XLT

Prices and Packages

Carbon Elite XLT, TenPoint Crossbow Technologies

The Carbon Elite XLT will be provided with following:

  • 3-9 x 42 AIA FRS 101 scope, for 3D and very long range distances over 150ms
  • quiver with mount
  • 3 carbon arrows
  • ACU Draw 50
  • 3 safety,active Dry fire inhibitor, autom. trigger safety and thumb safety
  • SDS dampening is an option
Crossbow from our model archive.
This model is no longer manufactured and is no longer available. Questions regarding accessories, spare parts or successor models: Contact or use leaflet.
Der Merkzettel kann als unverbindliche Anfrage gesendet werden.
As German direct importer for crossbows of TenPoint Crossbows we offer full technical service, many years of experience, complete spare parts in stock as well as qualified advice.

Technical specification

Name
Carbon Elite XLT
Manufacturer
TenPoint Crossbow Technologies
Type (Compound/Recurve)
Compound
Draw weight
185 lbs
Weight
3,12 kg
Powerstroke
12,625 Inch
Teflon impregnated
Yes
Dryfire protection
Yes
Hollow machined track
No
Number of limbs
4
CNC machined riser
Yes
Sight base included
Yes
Length incl. stirrup
-
Bowstring material
FastFlight
Country
USA
Trigger safety
Yes
Triggerweight
2,98 lbs
Trigger safety autom
Yes
Withdrawal force
-
Overall width
19,7 Inch
Dampening system
No
Length without stirrup
-
Loudness (tendency)
sehr leise
Triggersystem
power Touch, nach oben öffnend
String and cablesystem
uniform
Total mass
6,8 lbs
Specifics
The most lightweight crossbow unddr the TenPoint compound xbows

Arrow speed

  • Minimalarrow (370 grain):
    Arrow speed
    107 m/s
    385,2 km/h
    352 fps
    Arrow energy
    -
    -
  • Idealarrow (425 grain):
    Arrow speed
    102 m/s
    367,2 km/h
    334 fps
    Arrow Energy
    -
    -
  • Standardarrow (506 grain):
    Arrow speed
    97 m/s
    349,2 km/h
    319 fps
    Arrow Energy
    -
    -

Matchin crossbowarrows

Arrow weight
425 grain
Shaft spline carbon
2264
Shaft spline alu
2219
Arrow length
20 Inches
min. arrow diameter
8,7 mm

Range

  • max. adjustable range with scope and accessories (elevation scope mount):
    Range
    165 yard
  • max. range standardvisor:
    Range
    77 yard
