Titan TL4 2006

Price includes

Titan TL4 2006, TenPoint Crossbow Technologies
  • Standard visor - pin sight, diopter
  • 1 arrow
  • free shipping within Germany
  • no scope included

Preis: 399,- €

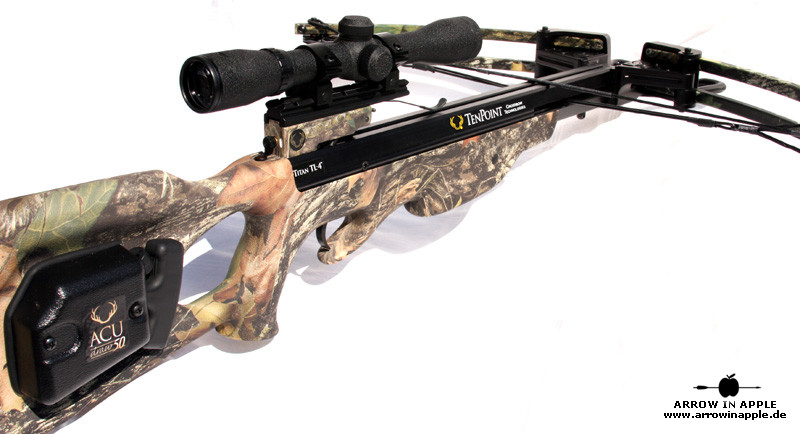

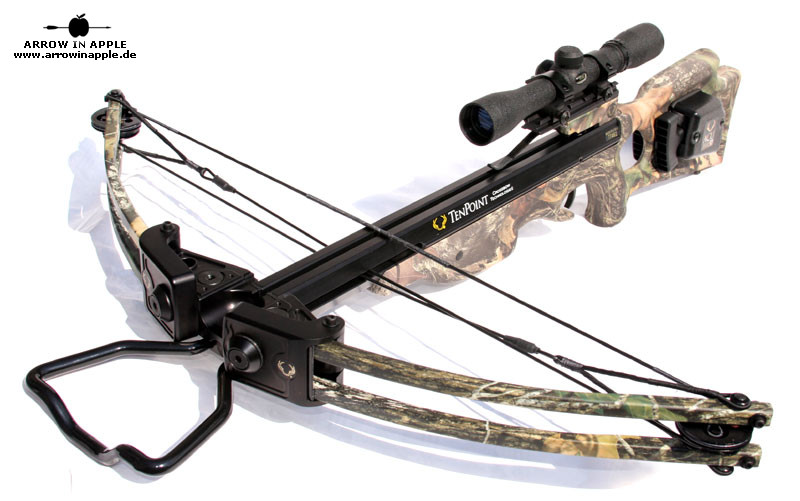

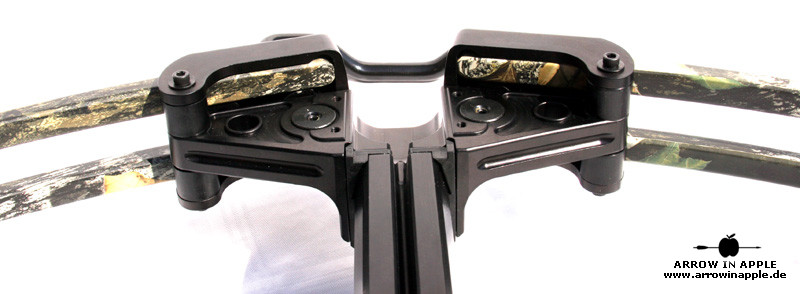

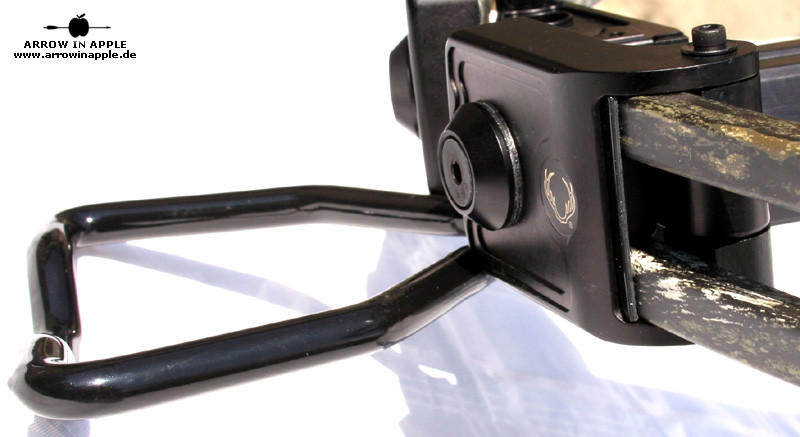

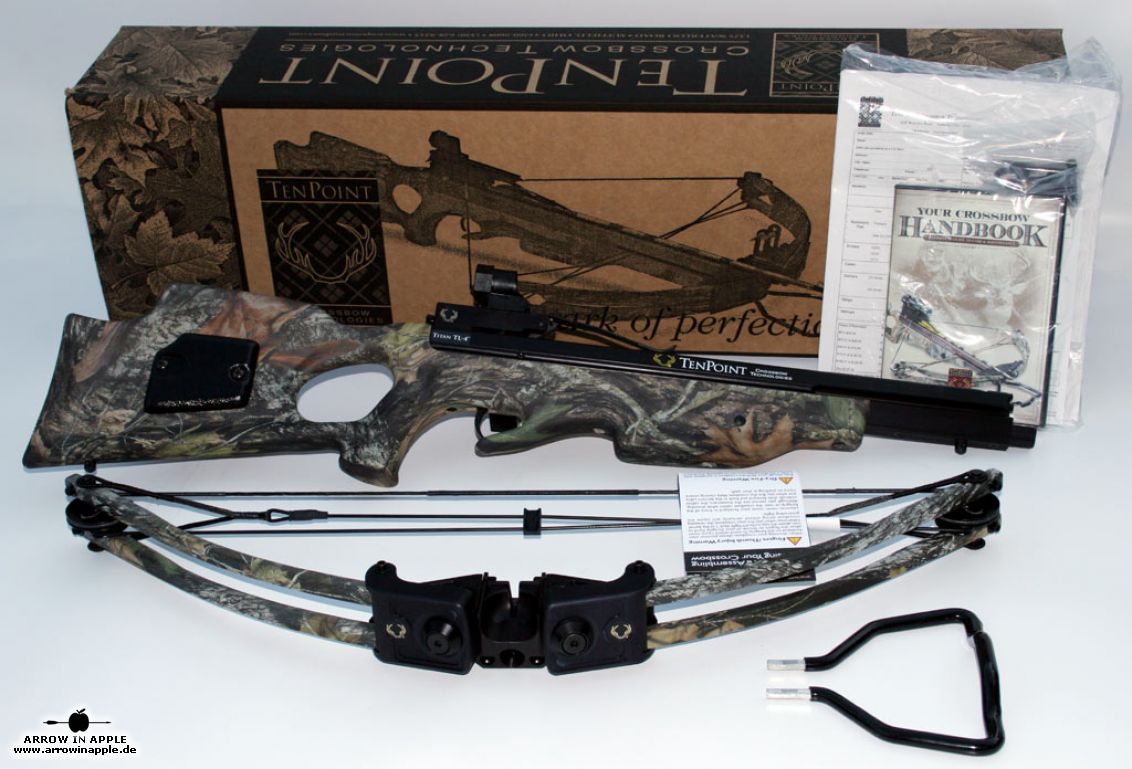

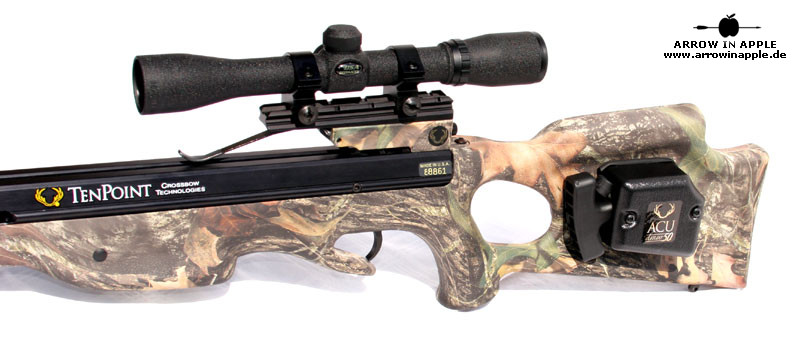

Bilder zur Titan TL4 2006

You see 6 of 10 photos to Titan TL4 2006

Description

TenPoint Crossbow Technology - The brand of the crossbow-worldchampions.
2010: WCSA 3D in Stockholm / Sweden: H. Nischan (GER)
2009: WCSA 3D in Salzburg / Austria - Janko Pinter (SLO)


The Titan TL4 has no need to dread any comparison in her price class. A first-class workmanship, firm usability, an exact and easy trigger and arrow speeds up to 85 m/s allow precise hits at any time.

The Crossbow Hunter Unlimited 3D European Championship 2006 in Austria was won with a TenPoint crossbow.

The CNC milled riser and the connection of stock and barrel are equipped with a special dampening package, assuring a silent and dampened shot.

The Titan TL4 is furnished with an automatic dry fire safety. The accidential shooting without an arrow and the damage resulting are thus excluded.

The Titan TL4 is upgradeable with a scopemount (Weaver 22mm), a scope, a detachable arrow quiver and a cocking aid, like the ACU-Draw 50.

Technical specification

Name
Titan TL4 2006
Manufacturer
TenPoint Crossbow Technologies
Type (Compound/Recurve)
Compound crossbow
Draw weight
165 lbs
Weight
3,4 kg
Powerstroke
11.69 Inch
Teflon impregnated
No
Dryfire protection
Yes
Hollow machined track
No
Number of limbs
4
CNC machined riser
Yes
Sight base included
No
Length incl. stirrup
36.42 Inch
Bowstring material
FastFlight
Country
USA
Trigger savety
Yes
Trigger savety autom
Yes
Withdrawal force
735,75 N
Overall width
27.56 Inch
Dampening system
No
Length without stirrup
32.28 Inch
Loudness (tendency)
weniger leise
Triggersystem
Drop Latch
String and cablesystem
mixed
Total mass
7.5 lbs
Specifics
  • 2 different cocking aid systems mountable (ACU Draw and ACU Draw 50)
  • Shoulder sling mountable
  • quiver mountable
  • scope mount base optional

Matchin crossbowarrows

Arrow weight
420 grain
Shaft spline carbon
2264
Shaft spline alu
2219
Arrow length
20 Inches
min. arrow diameter
8,73 mm

Arrow speed

  • Minimalarrow ( grain):
    Arrow speed
    -
    -
    -
    Arrow energy
    -
    -
  • Idealarrow (420 grain):
    Arrow speed
    85,3 m/s
    307,08 km/h
    280 fps
    Arrow Energy
    -
    73 ft. lbs
  • Standardarrow (506 grain):
    Arrow speed
    76,2 m/s
    274,32 km/h
    250 fps
    Arrow Energy
    -
    -

Range

  • max. adjustable range with scope and accessories (elevation scope mount):
    Range
    0-66 yard
  • max. range standardvisor:
    Range
    0-76,9 yard
