Great Lakes Stinger Carbondesign

Manufacturer: Great Lakes Crossbows

Alle Fotos

Prices and Packages

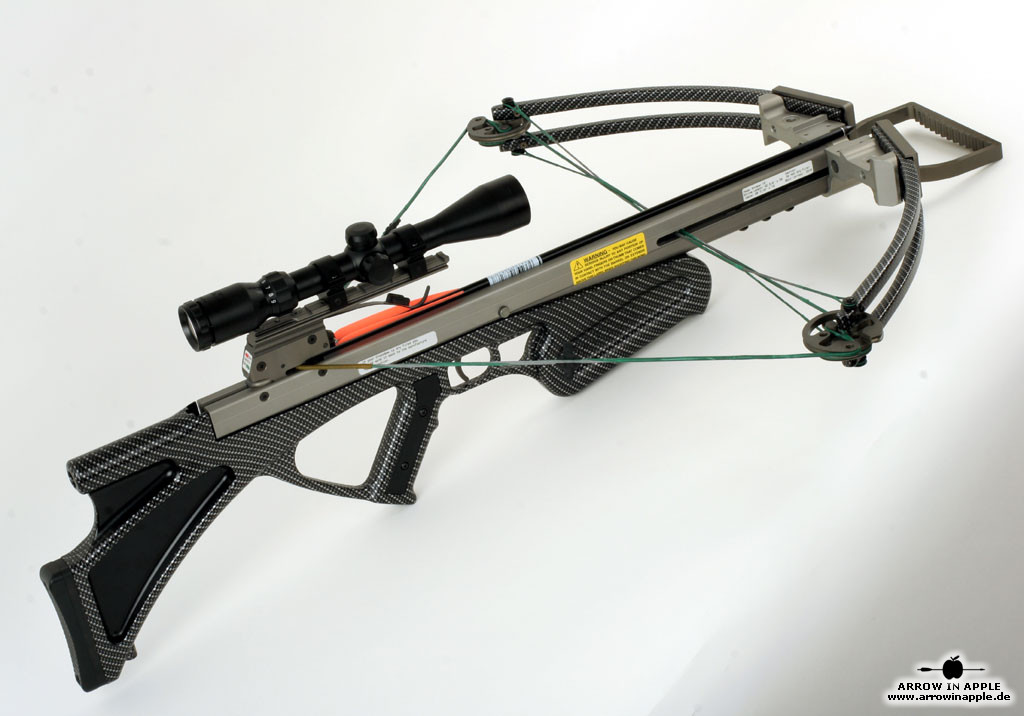

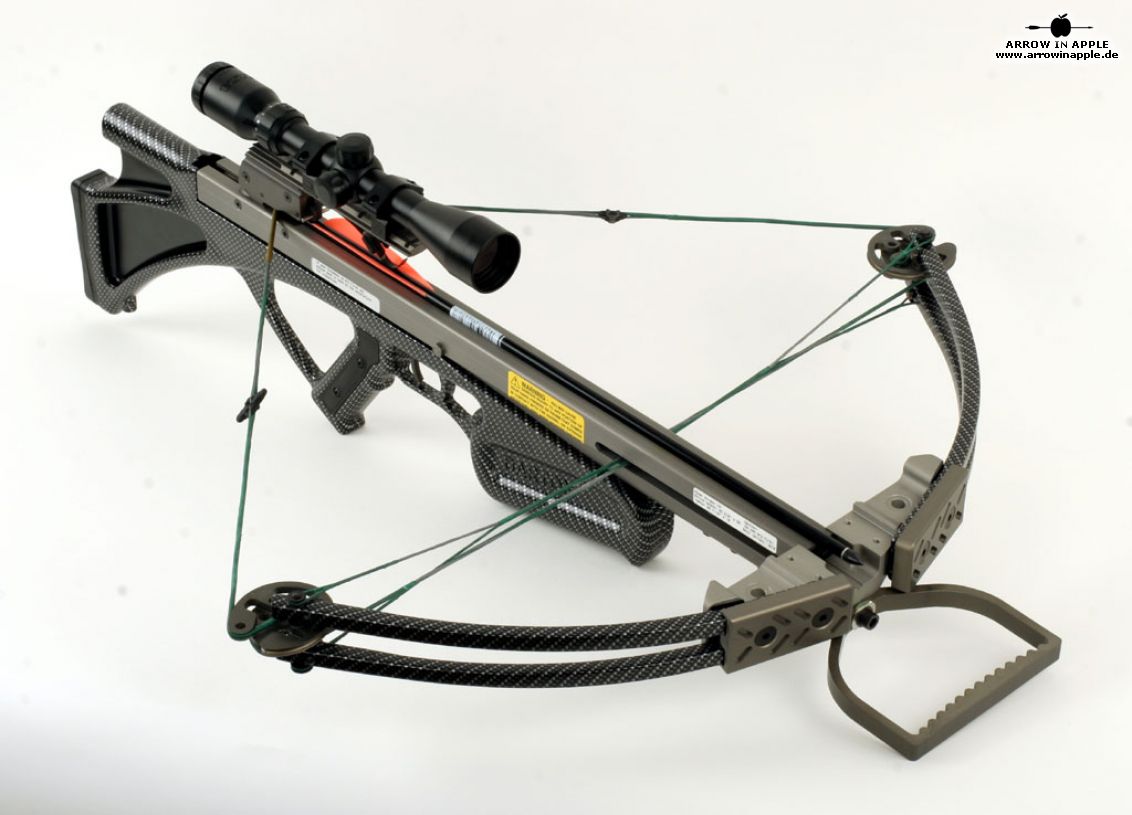

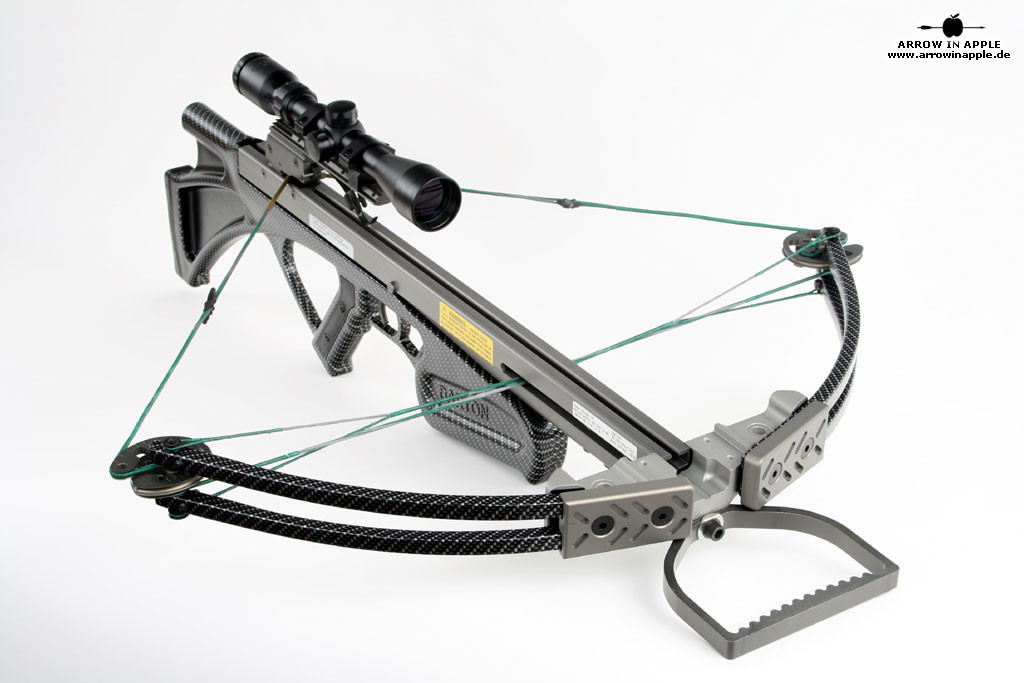

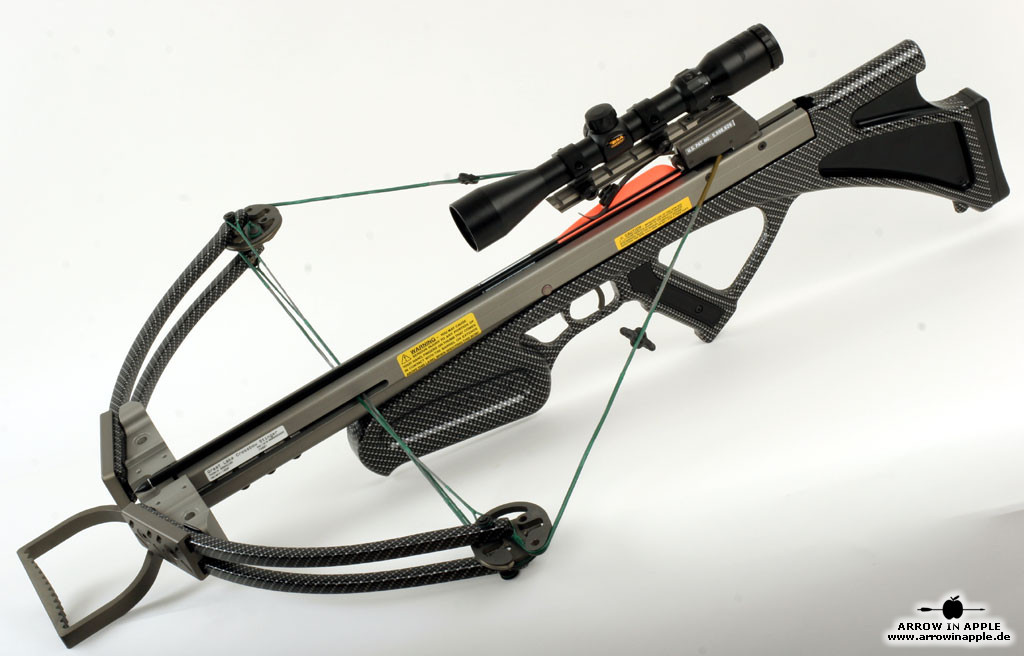

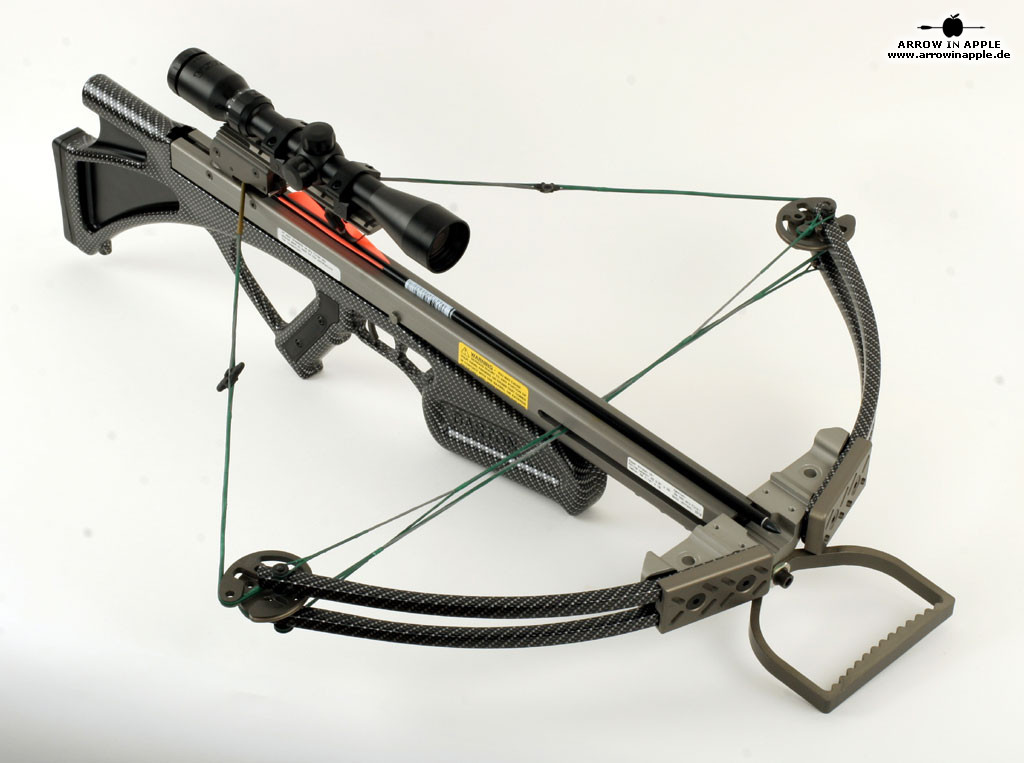

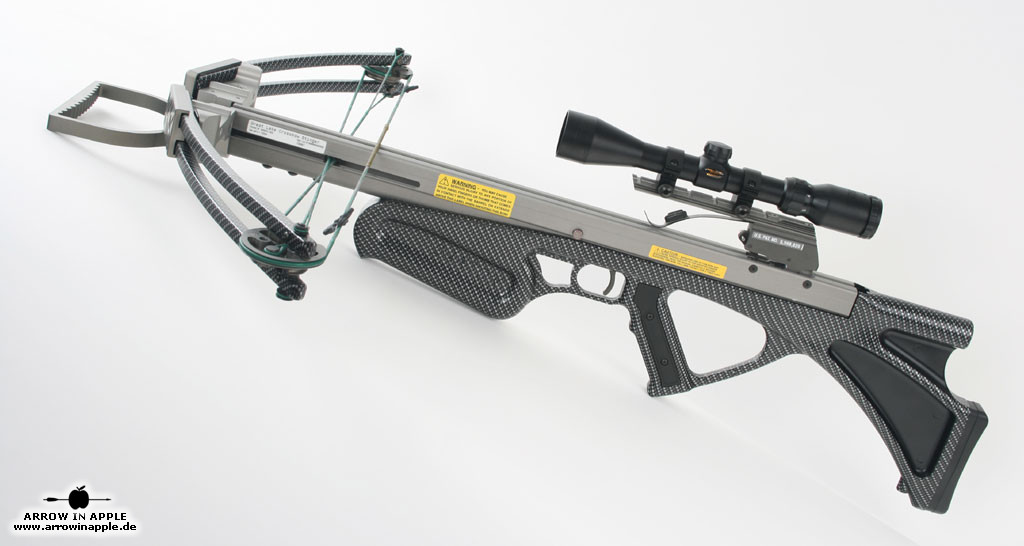

Stinger Carbondesign, Great Lakes Crossbows

The Stinger Carbondesign will be provided with following:

4 x 32 AIA scope with scope rings for the weaver bar
3 arrows 22" 2219 AIA
free shipping within Germany

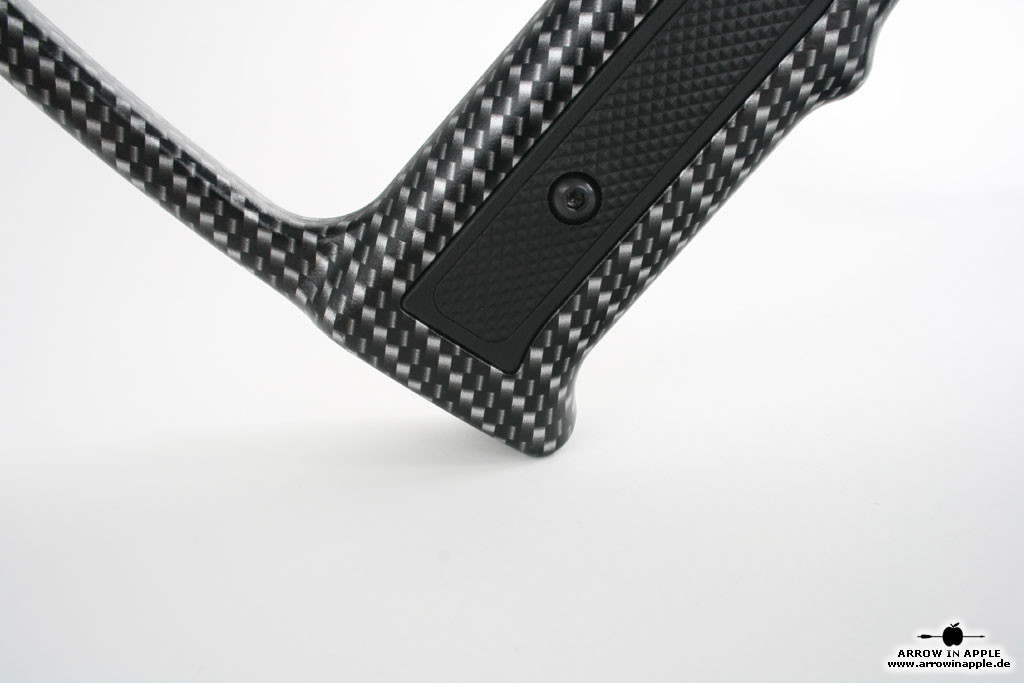

adjustable butt plate for a custom fit
bow dampening Package

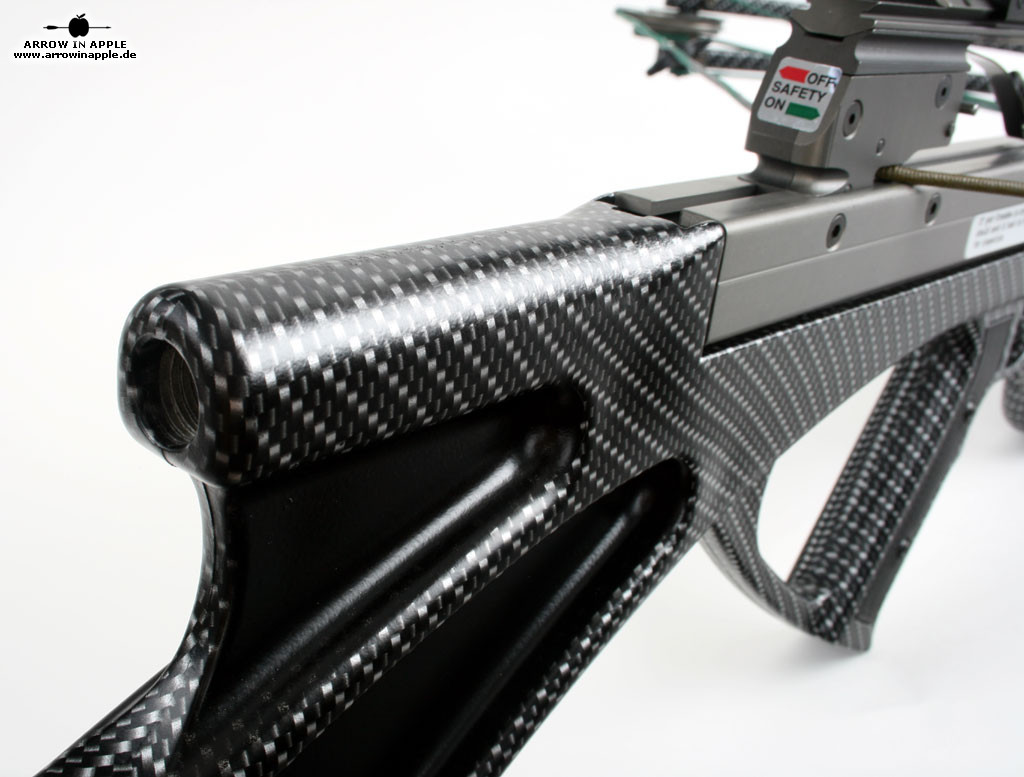

Crossbow stock like Impact sport stock

Crossbow from our model archive.
This model is no longer manufactured and is no longer available. Questions regarding accessories, spare parts or successor models: Contact.

As German direct importer for crossbows of Great Lakes Crossbows we offer full technical service, many years of experience, complete spare parts in stock as well as qualified advice.

Recommended accessories

Technical specification

Type: Compound
Draw weight: 165 lbs; 75 kg
Powerstroke: 15,5 "; 39,4 cm
Teflon impregnated: yes
Dryfire protection: yes
Hollow machined track: yes
Number of limbs: 4
CNC machined riser: yes
Sight base included: yes
Axle to axle bow width (de-cocked): 26,8 "; 68 cm
Bowstring material: DynaFlight
Country: USA
Trigger safety: yes
Triggerweight: 3,5 lbs; 1,6 kg
Trigger safety autom: no
Withdrawal force: 736 N
Overall width (de-cocked): 28,8 "; 73,2 cm
Dampening system: yes
Loudness (tendency): very quiet
String and cablesystem: uniform
Total mass: 8,4 lbs; 3,8 kg
Specifics: Carbon Design technical features as crossbow Stinger camo

Manufacturer's information:
Darton Archery, 3540 Darton Rd. Hale, MI 48739, USA
dartonarchery.com

Responsible person:
AIA Pfeilsport GmbH, Schillerstr. 70, 16341 Panketal

E-Mail:
info@pfeilsport-gmbh.de

Arrow speed

Minimalarrow 460 grain (29,8 g):
Arrow speed
333 fps
101 m/s
Idealarrow 480 grain (31,1 g):
Arrow speed
330 fps
101 m/s
Arrow energy
E₀ 162 Joule
E₀ 119 ft-lb
Standardarrow 506 grain:
Arrow speed
327 fps
100 m/s

Matchin crossbowarrows

Arrow weight(s): 480 grain; 31,1 g
Shaft spline carbon: 2264
Shaft spline alu: 2219
Arrow length(s): 22 "; 55,9 cm
Min. arrow diameter: 8,73 mm; 0,3437 "

Range

max. adjustable range with scope and accessories (elevation scope mount):
Range
85 m
93 Yard
max. range standardvisor:
Range
150 m
164 Yard
