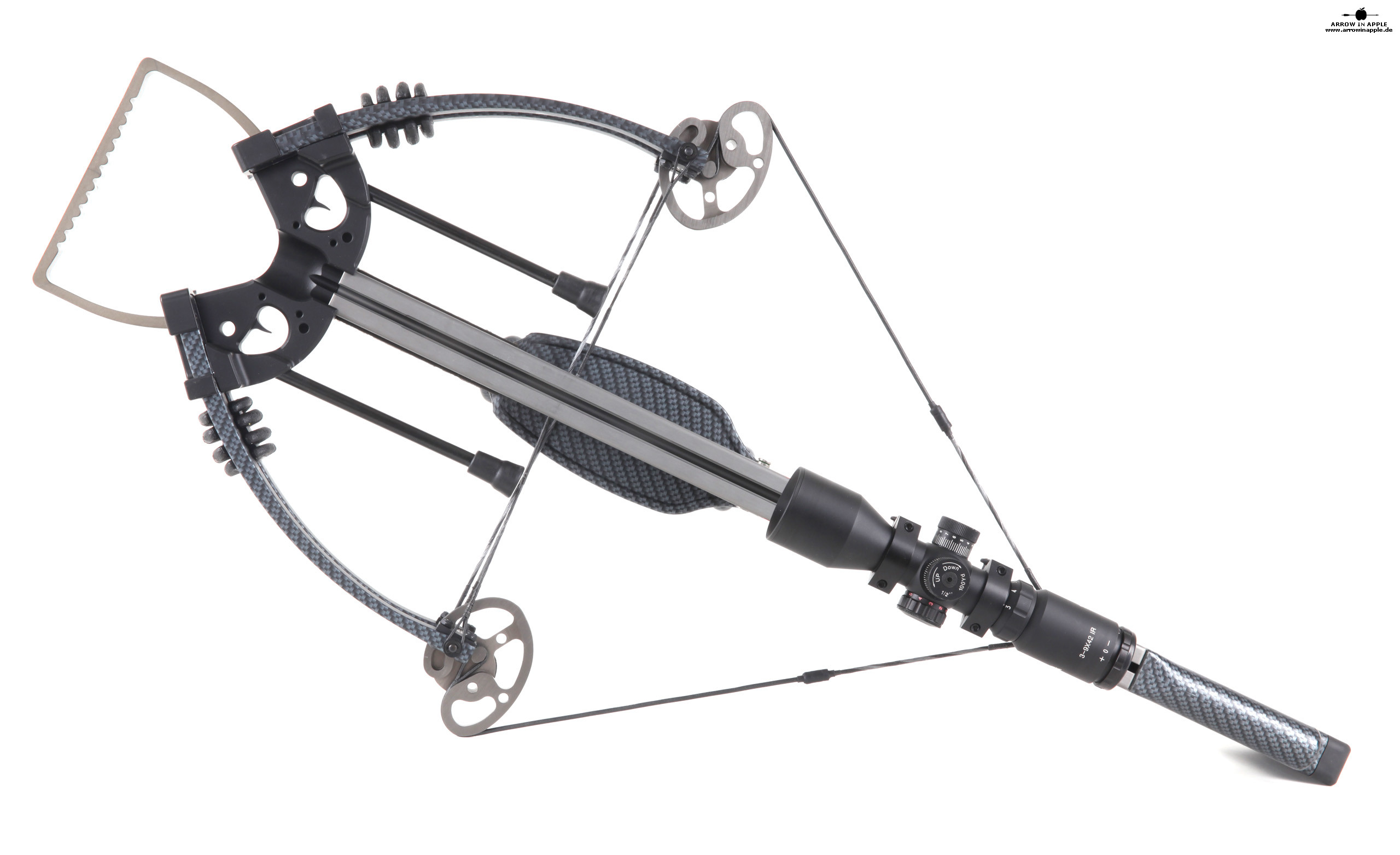

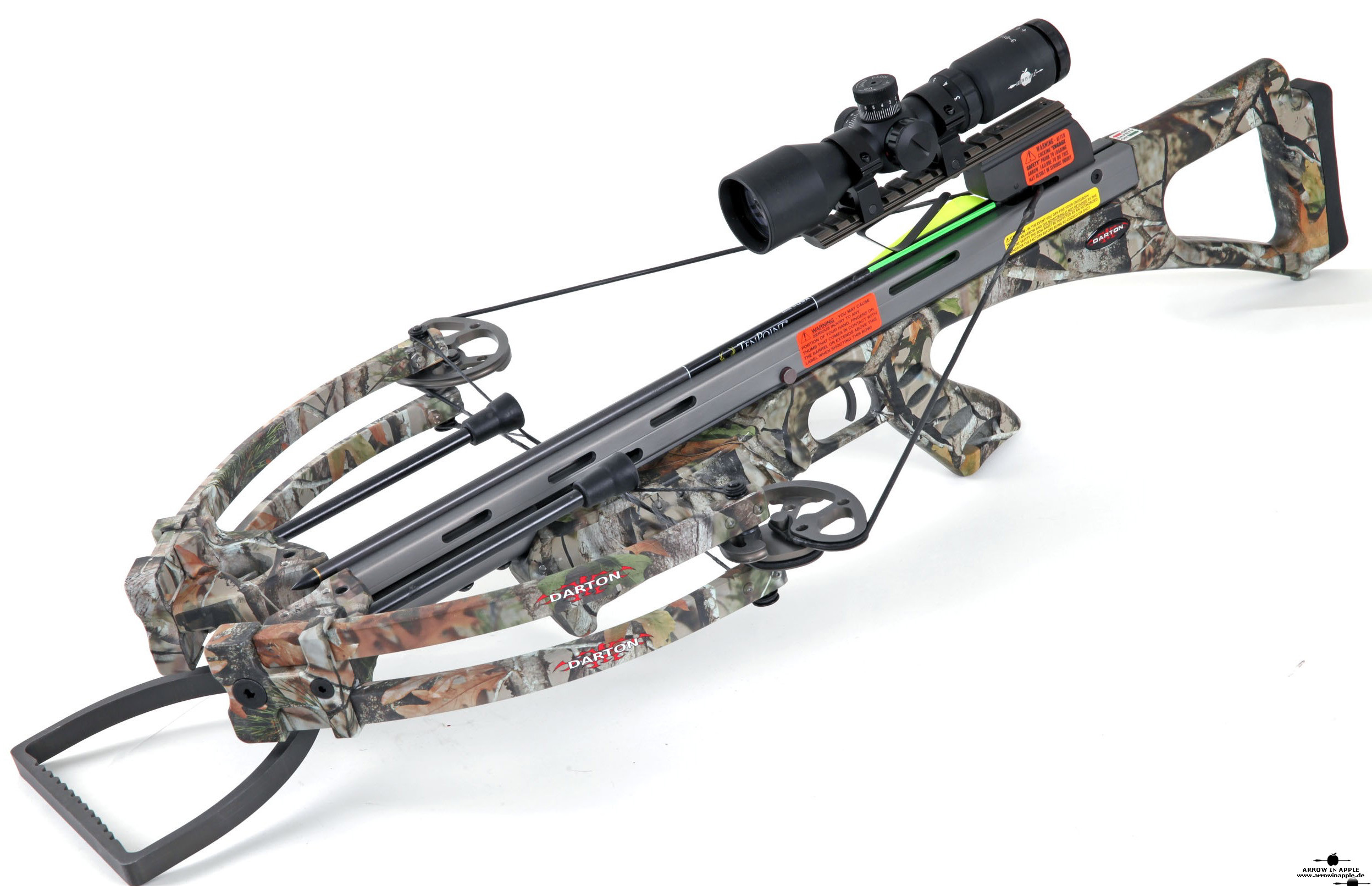

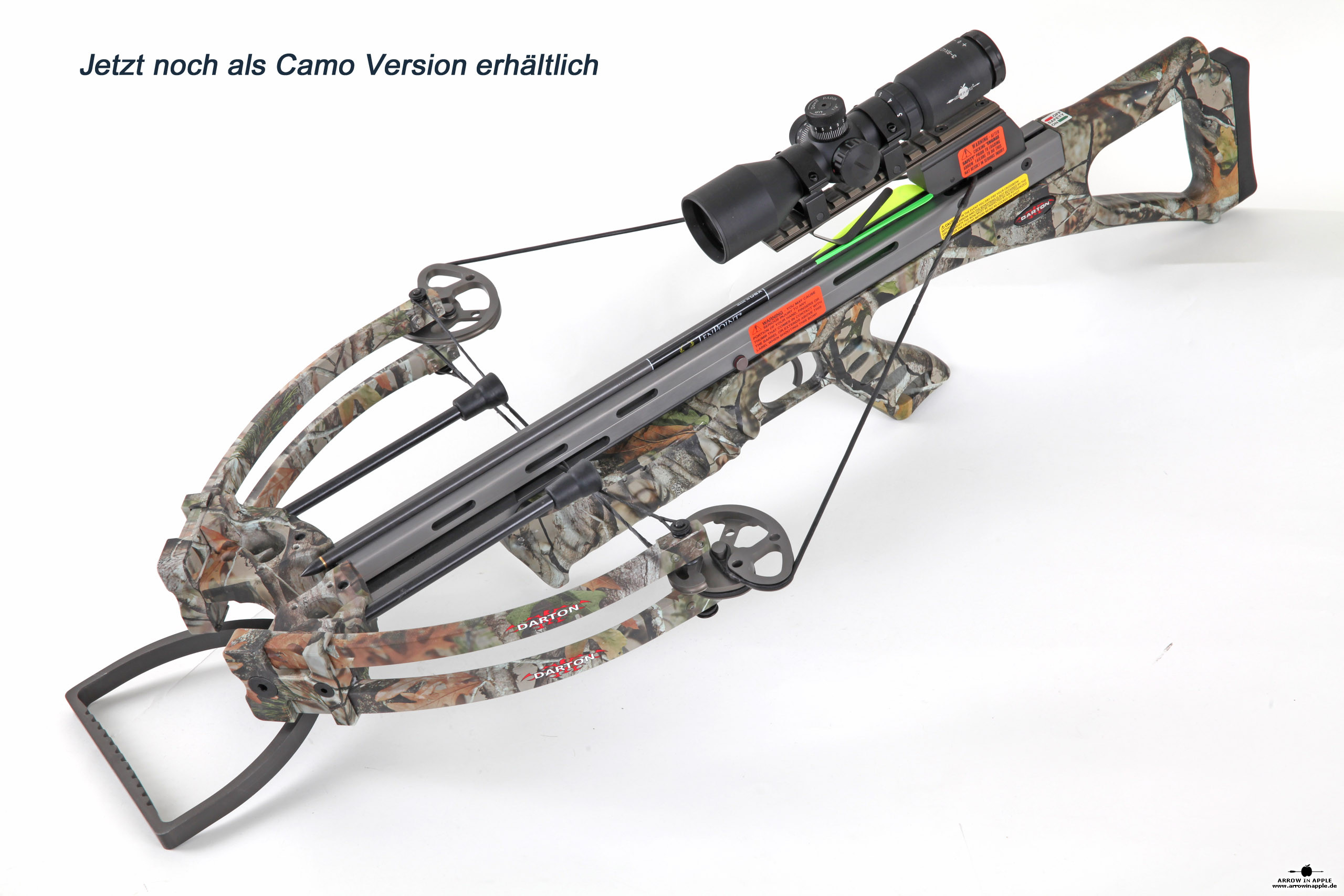

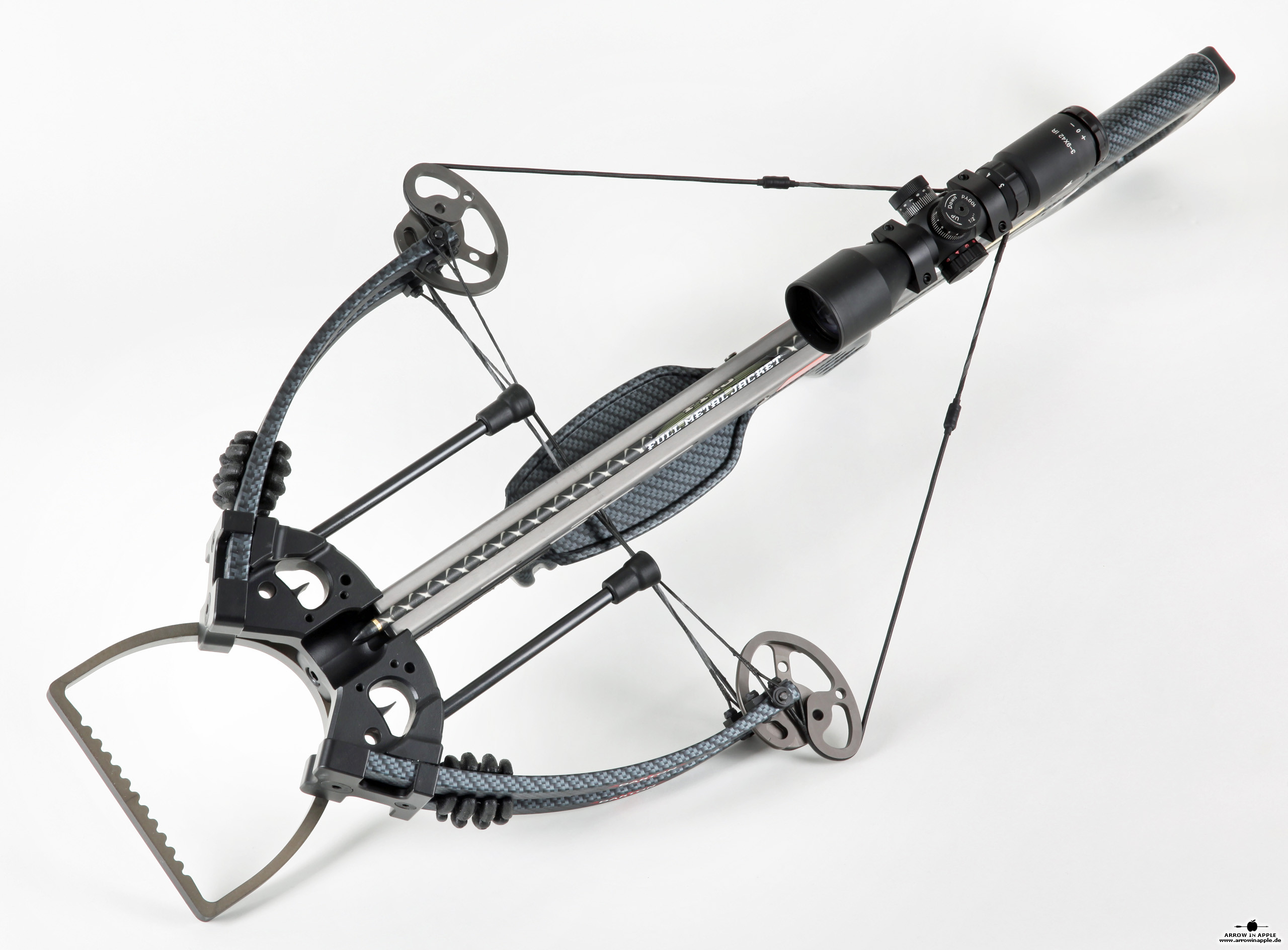

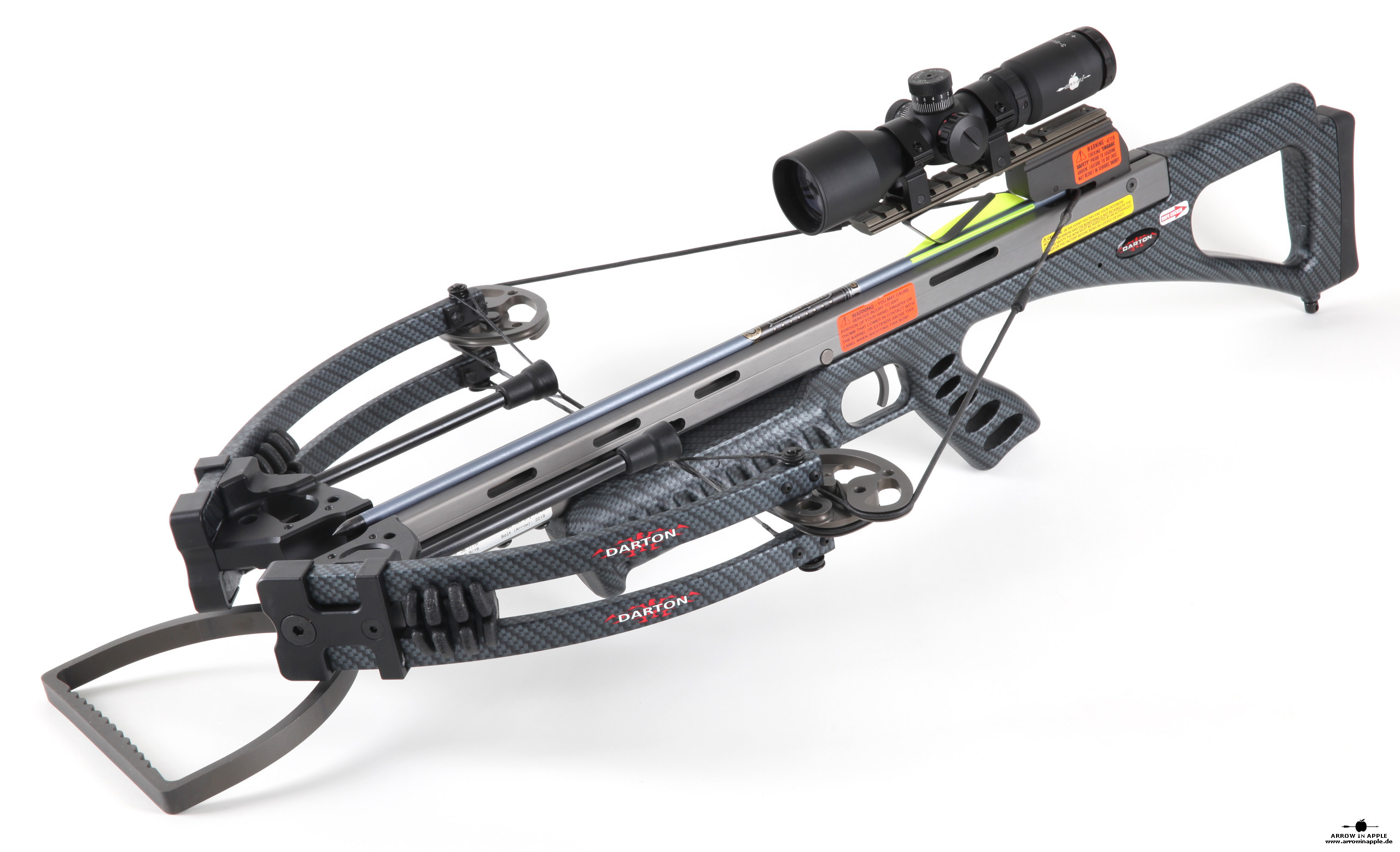

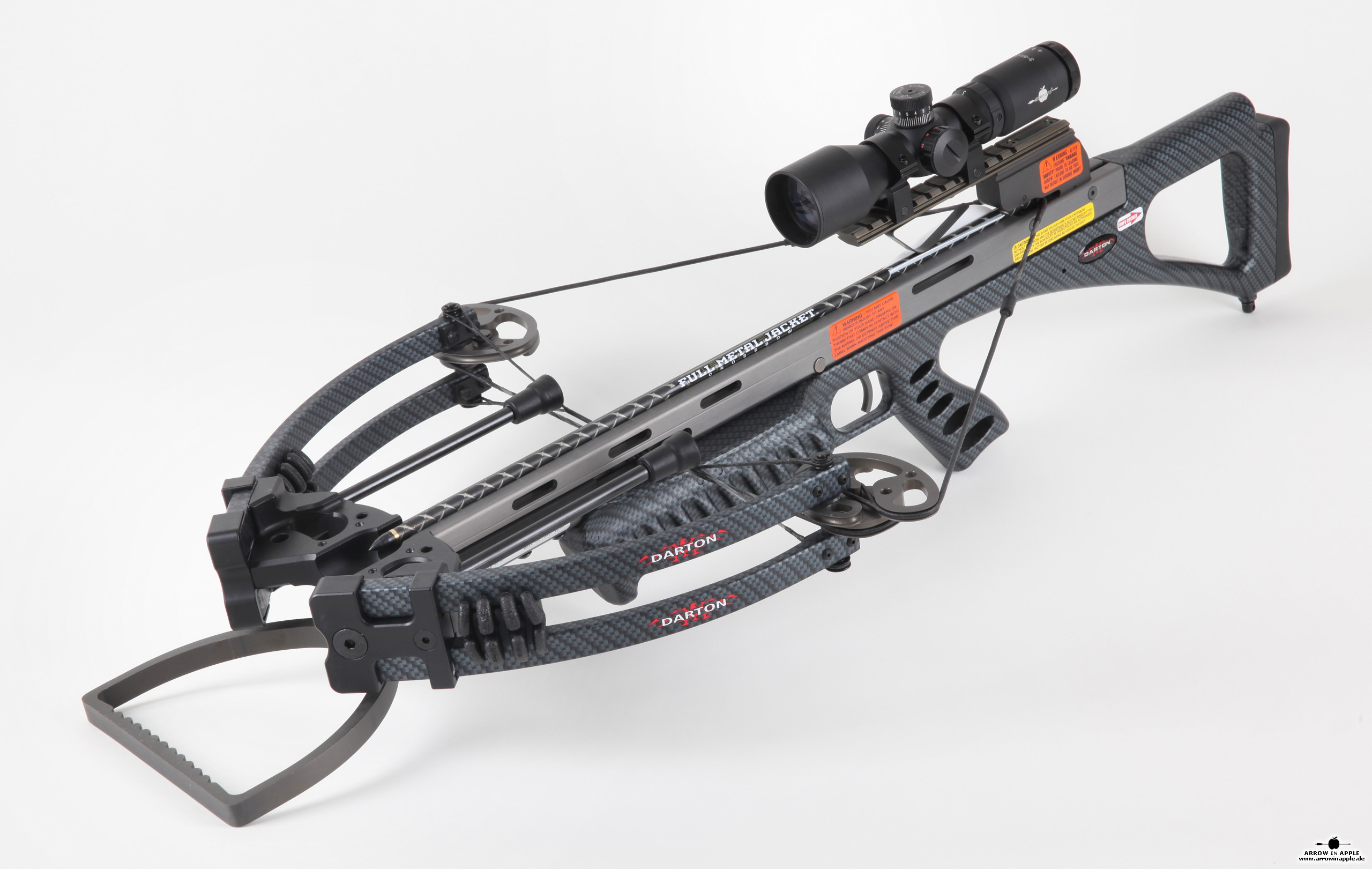

Darton Viper SS Xtreme

Manufacturer: Darton Archery

Alle Fotos

Prices and Packages

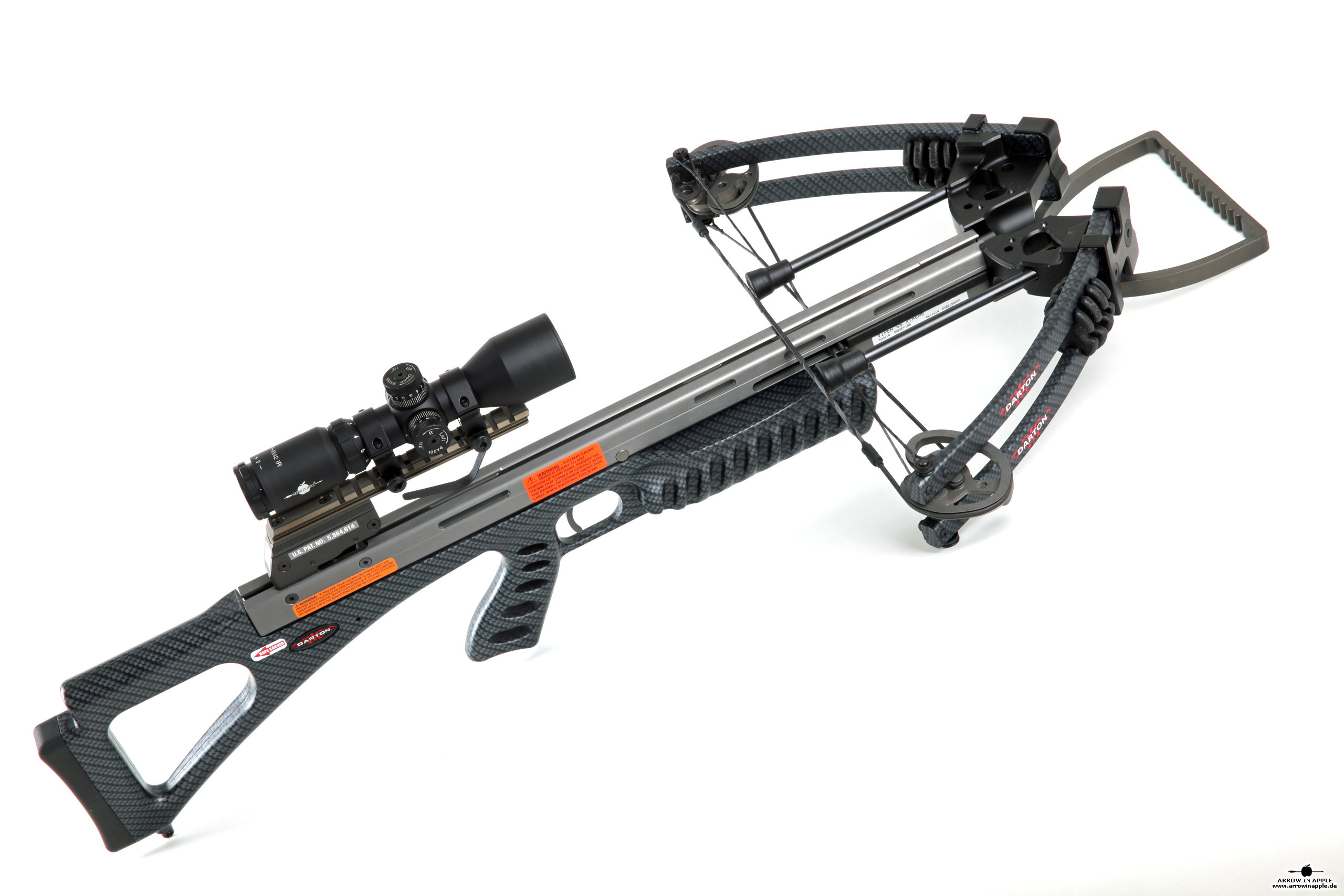

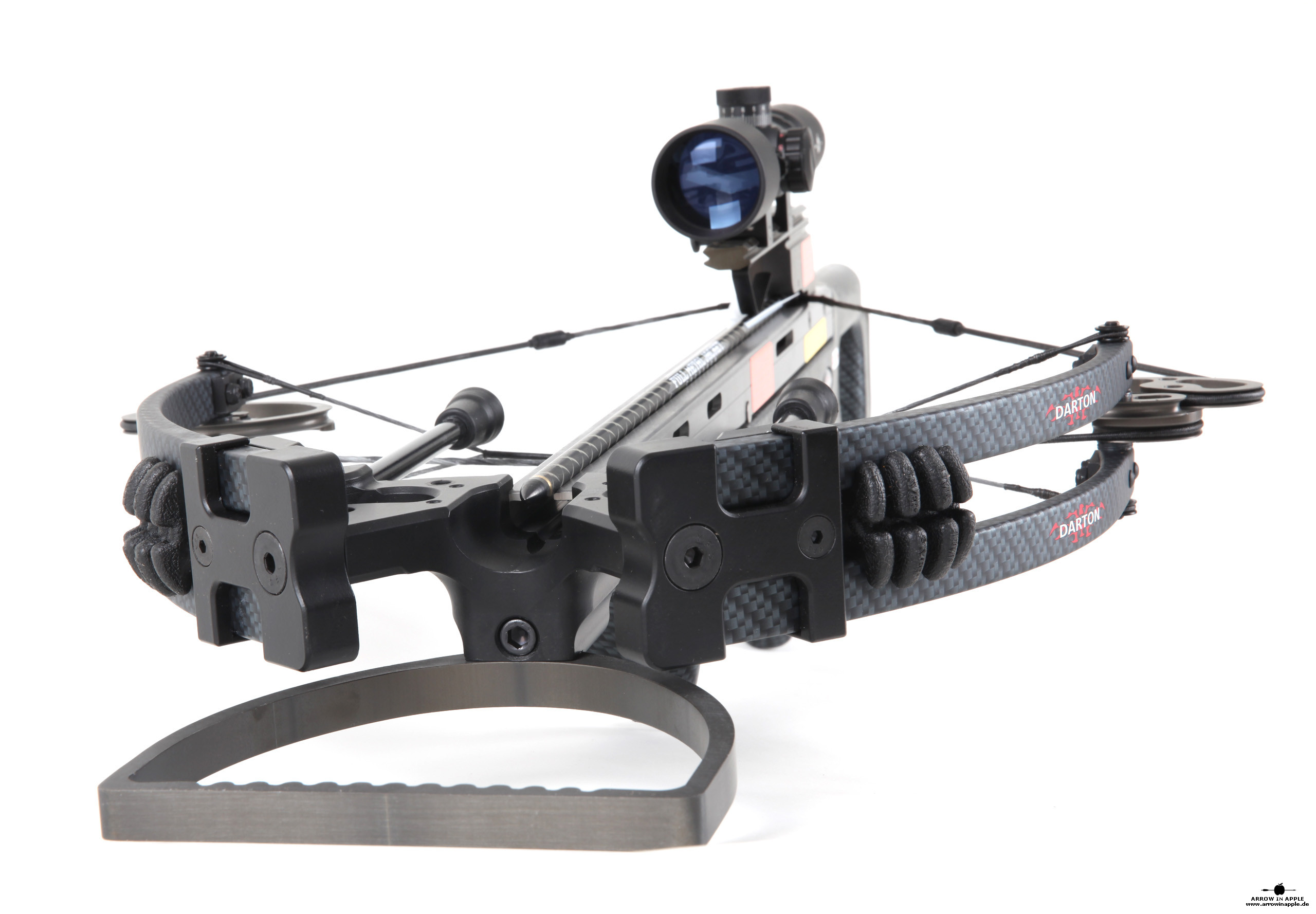

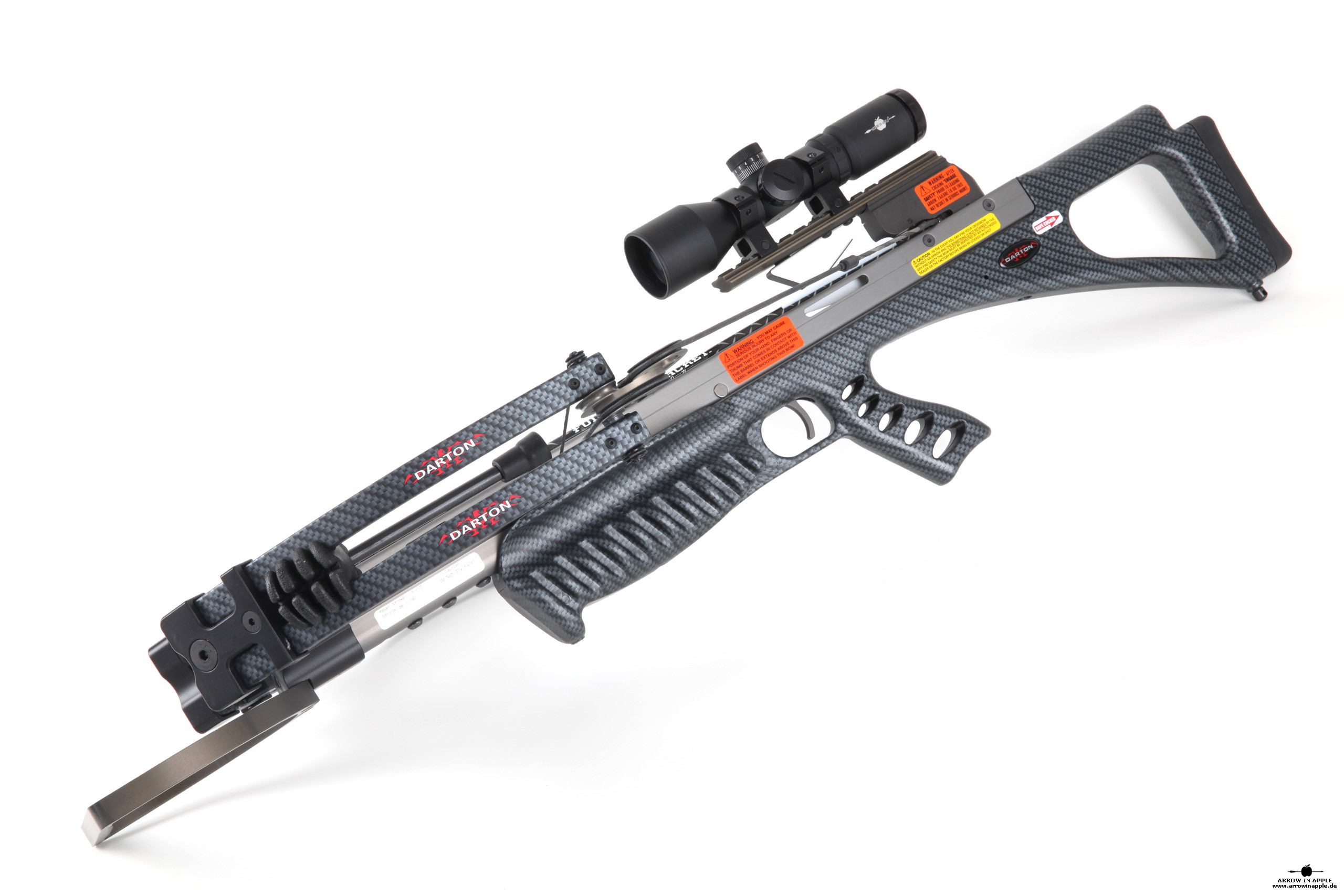

Viper SS Xtreme, Darton Archery

The Viper SS Xtreme will be provided with following:

3x arrows

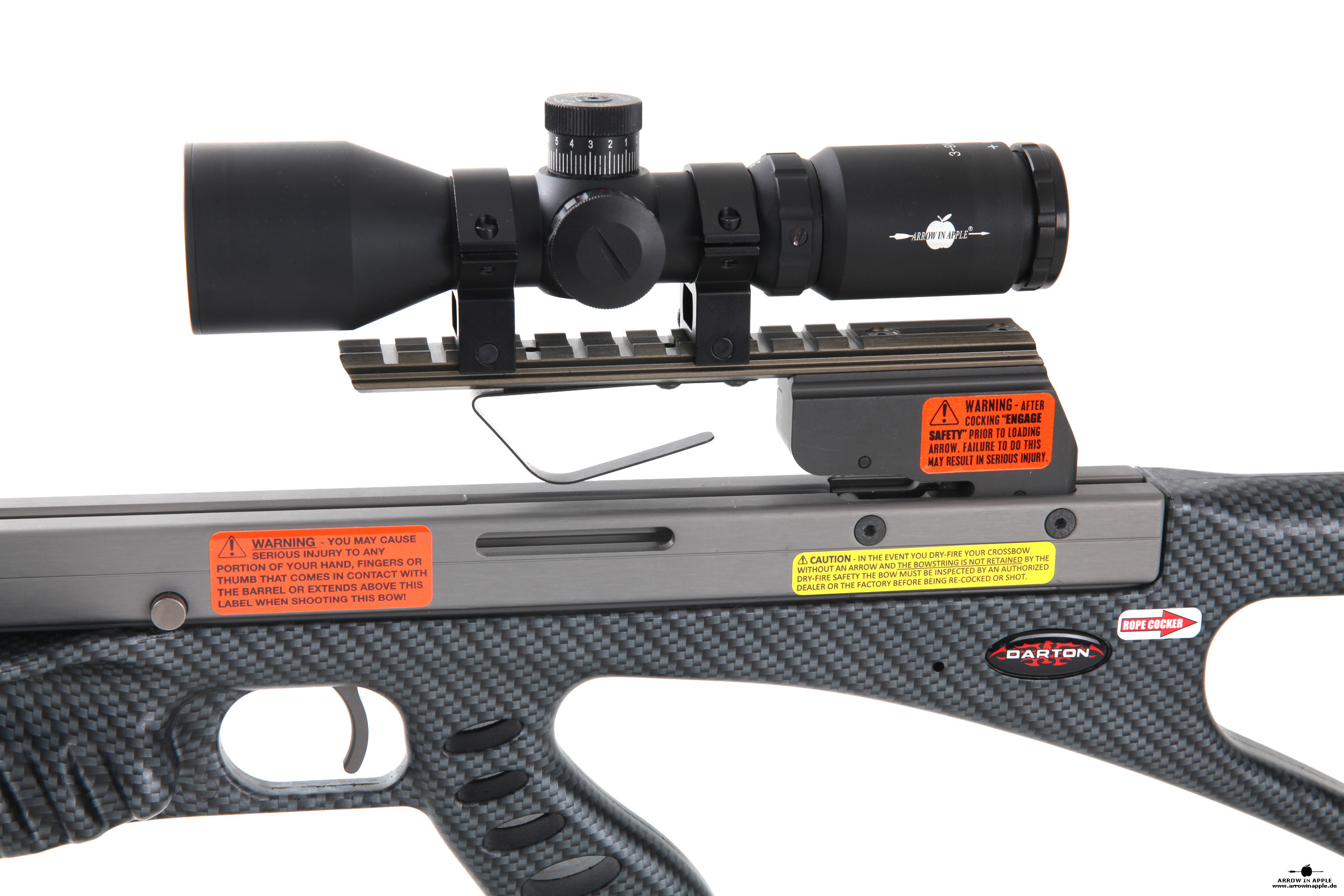

AIA FRS 100 tactical scope

Crossbow from our model archive.
This model is no longer manufactured and is no longer available. Questions regarding accessories, spare parts or successor models: Contact.

As German direct importer for crossbows of Darton Archery we offer full technical service, many years of experience, complete spare parts in stock as well as qualified advice.

Videos of the Viper SS Xtreme

Armbrust Darton Serpent ltd.

Recommended accessories

Technical specification

Type: Compound
Draw weight: 180 lbs; 82 kg
Powerstroke: 13,5 "; 34,3 cm
Teflon impregnated: yes
Dryfire protection: yes
Hollow machined track: yes
Number of limbs: 4
CNC machined riser: yes
Sight base included: yes
Length incl. stirrup: 36,2 "; 91,9 cm
Axle to axle bow width (de-cocked): 17,3 "; 43,9 cm
Bowstring material: DynaFlight
Country: USA
Trigger safety: yes
Triggerweight: 2,8 lbs; 1,2 kg
Trigger safety autom: no
Overall width (de-cocked): 20 "; 50,8 cm
Dampening system: yes
Length without stirrup: 33,1 "; 84 cm
Loudness (tendency): very quiet ++
Triggersystem: nach oben öffnend
String and cablesystem: uniform
Total mass: 7,4 lbs; 3,4 kg

Manufacturer's information:
Darton Archery, 3540 Darton Rd. Hale, MI 48739, USA
dartonarchery.com

Responsible person:
AIA Pfeilsport GmbH, Schillerstr. 70, 16341 Panketal

E-Mail: info@pfeilsport-gmbh.de

Arrow speed

Minimalarrow 392 grain (25,4 g):
Arrow speed
370 fps
113 m/s
Arrow energy
E₀ 159 Joule
E₀ 117 ft-lb
Idealarrow 447 grain (29 g):
Arrow speed
350 fps
107 m/s
Arrow energy
E₀ 165 Joule
E₀ 122 ft-lb
Standardarrow 506 grain:
Arrow speed
333 fps
101 m/s

Matchin crossbowarrows

Arrow weight(s): 447 grain; 29 g
Shaft spline carbon: 2264
Shaft spline alu: 2219
2216
Arrow length(s): 22 "
20 "; 55,9 cm
50,8 cm
Min. arrow diameter: 8,7 mm; 0,3425 "

Range

max. adjustable range with scope and accessories (elevation scope mount):
Range
150 m
164 Yard
max. range standardvisor:
Range
100 m
109 Yard
