Relayer - limited Edition

Prices and Packages

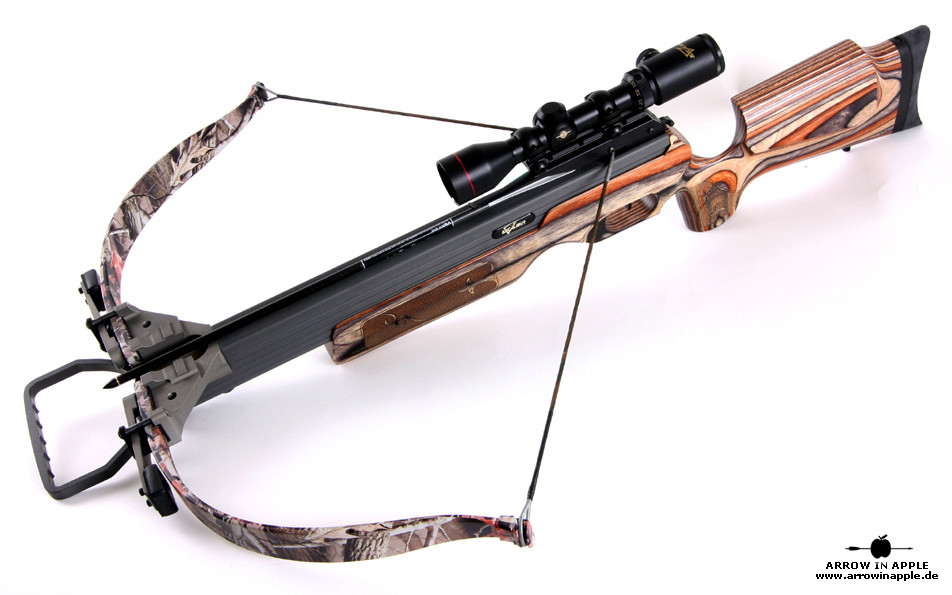

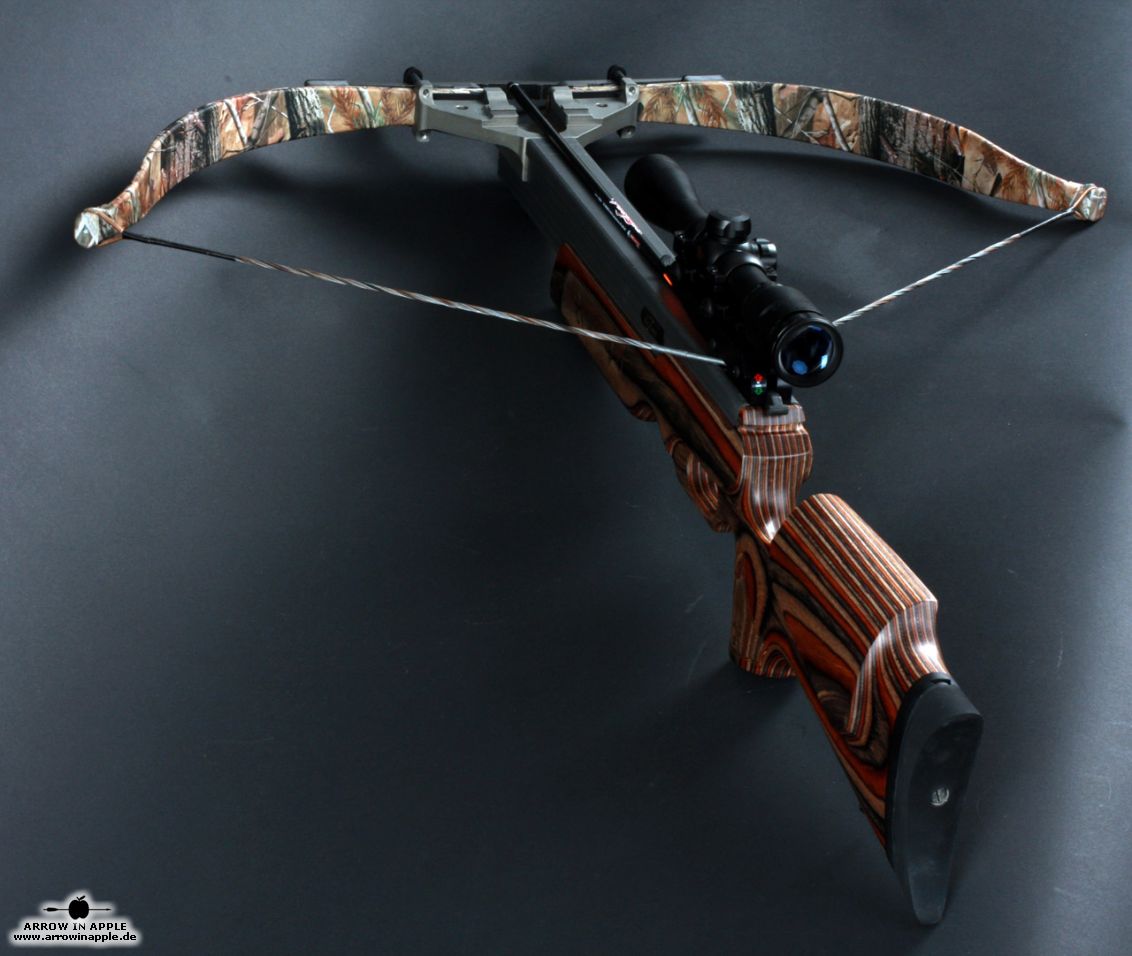

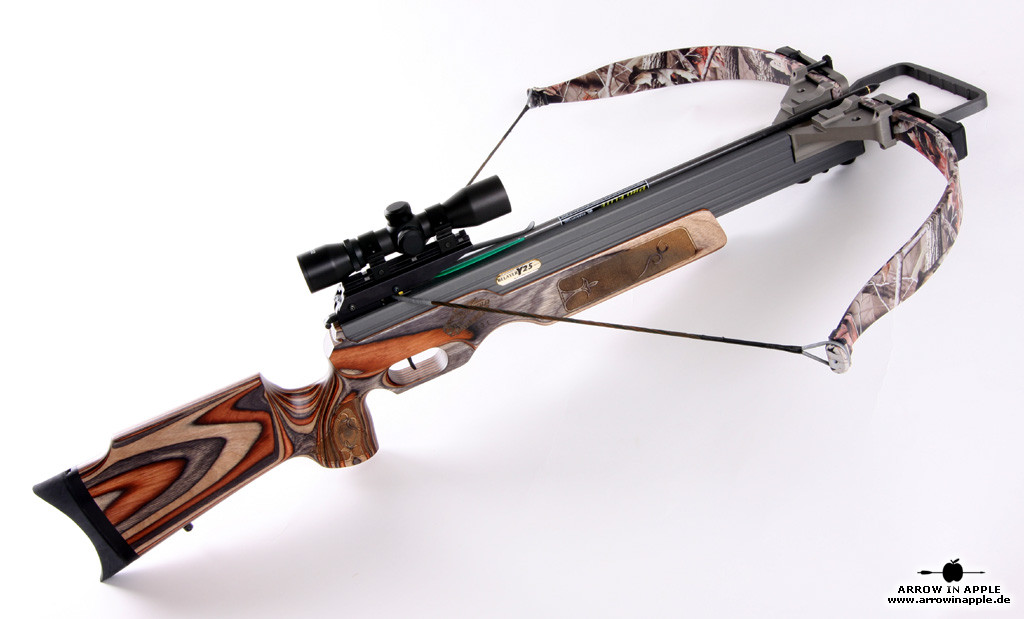

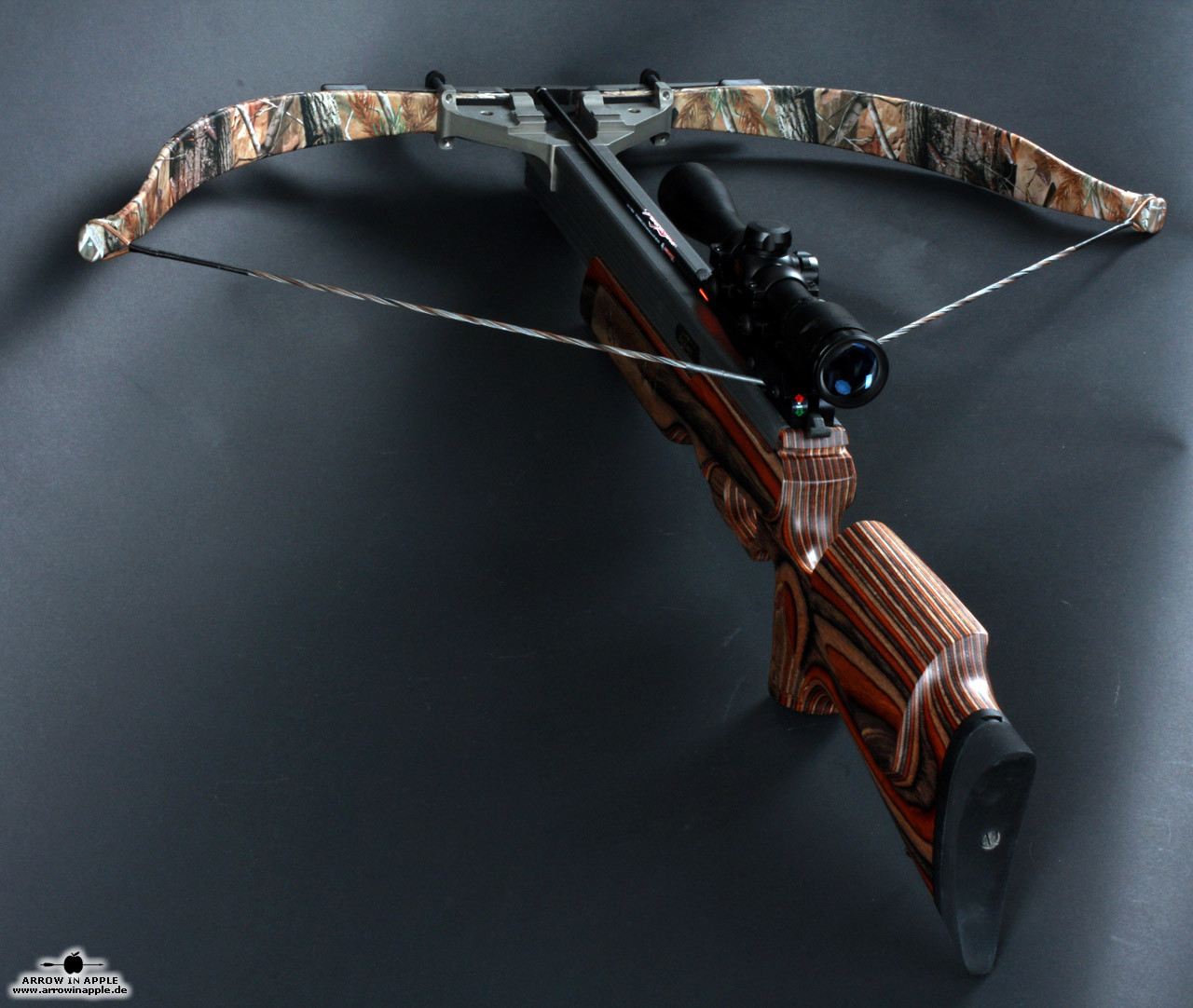

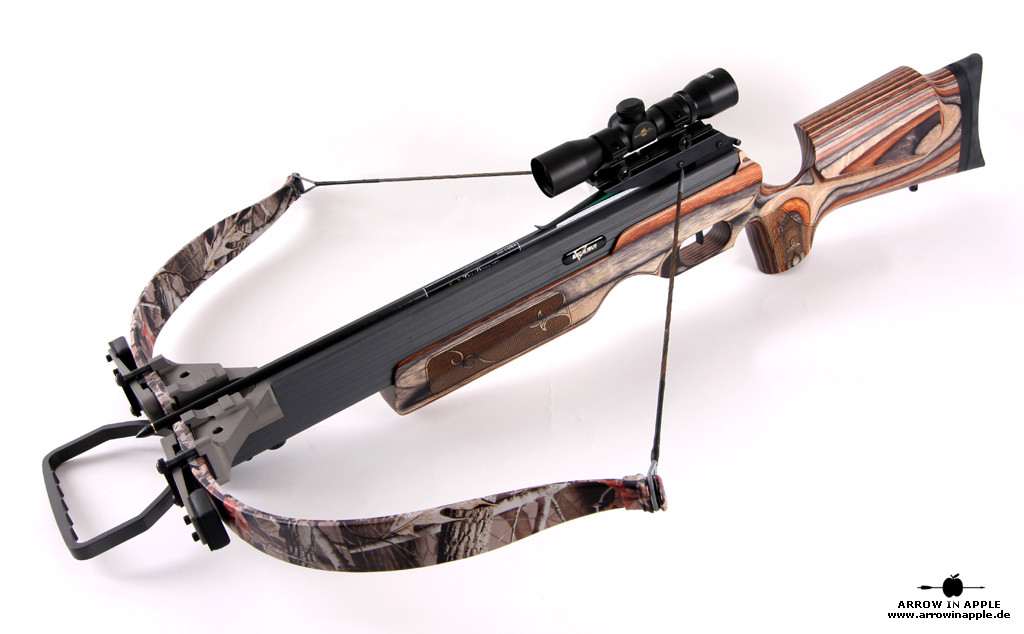

Relayer - limited Edition, Excalibur Crossbow Inc

The Relayer - limited Edition will be provided with following:

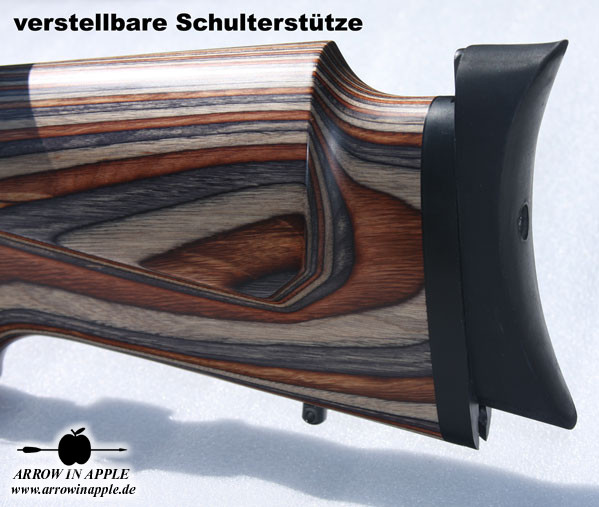

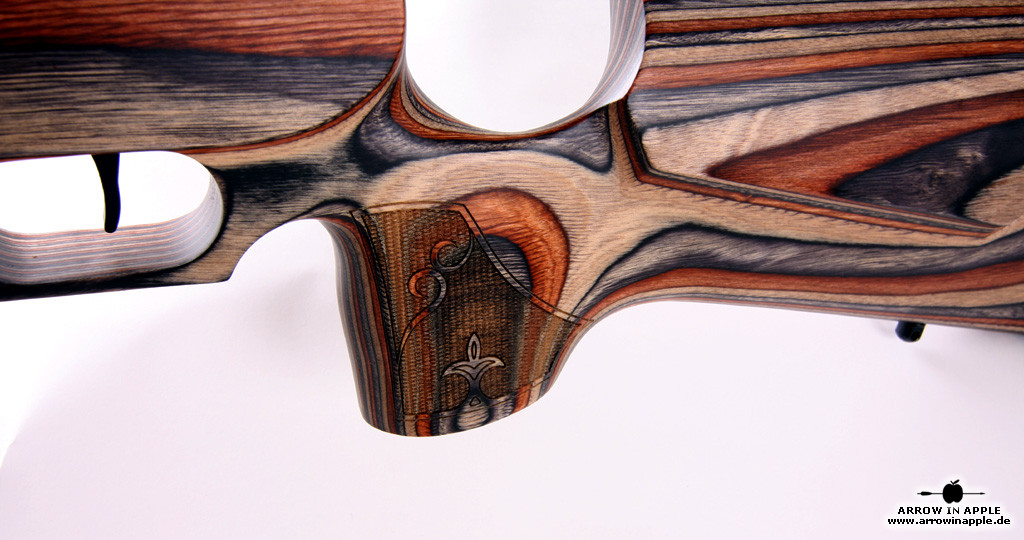

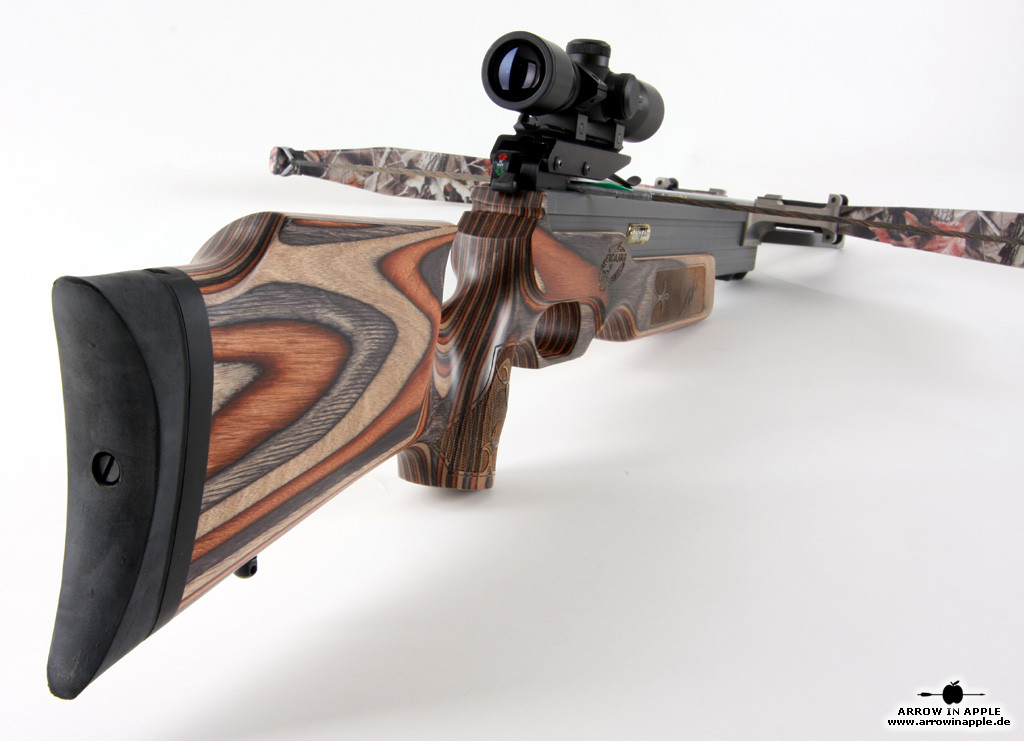

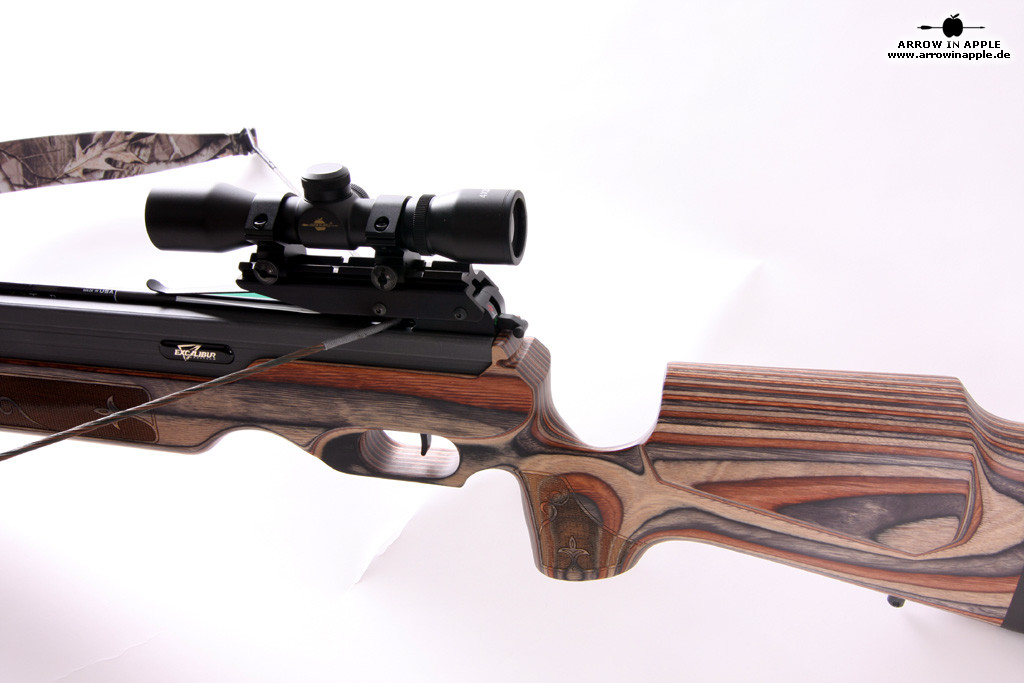

  • high, elaborate quality laminated wood stock
  • base cap - 25 years Excalibur
  • Dissipatorbars (dampening system)
  • Excel string
  • Manual, DVD
Crossbow from our model archive.
This model is no longer manufactured and is no longer available. Questions regarding accessories, spare parts or successor models: Contact or use leaflet.
Der Merkzettel kann als unverbindliche Anfrage gesendet werden.
As German direct importer for crossbows of Excalibur we offer full technical service, many years of experience, complete spare parts in stock as well as qualified advice.

Our impression

For your savety: We offer only original Excalibur accessories as, t- handle cocking aid, stringer, strings, quiver, scope mount and so on. You can find it out on the original packing or the the Excalibur lable on the products.

Technical specification

Name
Relayer - limited Edition
Manufacturer
Excalibur Crossbow Inc
Type (Compound/Recurve)
Recurve
Draw weight
200 lbs
Weight
-
Powerstroke
15,5 Inch
Teflon impregnated
No
Dryfire protection
No
Hollow machined track
No
Number of limbs
2
CNC machined riser
Yes
Sight base included
No
Length incl. stirrup
-
Bowstring material
FastFlight
Country
CAN
Trigger safety
Yes
Triggerweight
3,8 lbs
Trigger safety autom
No
Withdrawal force
-
Overall width
36,6 Inch
Dampening system
Yes
Length without stirrup
-
Loudness (tendency)
weniger leise
Triggersystem
nach oben öffnend
String and cablesystem
uniform
Total mass
-
Specifics

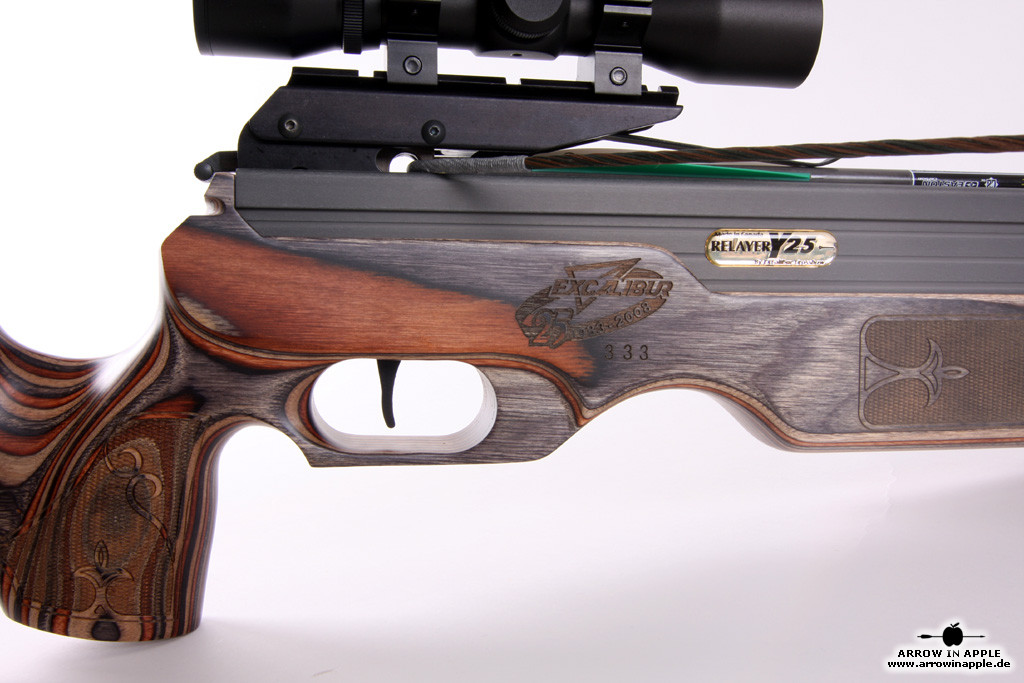

Limited Edditon - Excalibur is 25 Years old - ONE OF 1000

Arrow speed

  • Minimalarrow (350 grain):
    Arrow speed
    99 m/s
    356,4 km/h
    326 fps
    Arrow energy
    -
    -
  • Idealarrow (420 grain):
    Arrow speed
    94 m/s
    338,4 km/h
    308 fps
    Arrow Energy
    123 Joule E0
    91 ft. lbs
  • Standardarrow (506 grain):
    Arrow speed
    88 m/s
    316,8 km/h
    291 fps
    Arrow Energy
    -
    -

Matchin crossbowarrows

Arrow weight
420 grain
Shaft spline carbon
2264
Shaft spline alu
2219/ 16
Arrow length
20 Inches
min. arrow diameter
8,73 mm

Range

  • max. adjustable range with scope and accessories (elevation scope mount):
    Range
    110 yard
  • max. range standardvisor:
    Range
    66 yard
