Darton Scorpion

Manufacturer: Darton Archery

Alle Fotos

Prices and Packages

Scorpion, Darton Archery

The Scorpion will be provided with following:

String dampening system
Dry fire savety system
Autom. trigger savety
WickedRidge rope cocker
3x Arrows

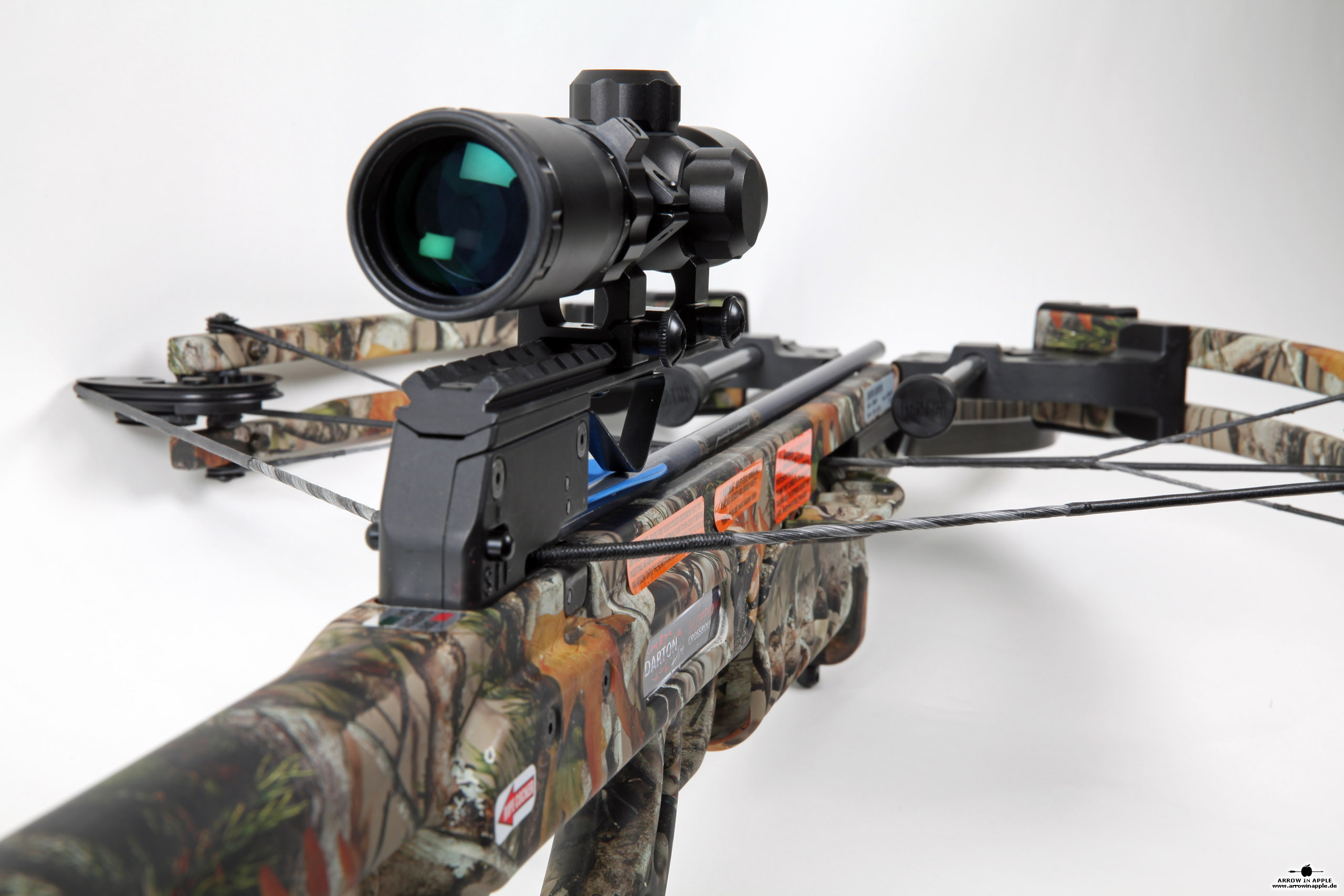

Weaver scope mount

Crossbow from our model archive.
This model is no longer manufactured and is no longer available. Questions regarding accessories, spare parts or successor models: Contact.

Delivery time: 1-3 working days.

As German direct importer for crossbows of Darton Archery we offer full technical service, many years of experience, complete spare parts in stock as well as qualified advice.

Recommended accessories

Technical specification

Type: Compound
Draw weight: 170 lbs; 77 kg
Powerstroke: 13 "; 33 cm
Teflon impregnated: no
Dryfire protection: yes
Hollow machined track: yes
Number of limbs: 4
CNC machined riser: yes
Sight base included: yes
Length incl. stirrup: 35,5 "; 90,2 cm
Axle to axle bow width (de-cocked): 20 "; 50,8 cm
Bowstring material: DynaFlight
Country: USA
Trigger safety: yes
Triggerweight: 3,1 lbs; 1,4 kg
Trigger safety autom: yes
Overall width (de-cocked): 21,6 "; 54,9 cm
Dampening system: yes
Loudness (tendency): very quiet
Triggersystem: nach unten öffnend
String and cablesystem: uniform
Total mass: 8,7 lbs; 3,9 kg

Manufacturer's information:
Darton Archery, 3540 Darton Rd. Hale, MI 48739, USA
dartonarchery.com

Responsible person:
AIA Pfeilsport GmbH, Schillerstr. 70, 16341 Panketal

E-Mail:
info@pfeilsport-gmbh.de

Arrow speed

Minimalarrow 400 grain (25,9 g):
Arrow speed
335 fps
102 m/s
Arrow energy
E₀ 131 Joule
E₀ 96 ft-lb
Idealarrow 435 grain (28,2 g):
Arrow speed
330 fps
101 m/s
Arrow energy
E₀ 142 Joule
E₀ 105 ft-lb
Standardarrow 506 grain:
Arrow speed
315 fps
96 m/s
Arrow energy
E₀ 151 Joule
E₀ 111 ft-lb

Matchin crossbowarrows

Arrow weight(s): 435 grain; 28,2 g
Shaft spline carbon: 2264
Shaft spline alu: 2219
2216
Arrow length(s): 22 "
20 "; 55,9 cm
50,8 cm
Min. arrow diameter: 8,7 mm; 0,3425 "

Range

max. adjustable range with scope and accessories (elevation scope mount):
Range
150 m
164 Yard
max. range standardvisor:
Range
150 m
164 Yard
