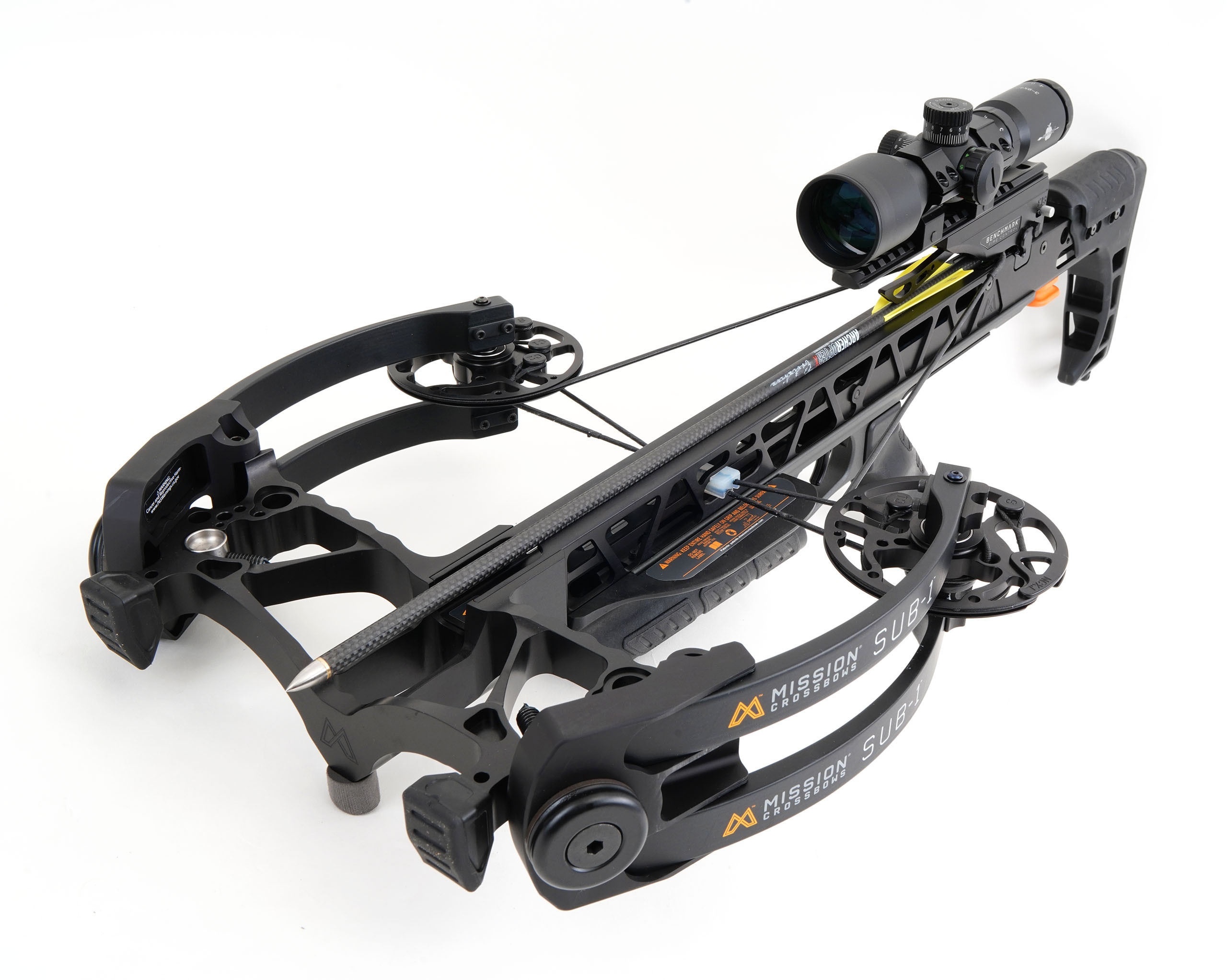

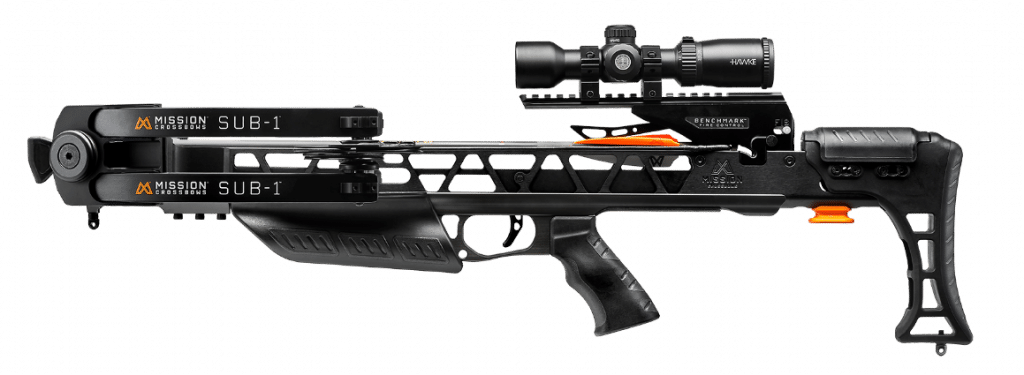

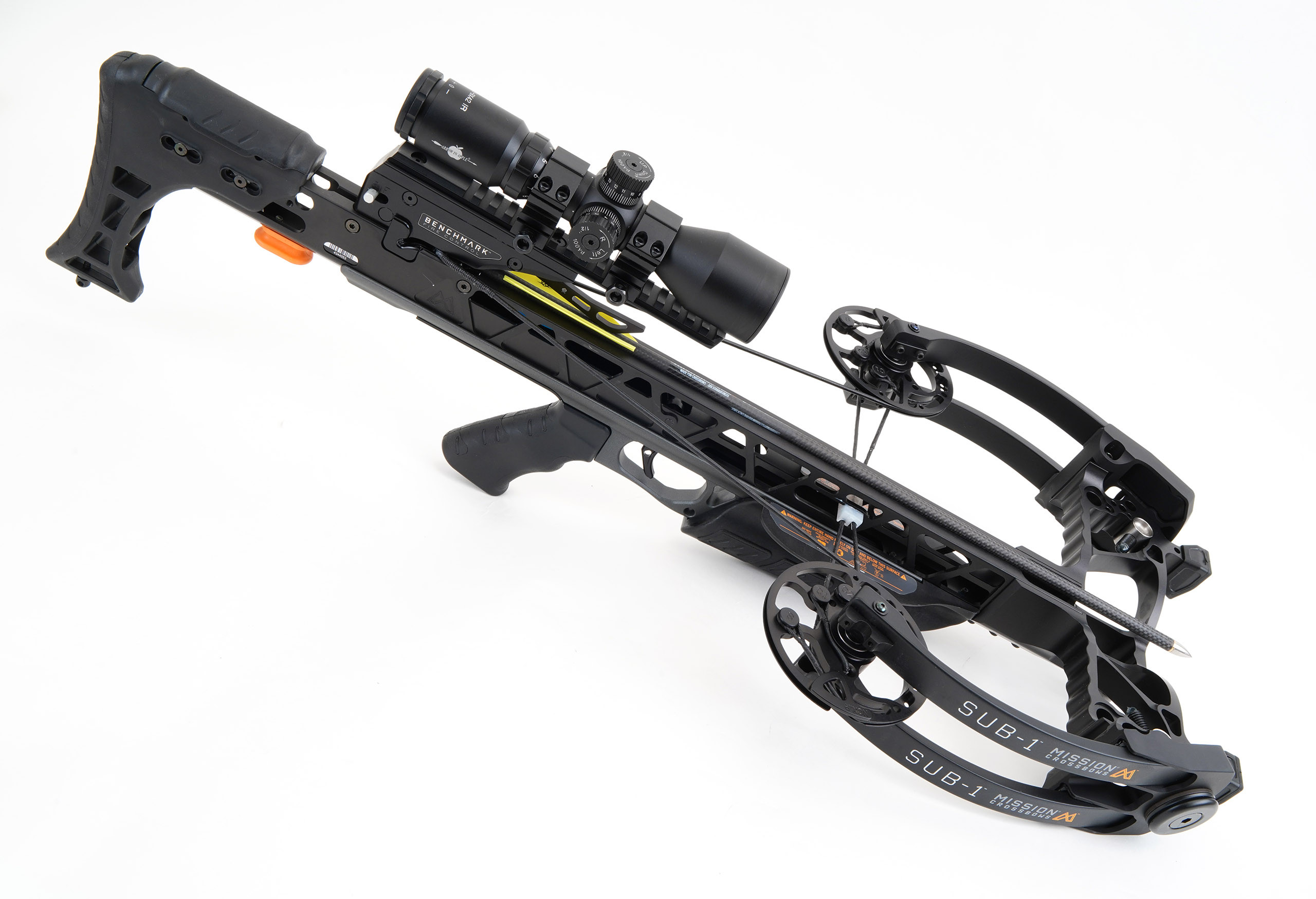

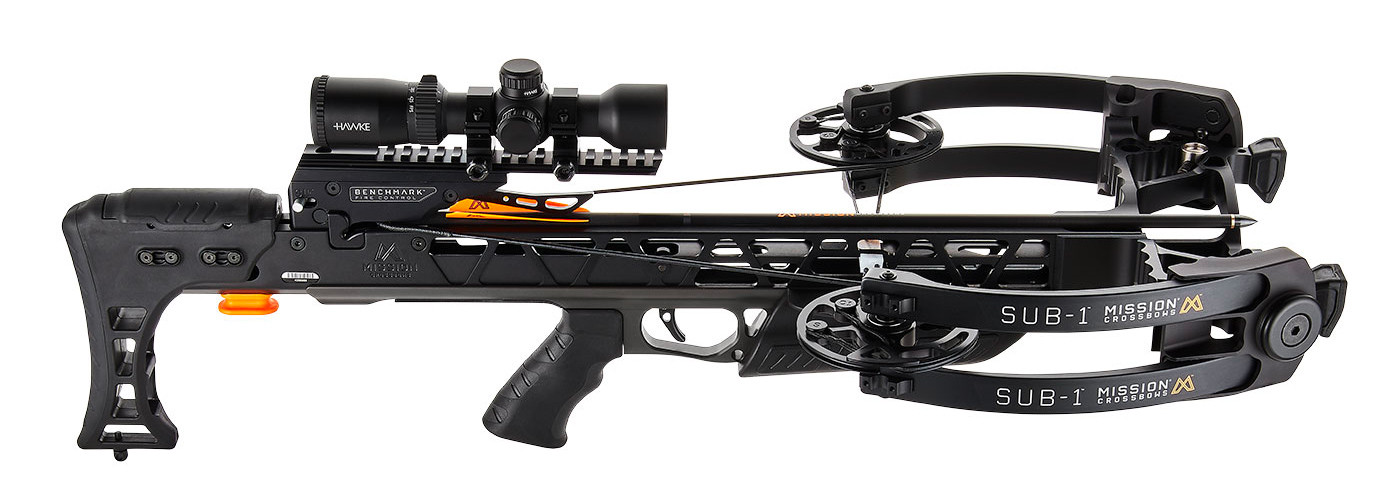

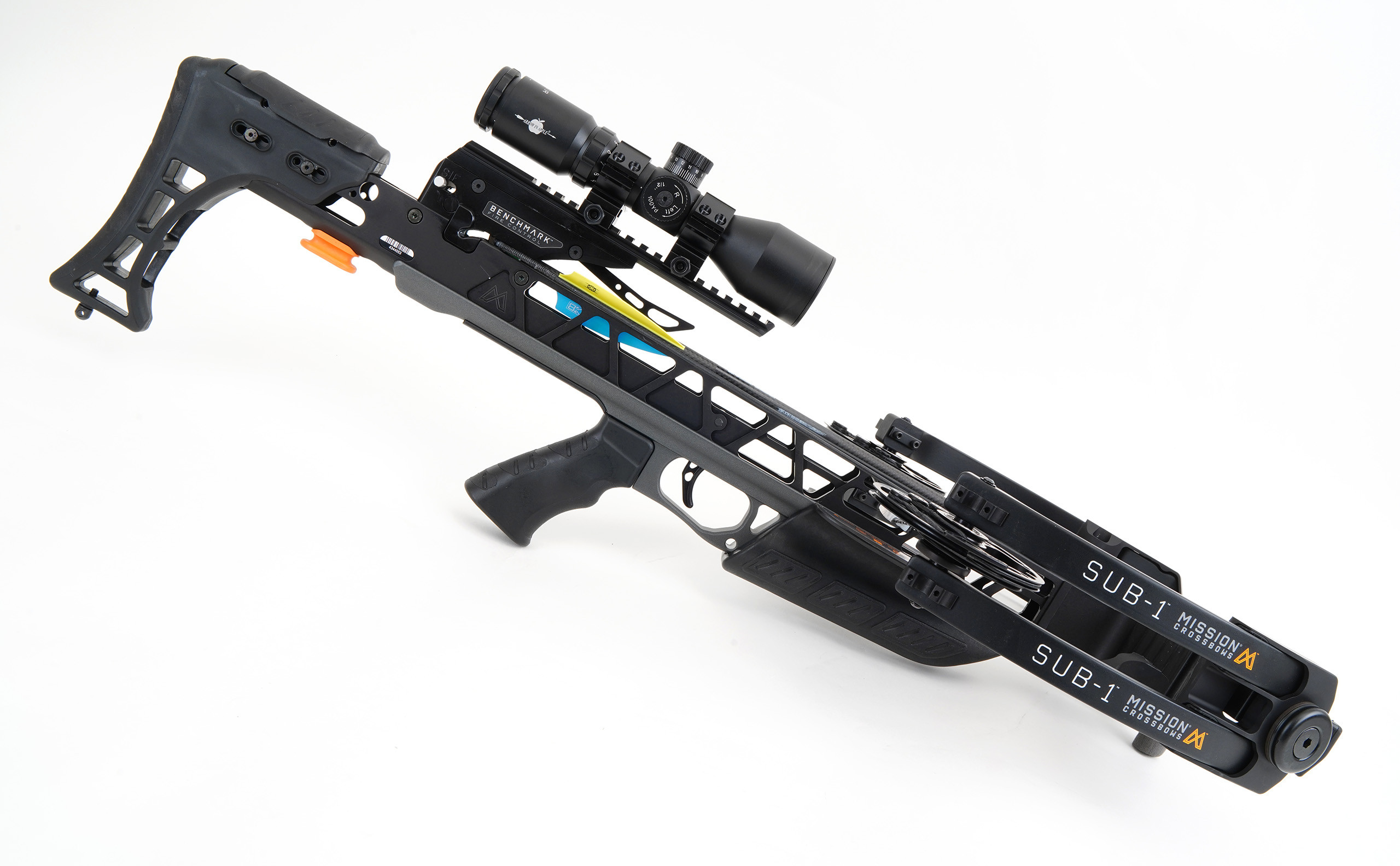

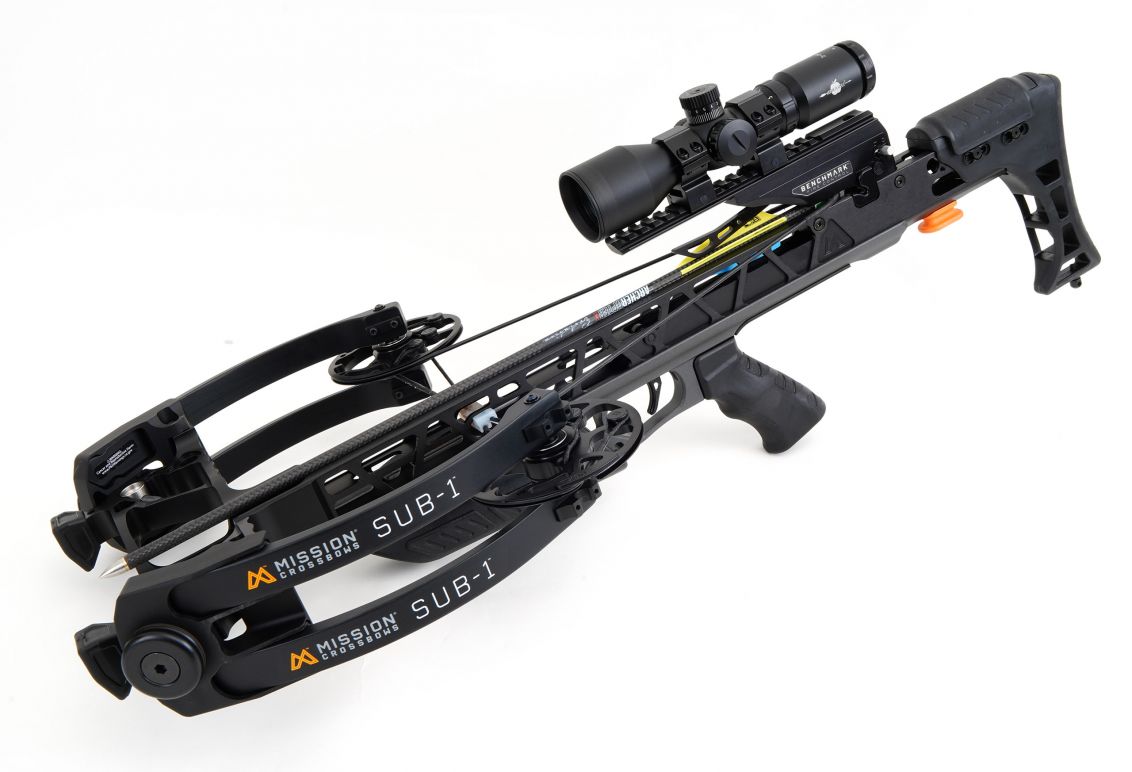

Mission SUB-1 Black

Name: Mission SUB-1 Black
Brand: Mission Crossbows

Manufacturer: Mission Crossbows

As German direct importer for crossbows of Mission Crossbows we offer full technical service, many years of experience, complete spare parts in stock as well as qualified advice.

Prices and Packages

SUB-1 Black, Mission Crossbows

The SUB-1 Black will be provided with following:

SUB-1 Black
3x 19" Mission Premium Bolt, 3.4" Vanes, .001, Alu Insert, Half Moon Alu (250 grain)
Mission M Quiver (3-arrow)
Mission Rail Lube
Mission Crossbow Soft Case
Mission Cocking Aid (Rope)
Select package:
Package Deal 1 ("Pro Kit") includes additionally:
1x Hawke XB-1 1.5-5 X 32 SR Etched Reticle
Currently out of stock.
Package Deal 2 includes additionally:
1x AIA FlexRange - FRS 101-12 (incl. Scope Rings)
Currently out of stock.

Currently out of stock.
Currently not orderable. Ask us about the reasons and/or alternatives: Contact.

Information about ordering, payment and shipping

more models

Variants of this crossbow

SUB-1 Realtree Edge In stock. Ready to ship. from 1.498,00€

Videos of the SUB-1 Black

SUB-1 Product Video - Mission Crossbows

Mission Crossbows - Sub-1 Product Overview

Benchmark Fire Control De-cocking: SUB-1

We Claimed It, They Proved It - Most Accurate Crossbow: Mission SUB-1

Stretching it out with Mission Crossbows SUB-1

Recommended accessories

Technical specification

Type: Compound
Powerstroke: 13,8 "; 34,9 cm
Teflon impregnated: no
Dryfire protection: yes
Hollow machined track: no
Number of limbs: 4
CNC machined riser: yes
Sight base included: yes
Length incl. stirrup: 33 "; 83,8 cm
Axle to axle bow width (de-cocked): 10,7 "; 27,2 cm
Bowstring material: DynaFlight
Country: USA
Trigger safety: yes
Triggerweight: 3 lbs; 1,4 kg
Trigger safety autom: yes
Dampening system: yes
Length without stirrup: 30,7 "; 78 cm
Loudness (tendency): very quiet ++
Triggersystem: nach unten öffnend
String and cablesystem: uniform
Total mass: 7,5 lbs; 3,4 kg

Manufacturer's information:
Mission Crossbows, 919 River Road, Sparta, WI 54656, USA
support@missioncrossbows.com

Responsible person:
AIA Pfeilsport GmbH, Schillerstr. 70, 16341 Panketal

E-Mail:
info@pfeilsport-gmbh.de

Arrow speed

Minimalarrow 400 grain (25,9 g):
Arrow speed
385 fps
117 m/s
Arrow energy
E₀ 178 Joule
E₀ 131 ft-lb
Idealarrow 425 grain (27,5 g):
Arrow speed
350 fps
107 m/s
Arrow energy
E₀ 157 Joule
E₀ 116 ft-lb
Standardarrow 506 grain:
-

Matchin crossbowarrows

Arrow weight (optimum): 425 grain; 27,5 g
Shaft spline carbon: 2264
Shaft spline alu: --
Arrow Length (optimum): 19 "; 48,3 cm
Min. arrow diameter: 8,7 mm; 0,3425 "

Range

max. adjustable range with scope and accessories (elevation scope mount):
Range
160 m
175 Yard
max. range standardvisor:
Range
70 m
77 Yard
