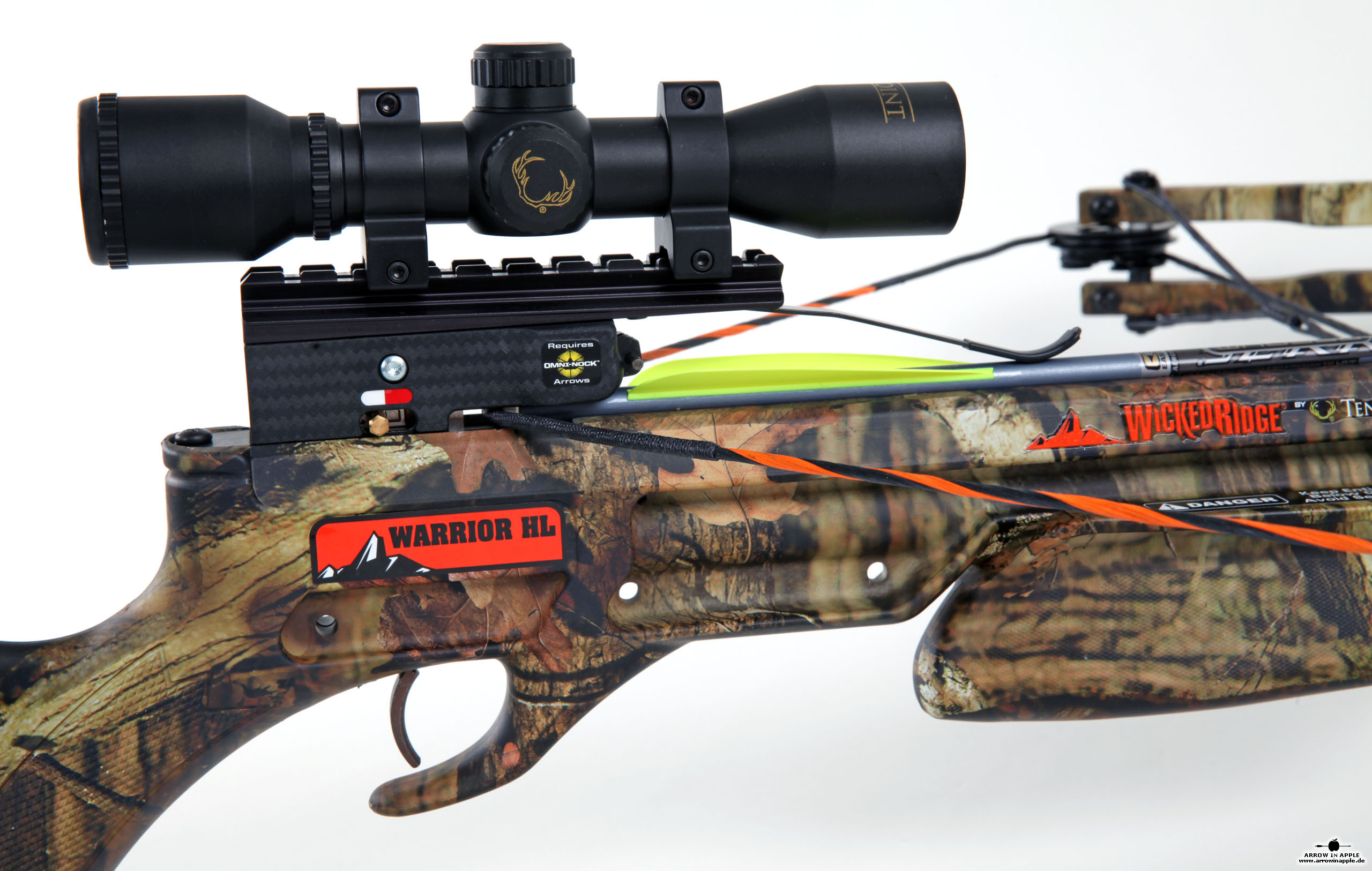

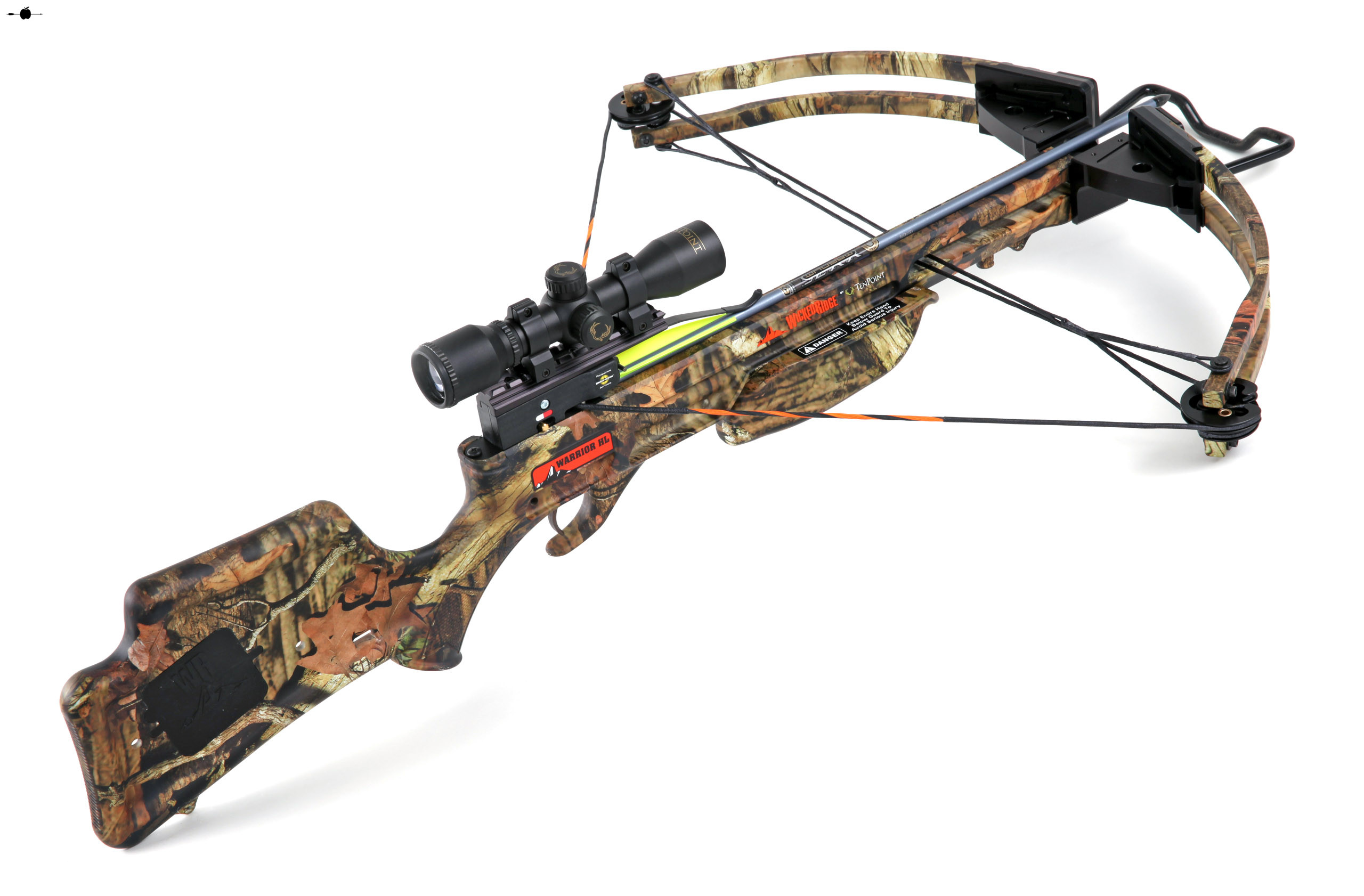

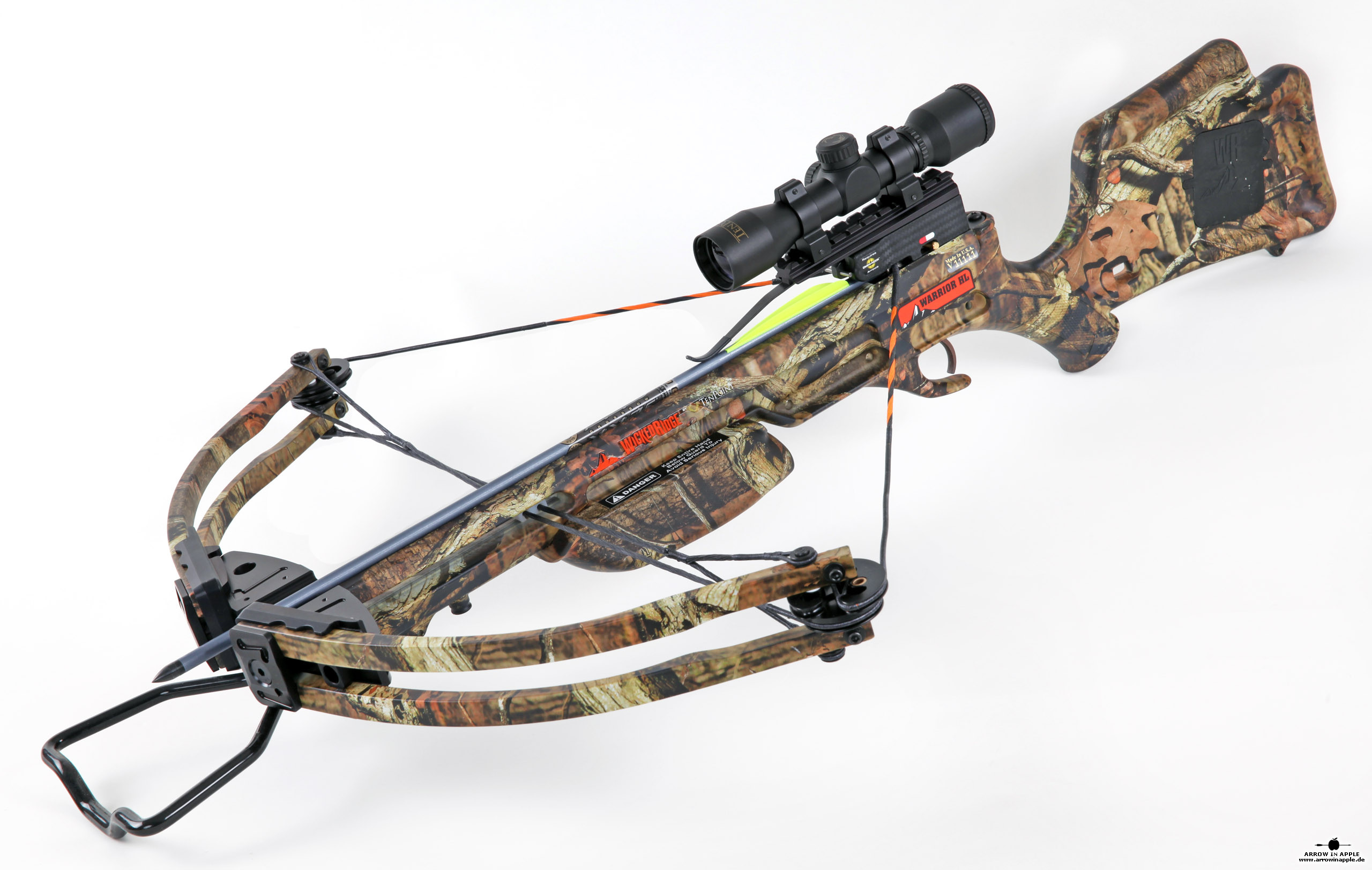

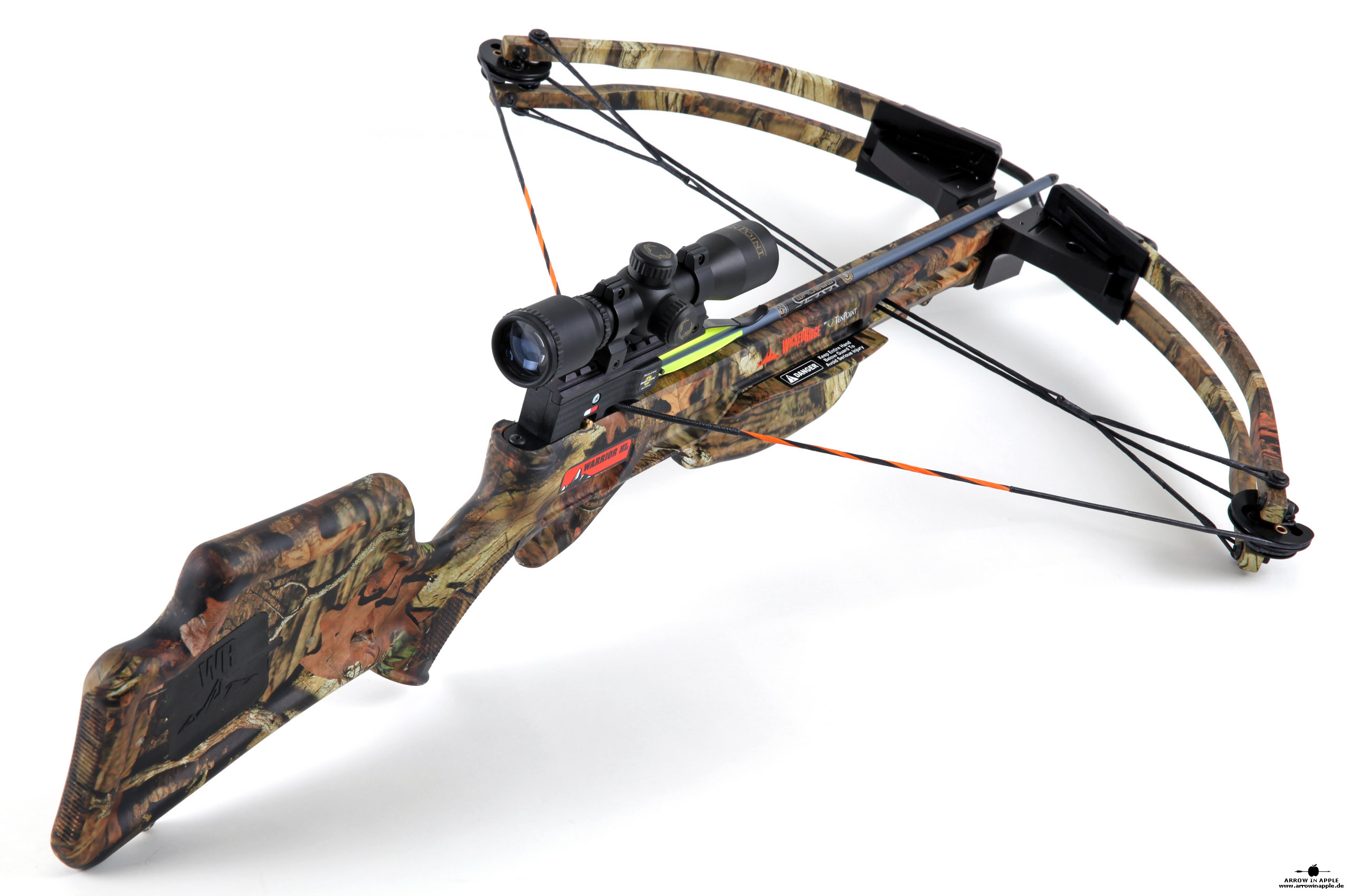

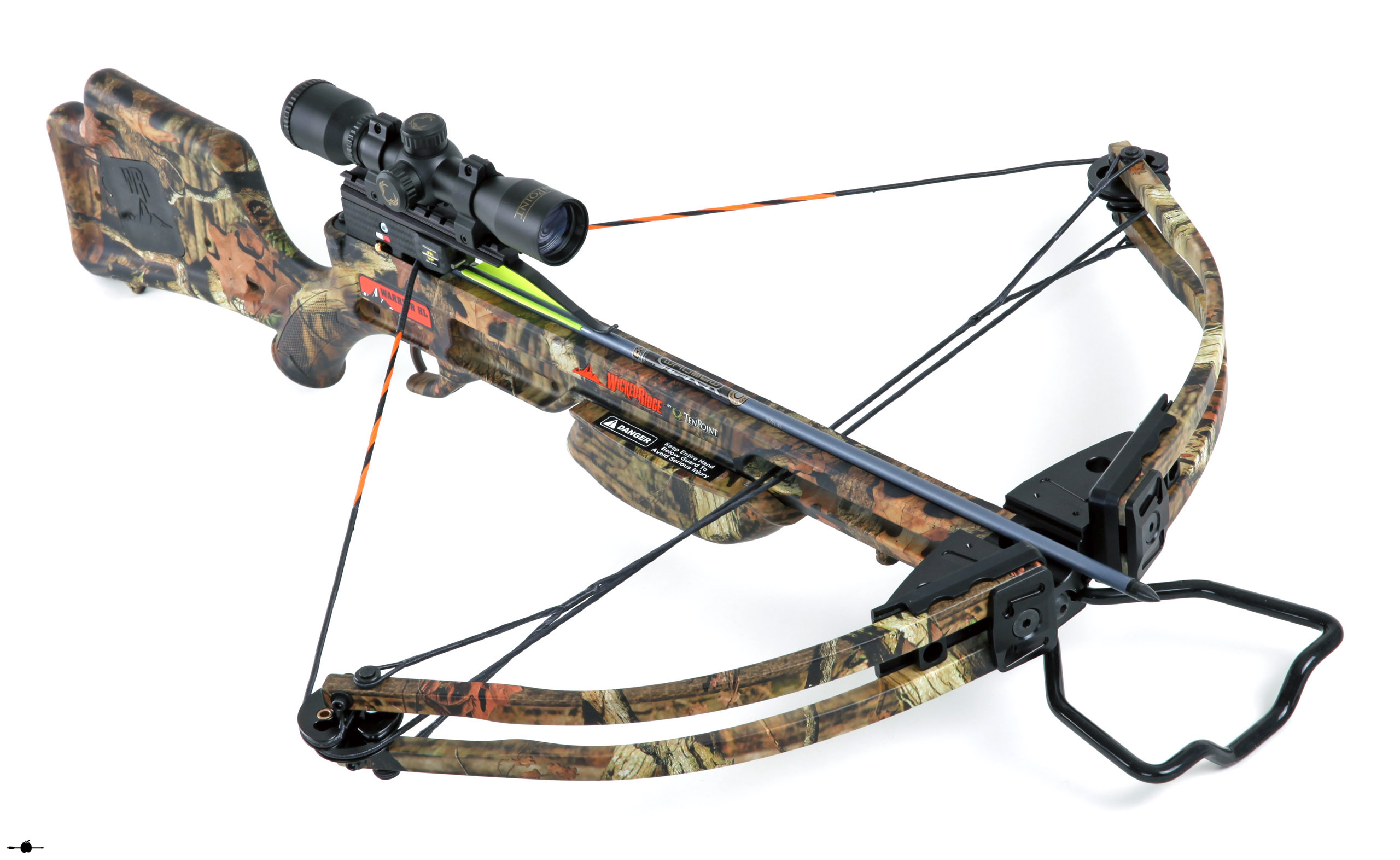

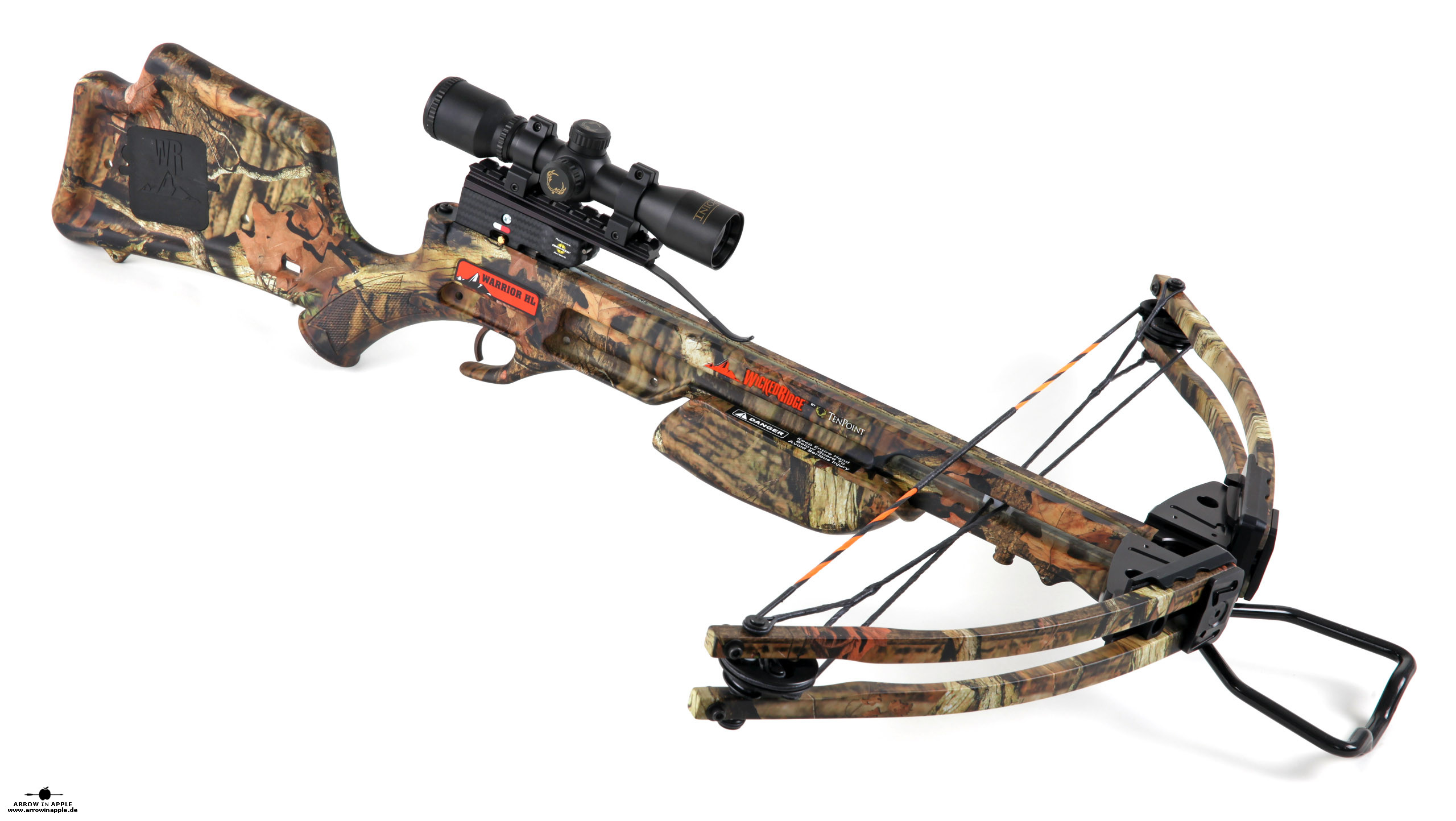

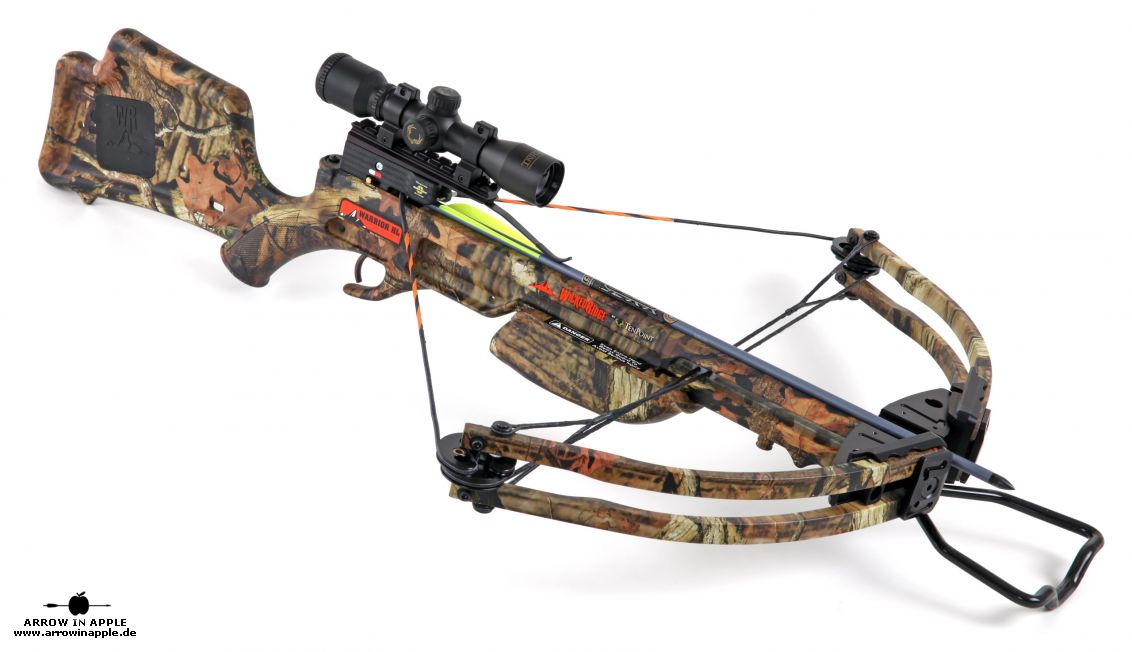

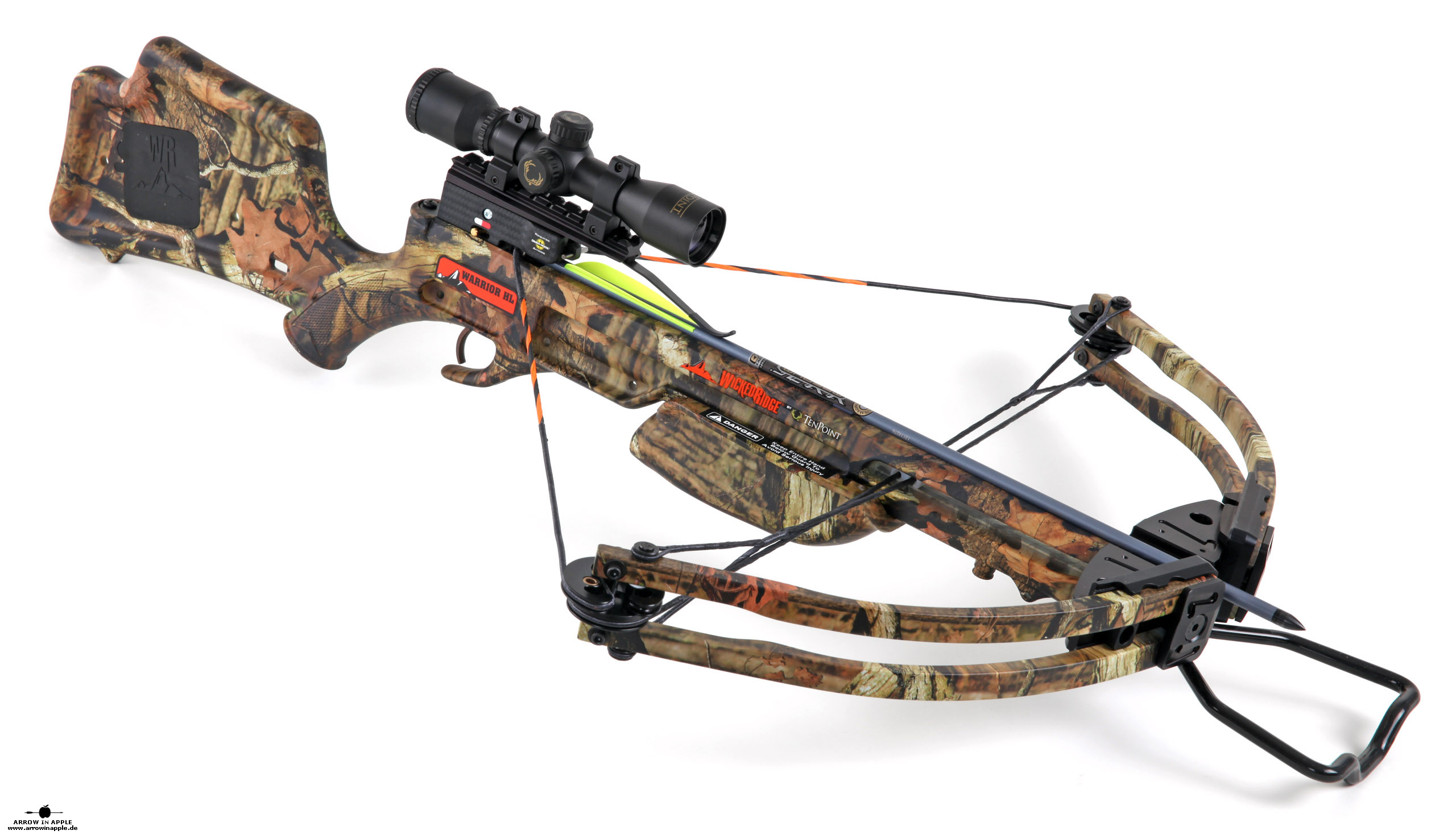

Wicked Ridge Warrior HL 2015

Prices and Packages

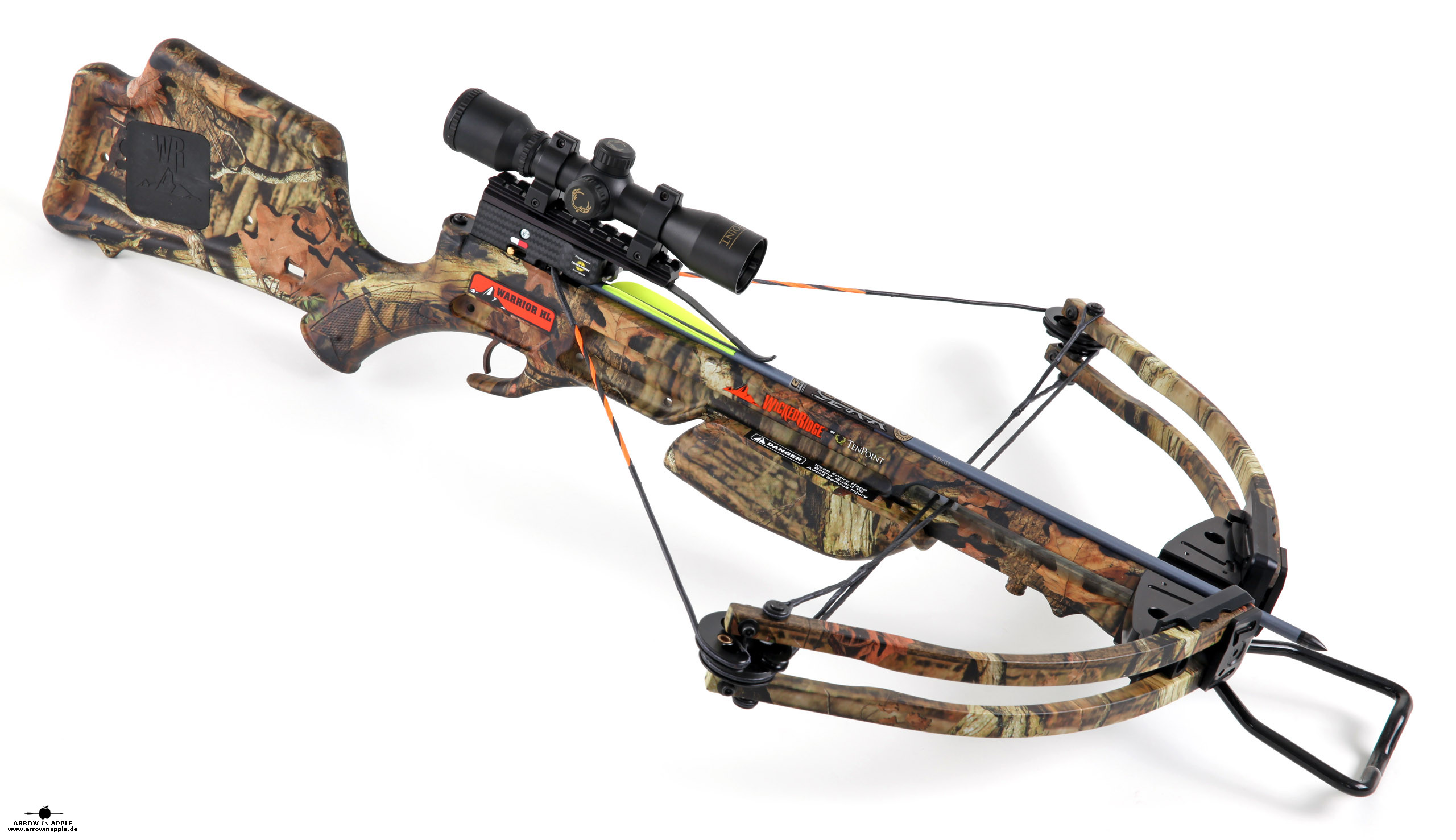

Warrior HL 2015, Wicked Ridge

The Warrior HL 2015 will be provided with following:

  • 3 x 32 Multiline TenPoint scope
  • Quiver for 3 arrows
Crossbow from our model archive.
This model is no longer manufactured and is no longer available. Questions regarding accessories, spare parts or successor models: Contact.
As German direct importer for crossbows of Wicked Ridge we offer full technical service, many years of experience, complete spare parts in stock as well as qualified advice.

Technical specification

Type
Compound
Draw weight
175 lbs
79 kg
Powerstroke
11,8 "
29,8 cm
Teflon impregnated
no
Dryfire protection
yes
Hollow machined track
no
Number of limbs
4
CNC machined riser
yes
Sight base included
yes
Length incl. stirrup
37,8 "
95,9 cm
Axle to axle bow width (de-cocked)
25,6 "
64,9 cm
Bowstring material
FastFlight
Country
USA
Trigger safety
yes
Triggerweight
3,5 lbs
1,6 kg
Trigger safety autom
yes
Overall width (de-cocked)
27,5 "
69,9 cm
Dampening system
no
Length without stirrup
33,5 "
85 cm
Loudness (tendency)
quiet
Triggersystem
nach oben öffnend
String and cablesystem
uniform
Total mass
7,5 lbs
3,4 kg
Manufacturer's information:
TenPoint Crossbow Technologies, 1325 Waterloo Road, Mogadore, OH 44260, USA
www.tenpointcrossbows.com

Responsible person:
AIA Pfeilsport GmbH, Schillerstr. 70, 16341 Panketal

E-Mail:
info@pfeilsport-gmbh.de

Arrow speed

  • Minimalarrow:
    -
  • Idealarrow 420 grain (27,2 g):
    Arrow speed
    299 fps
    91 m/s
    Arrow energy
    E0 113 Joule
    E0 83 ft-lb
  • Standardarrow 506 grain:
    -

Matchin crossbowarrows

Arrow weight(s)
420 grain
27,2 g
Shaft spline carbon
2264
Shaft spline alu
2219
Arrow length(s)
20 "
50,8 cm
Min. arrow diameter
8,7 mm
0,3425 "

Range

  • max. adjustable range with scope and accessories (elevation scope mount):
    Range
    120 m
    131 Yard
  • max. range standardvisor:
    Range
    60 m
    66 Yard
