Deanbow
Manufacturer:
Dean Crossbows Co.
Prices and Packages

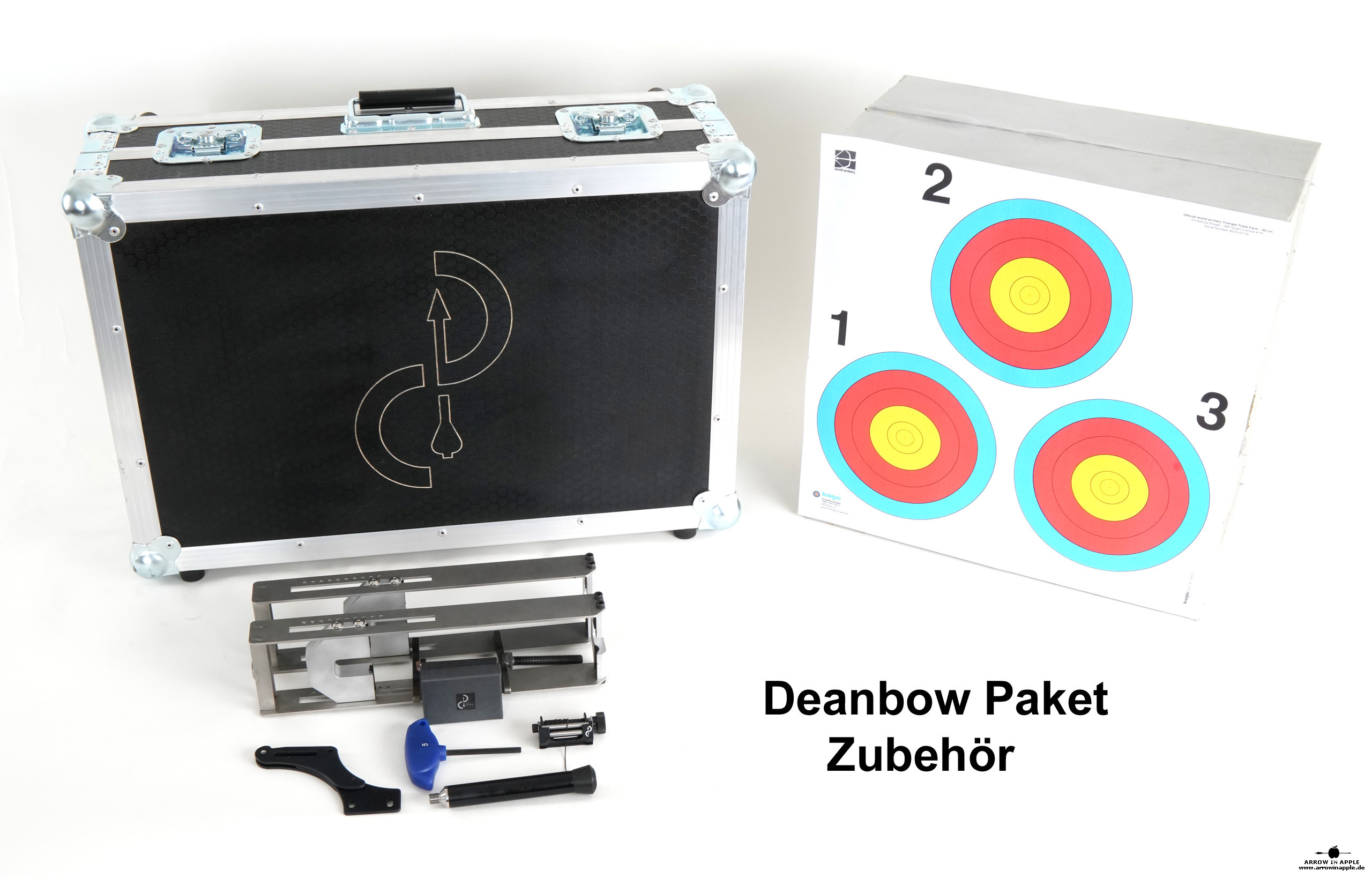

Deanbow, Dean Crossbows Co.The Deanbow will be provided with following:

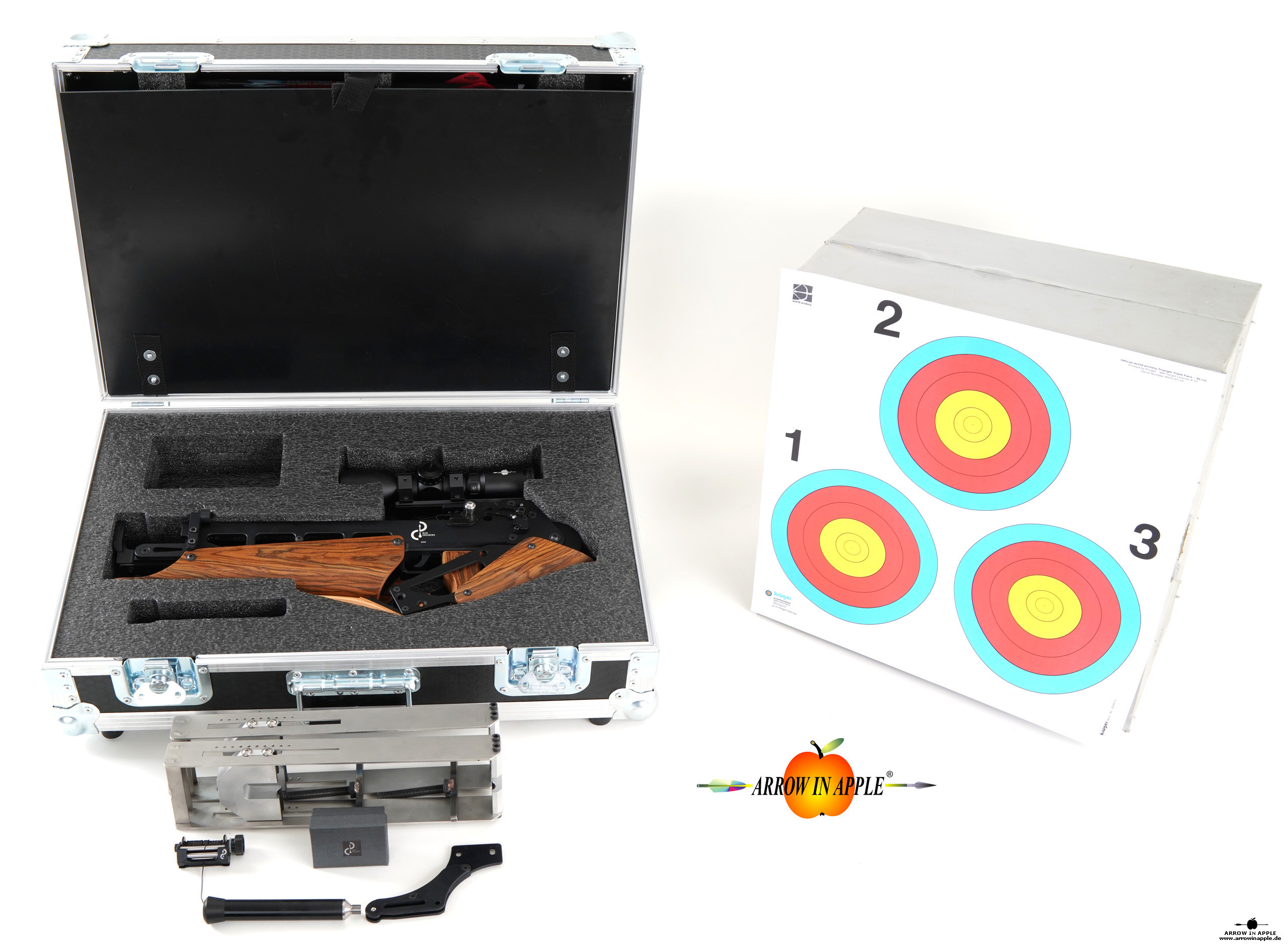

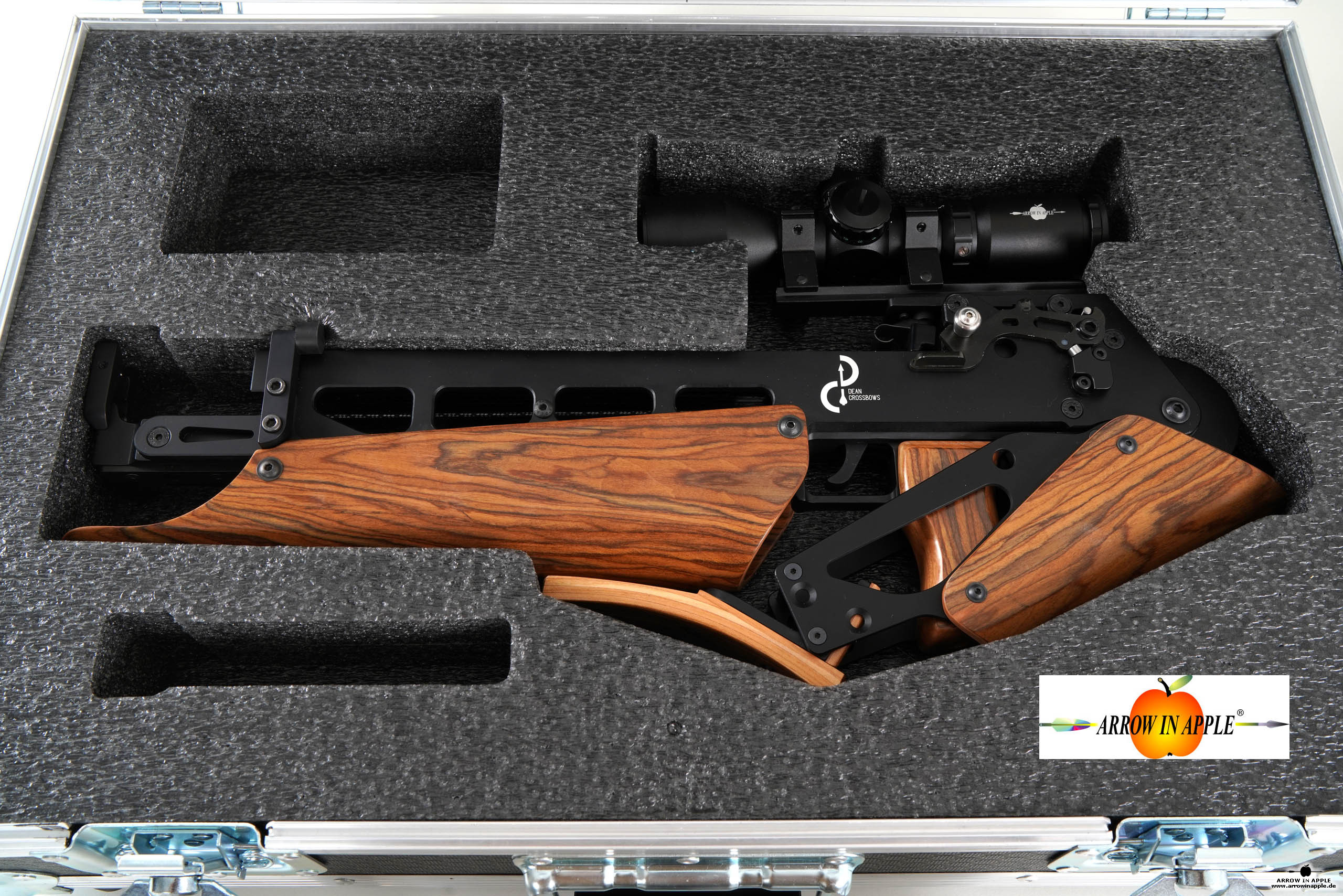

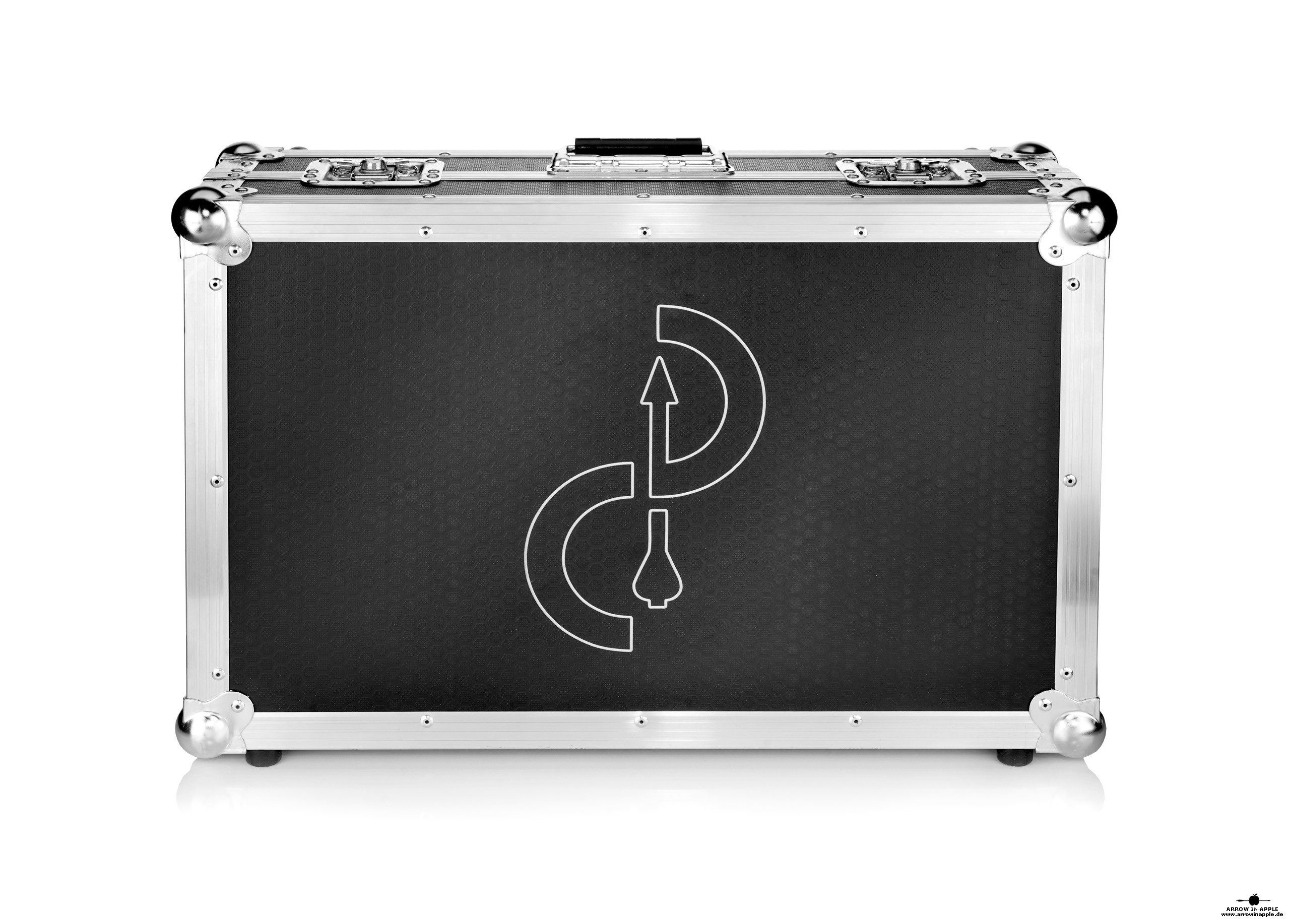

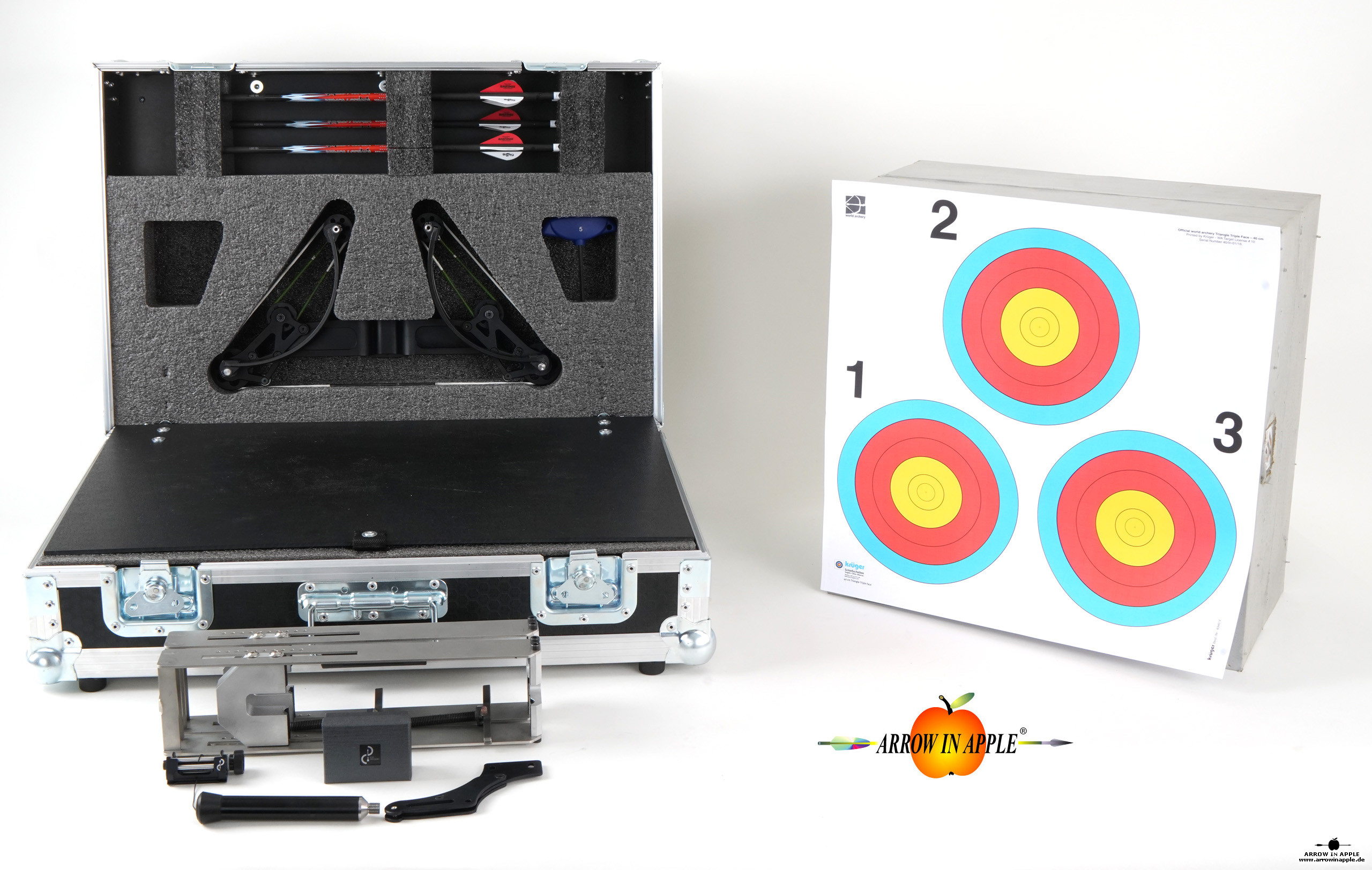

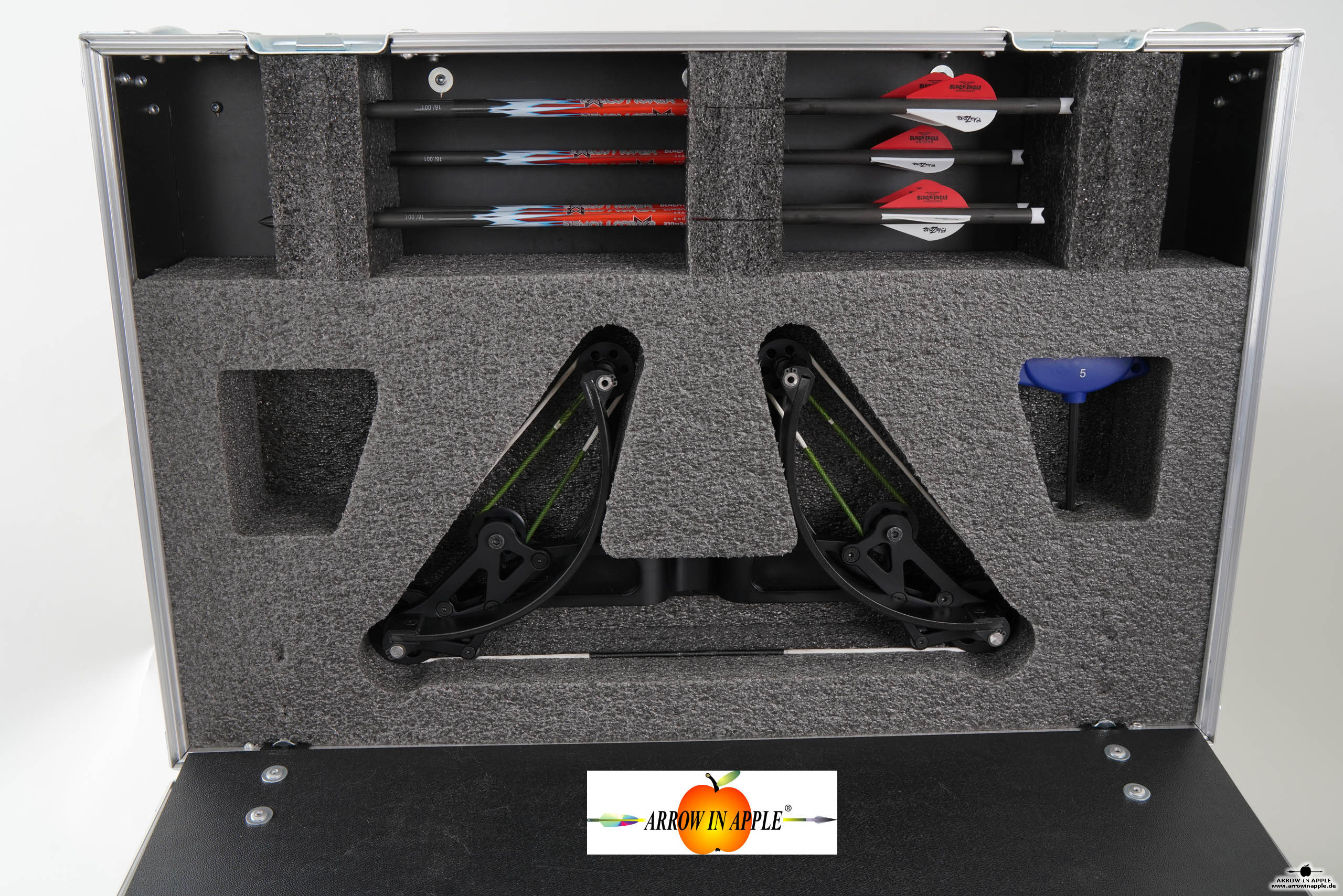

- The Dean crossbow is delivered with an integrated and smoothly functioning tensioning mechanism, packed in a stable and compact transport case

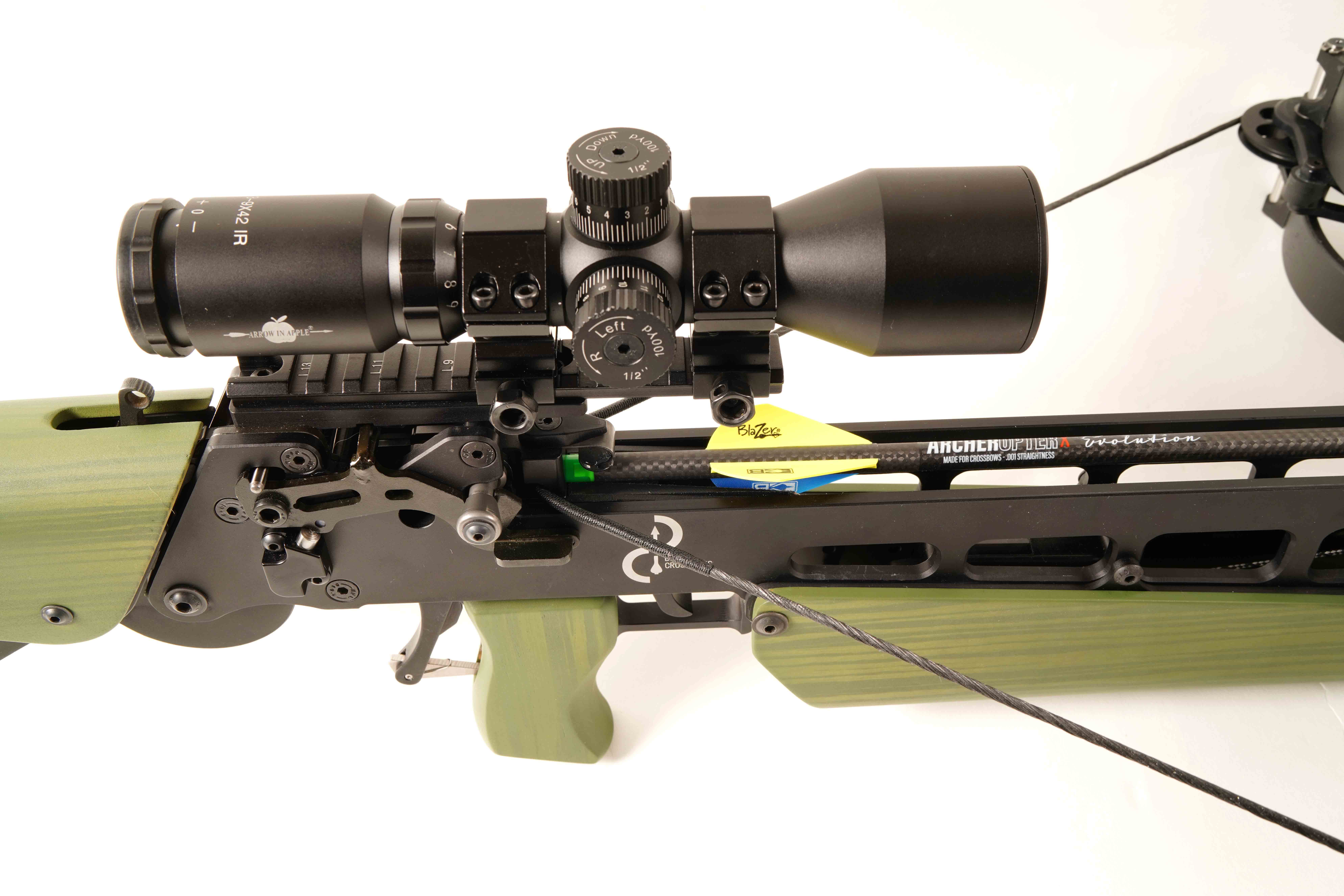

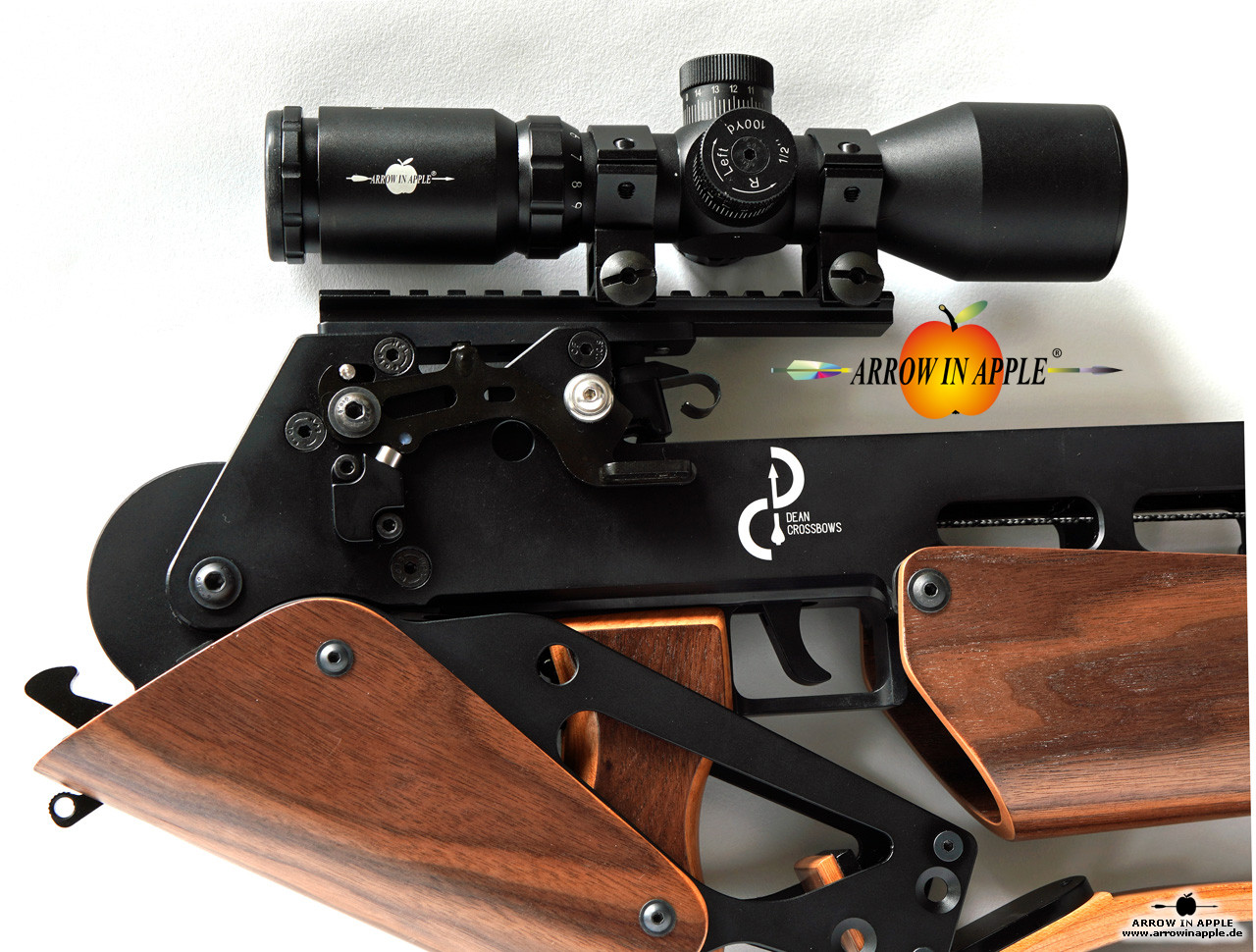

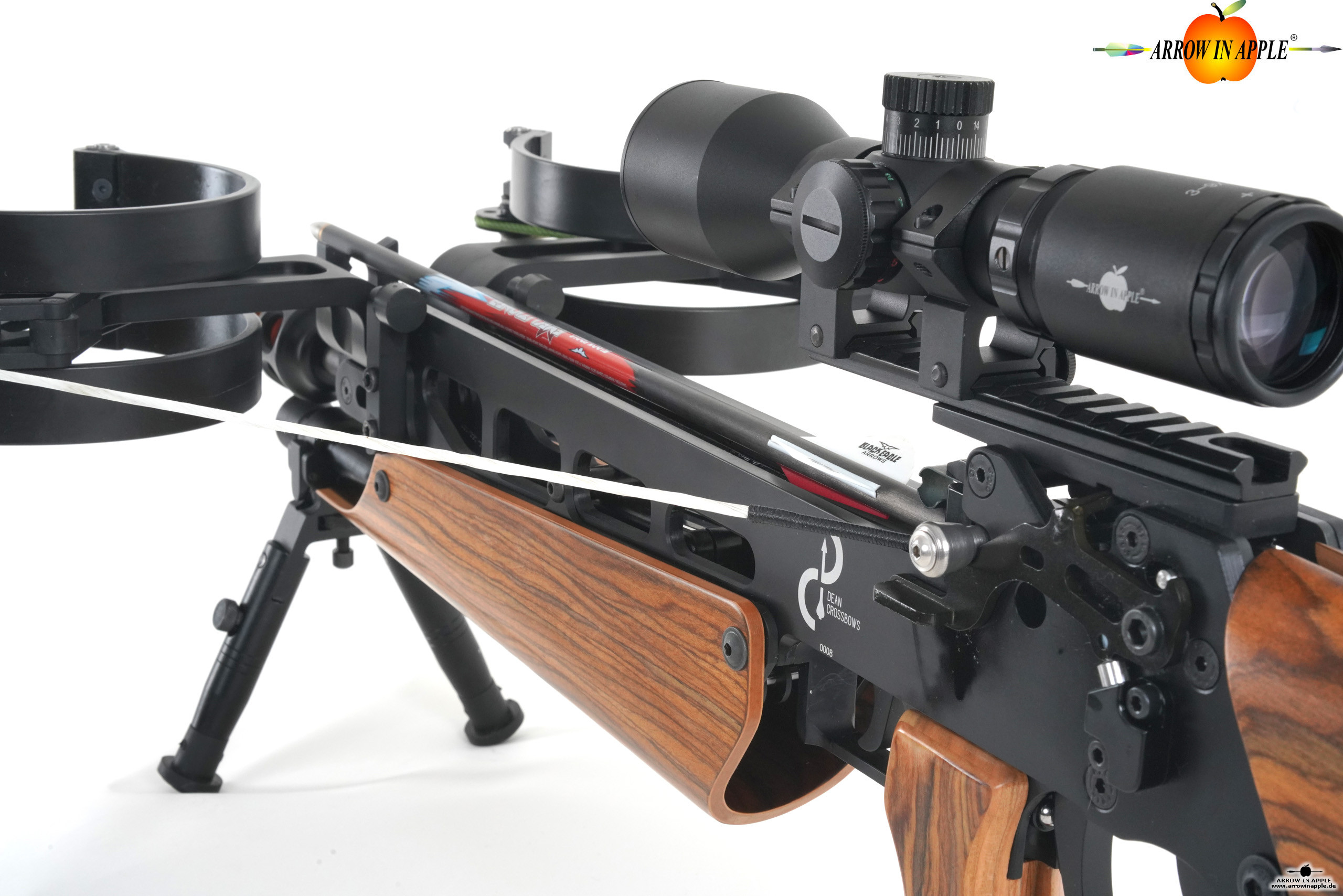

- The Dean Crossbow works with a 3-9 x 42 AIA (ArrowInApple) Flex Range Crossbow Scope with integrated arrow flight curve up to 120m. Every number 1-12 in the reticle can illuminated in red or green and can use in 10m steps one to one for the distance.
- for example 1 = 10m , ... 5= 50m.. 10= 100m and so on.

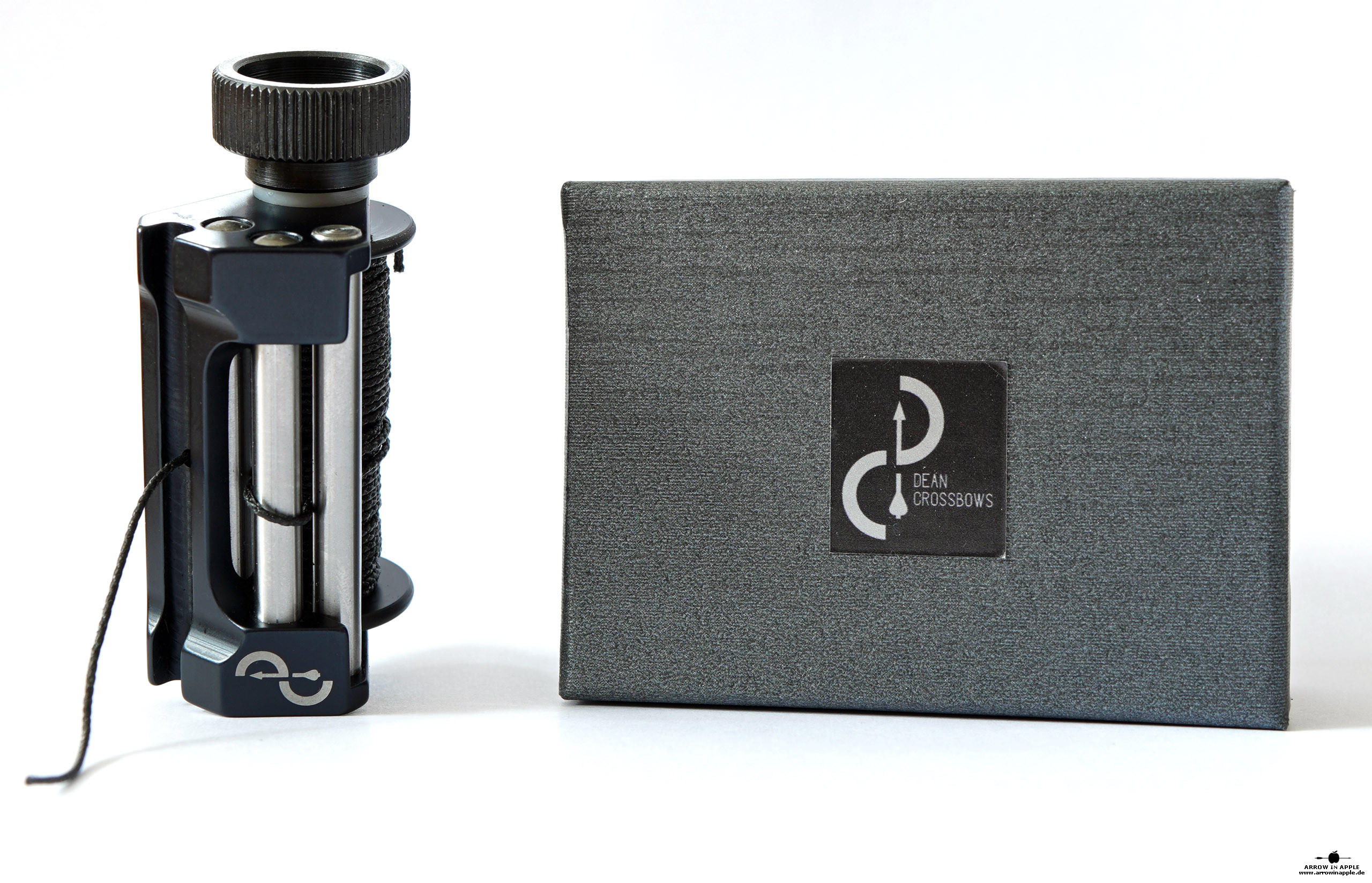

- DeanBow center serving machine, very small and flat, works also for compound crossbows, where you can make the new serving without to remove the string.
- 6 x 16 inch ArcherOpterX .001 Carbon arrows with 145 grain ToHat Tips, Alphanocks
- incl. a DeanBow bow press. You can change the String by yourself!!
- pre streched and pre twisted ABB Premium String

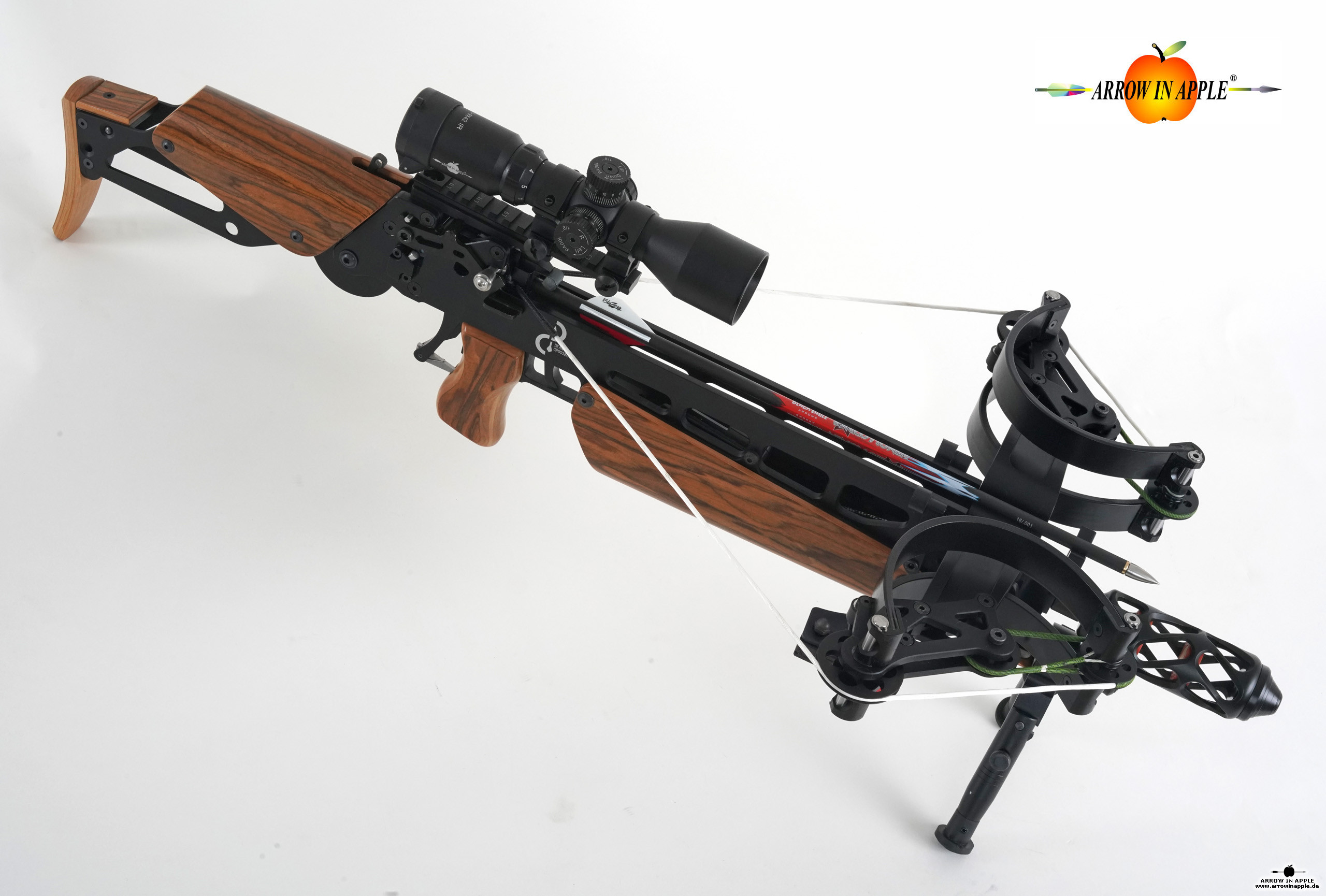

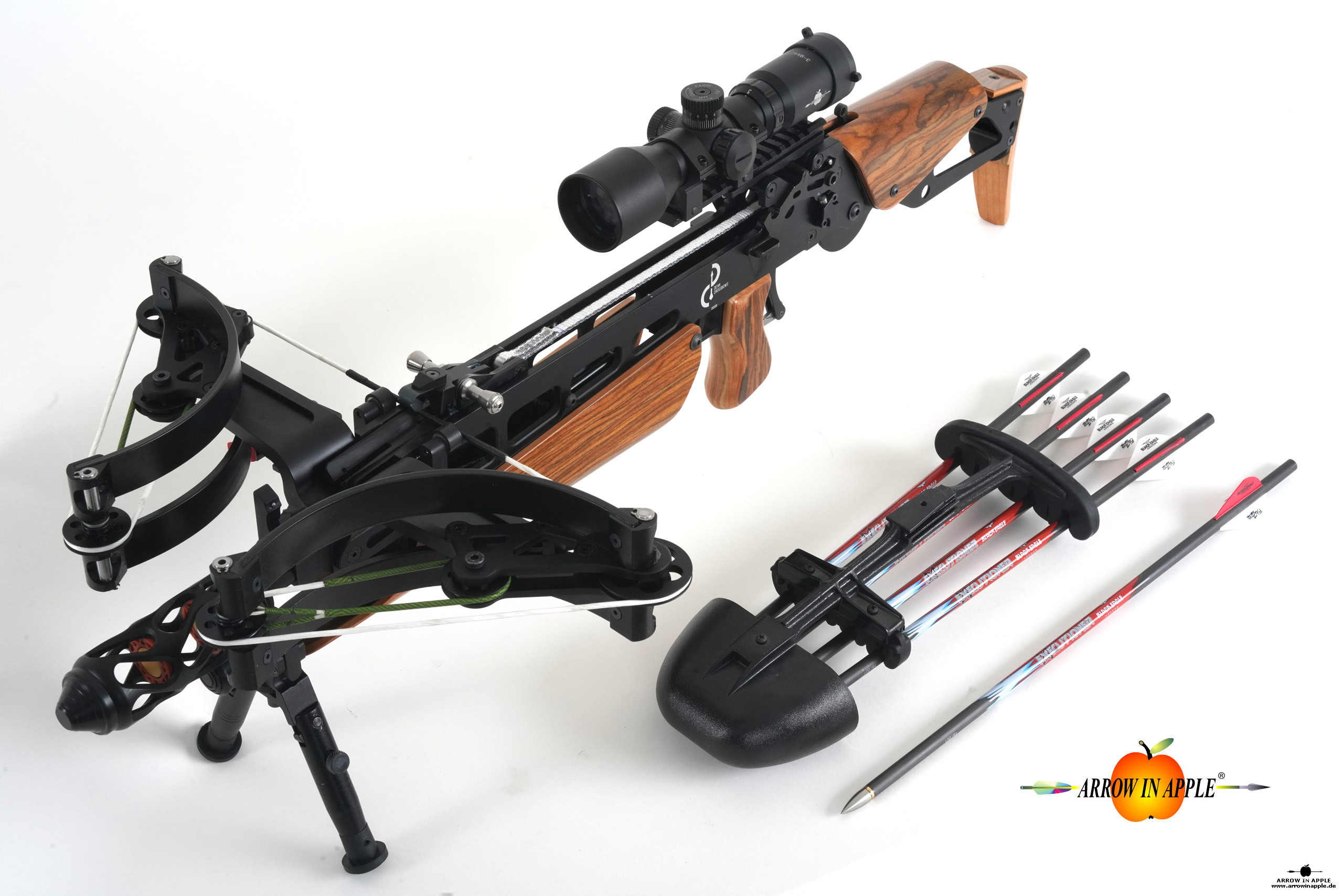

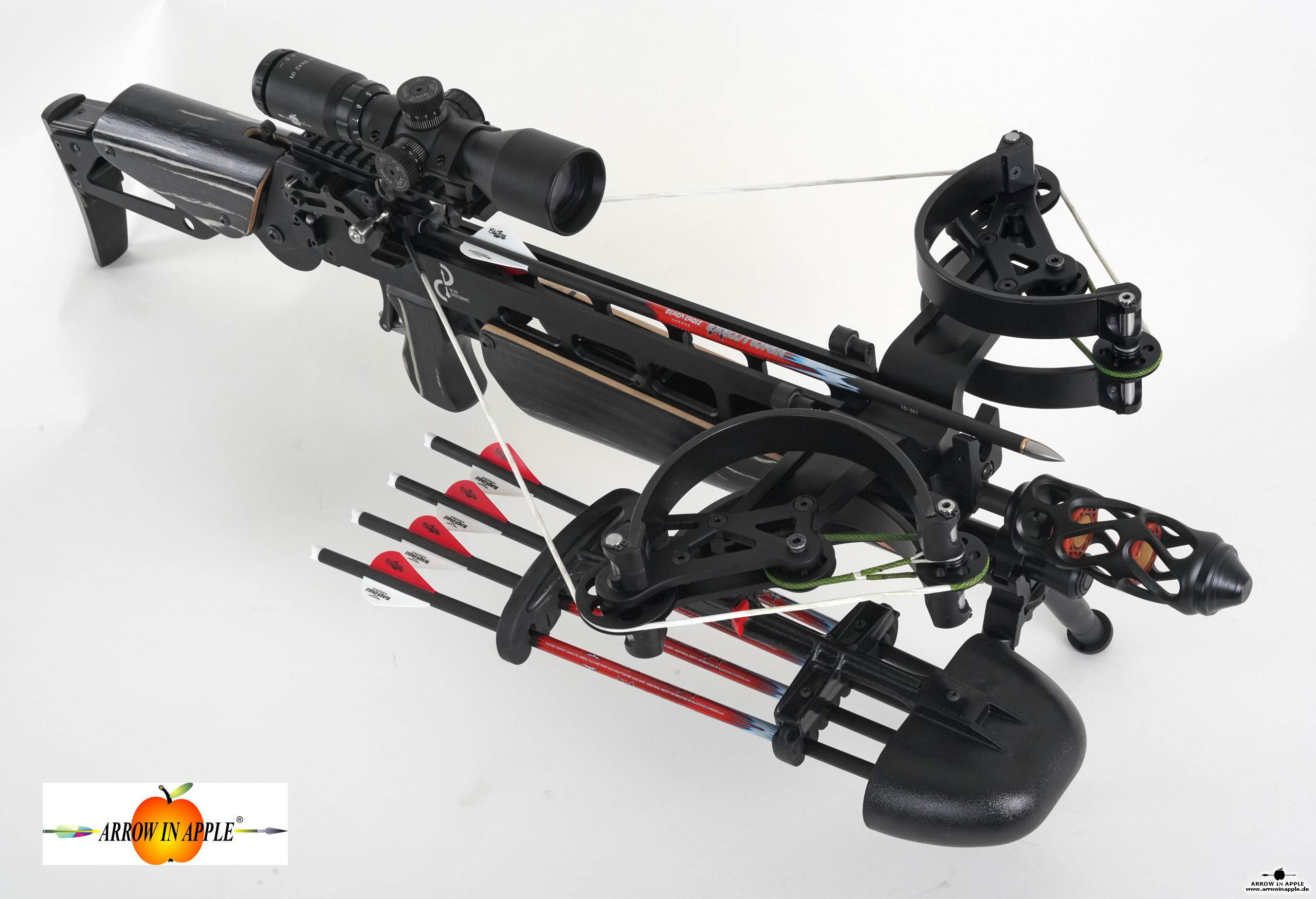

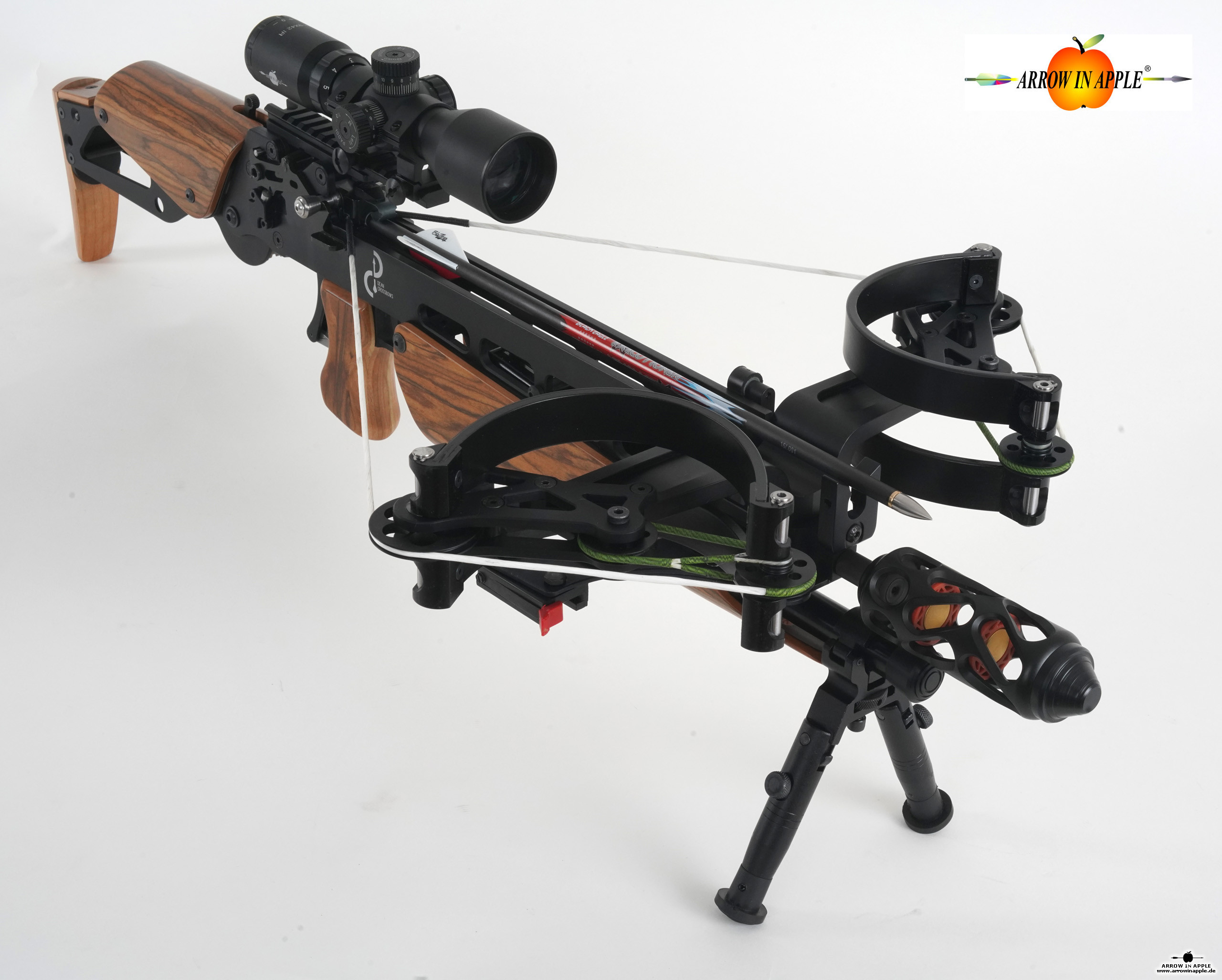

- incl. a bipod
- Incl. a 44 x 44 22 cm special foam target block. approximate 10kg, does fit for arrows with up to 260 Joule or up to 192 feed pounds

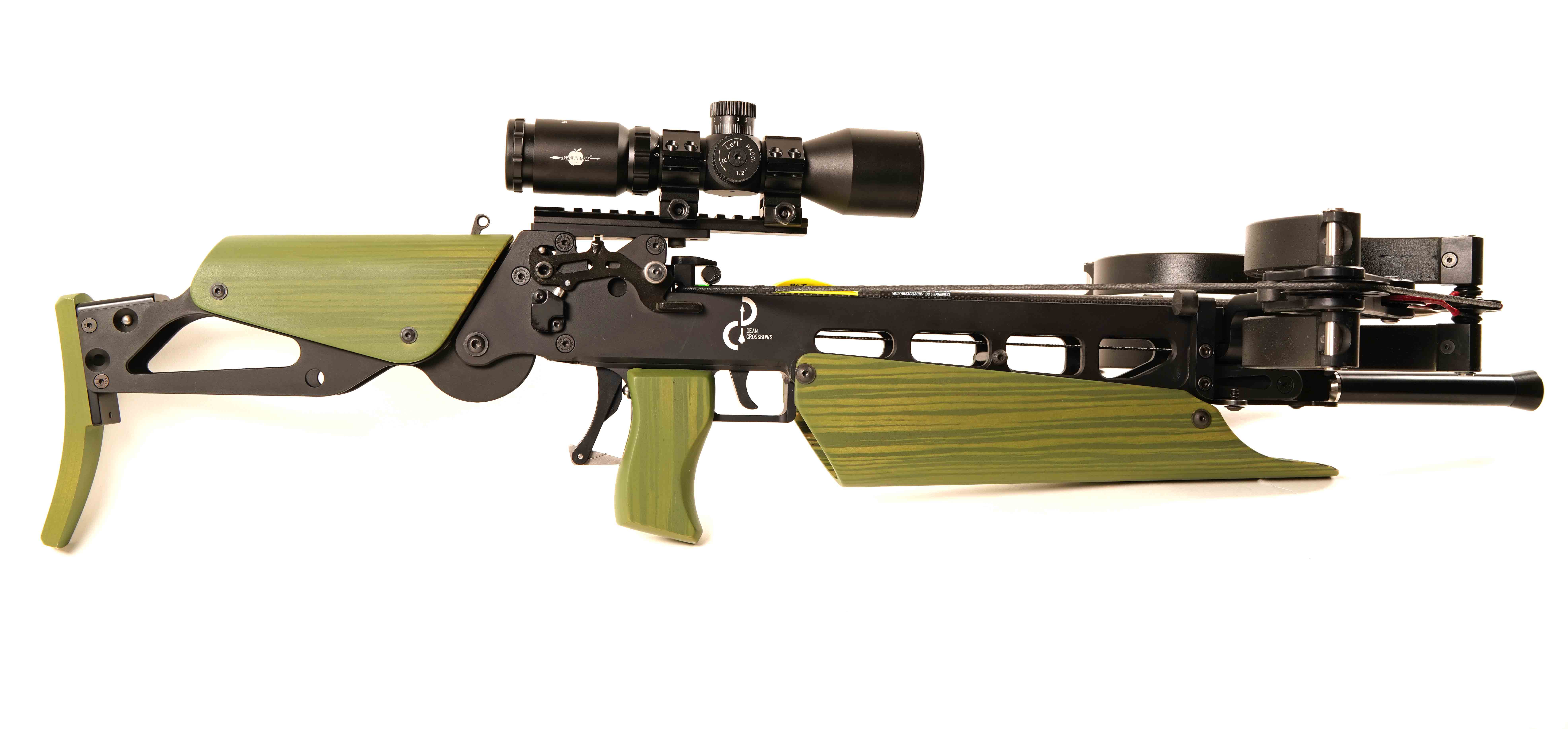

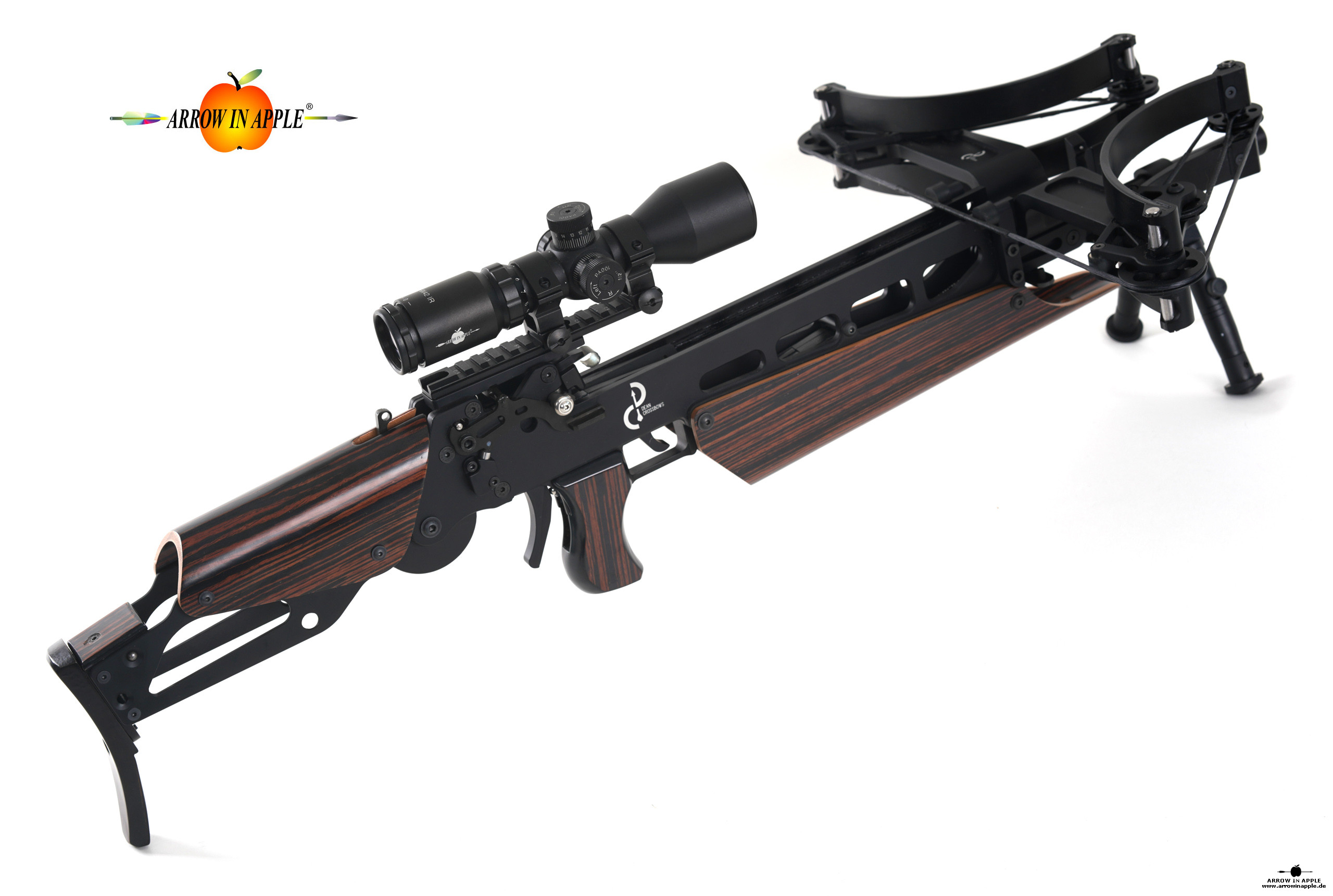

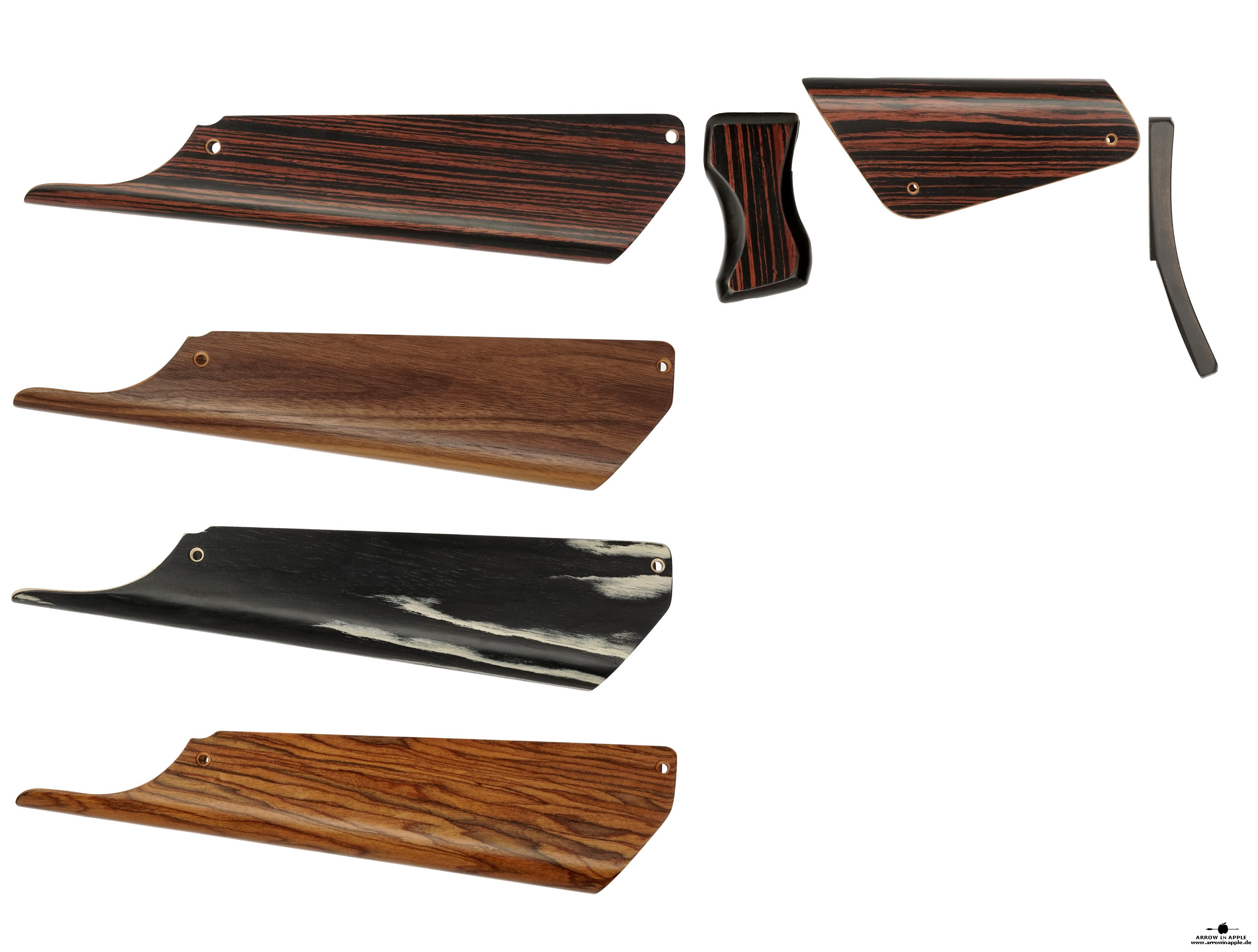

- available in 4 different wood design
- DeanBow center serving machine, very small and flat, works also for compound crossbows, where you can make the new serving without to remove the string.

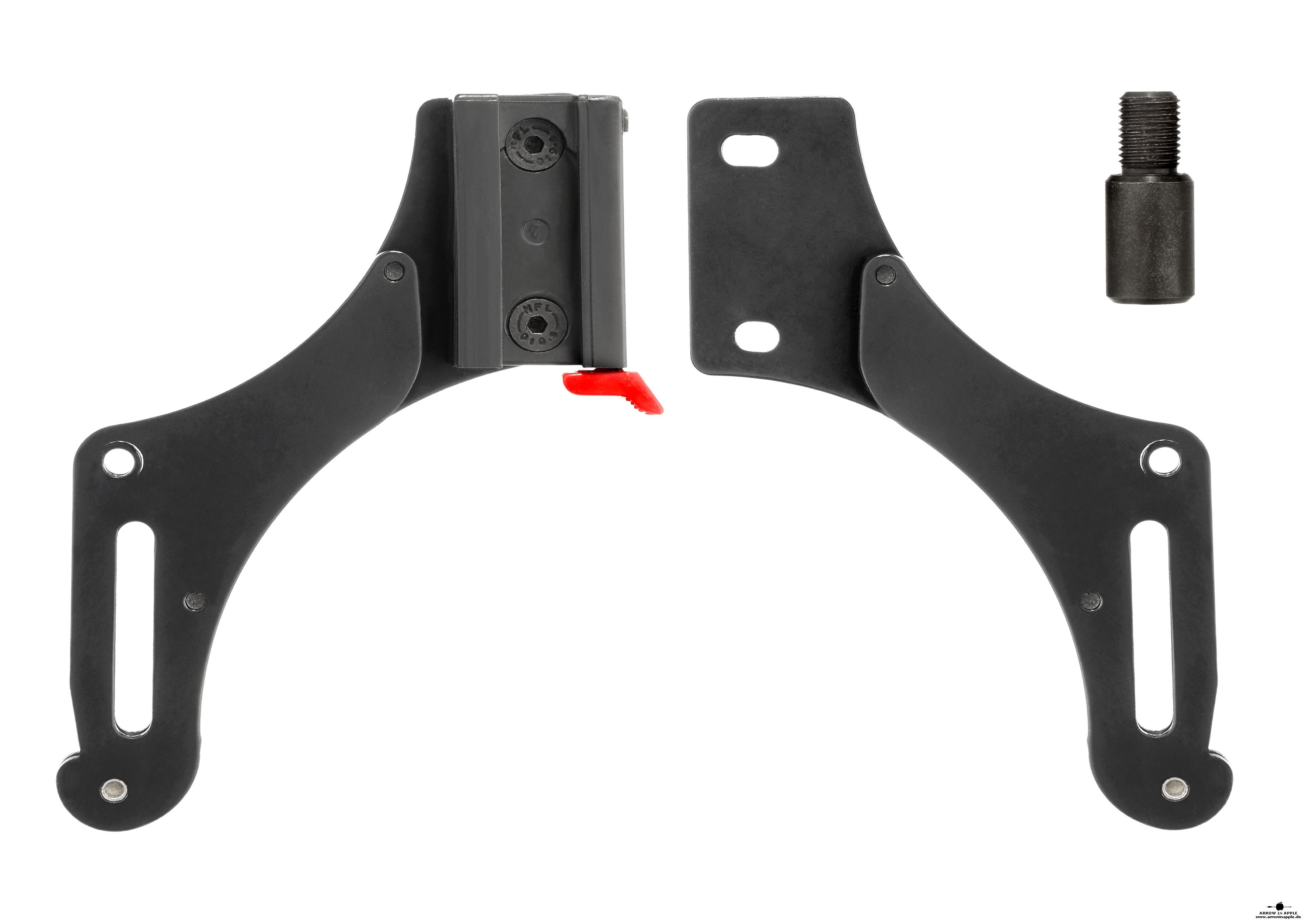

- incl. quiver adapter right or left
Prices incl. 16% VAT
Information about ordering, payment and shipping
Delivery time via DHL: 1-3 working days.
As German direct importer for crossbows of
Dean Crossbows
we offer full technical service, many years of experience, complete spare parts in stock as well as qualified advice.
Recommended accessories
-
Arrow puller
Bednar Perfect Puller
In stock.
EUR 28,26
-
-3669.jpg)
Carbon arrows
ArcherOpterX 16 Alpha Nock Aluminum (.001)
In stock.
EUR 14,52
-
Center serving tools / machines
Serving Machine For Center Serving / String Server
In stock.
EUR 15,11
-
Lubricating
Premium Lubricant TenPoint
In stock.
EUR 17,45
-
Oil
TenPoint Flight Rail & Trigger Lube
In stock.
EUR 12,67
-
Scopes
AIA FlexRange - FRS 101-12
In stock.
EUR 369,45
-
Softcases
Excalibur Crypt Case
In stock.
EUR 96,50
-
Tools & utilities
Gorilla 9 pc. Hex Key Set, inch
In stock.
EUR 14,52
-
Wax
Crossbow Rail Lube and Bowstring Lube,Darton
In stock.
EUR 8,68
Our impression
The Dean Crossbow comes in 2018 thats sure, but the exactly day is not yet known. Please visit more often our website for more news and information. Three short movies for your interest: Video 1: Deanbow 110m shot |
Technical specification
- Name
- Deanbow
- Manufacturer
- Dean Crossbows Co.
- Type (Compound/Recurve)
- Recurve
- Draw weight
- 375 lbs
- Weight
- -
- Powerstroke
- -
- Teflon impregnated
- No
- Dryfire protection
- Yes
- Hollow machined track
- No
- Number of limbs
- 4
- CNC machined riser
- Yes
- Sight base included
- Yes
- Length incl. stirrup
- -
- Bowstring material
- DynaFlight
- Country
- GER
- Trigger safety
- Yes
- Triggerweight
- 3,5 lbs
- Trigger safety autom
- Yes
- Withdrawal force
- -
- Overall width
- 16,1 Inch
- Dampening system
- Yes
- Length without stirrup
- -
- Loudness (tendency)
- sehr leise ++
- Triggersystem
- nach oben öffnend
- String and cablesystem
- uniform
- Total mass
- -
- Specifics

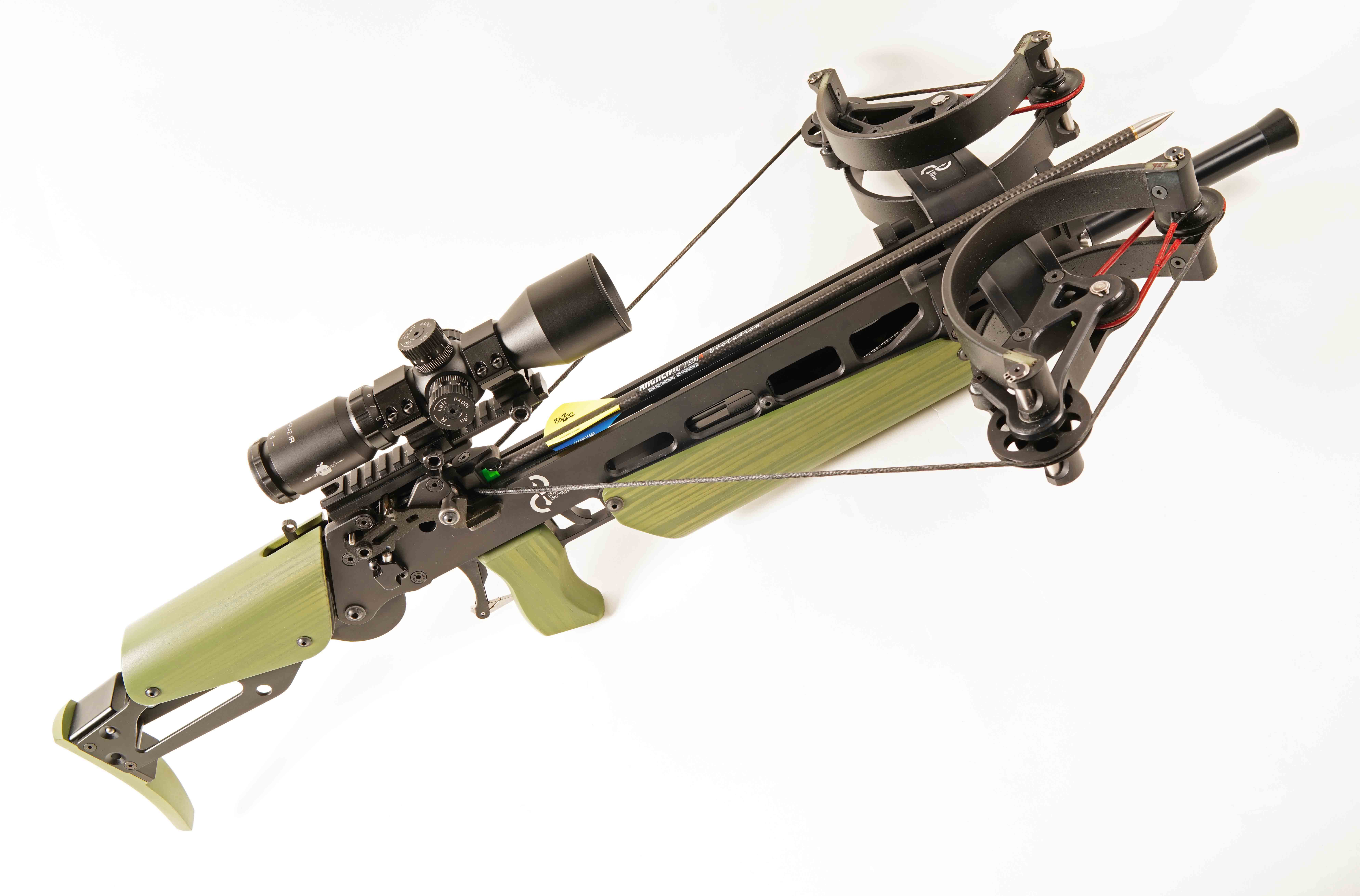

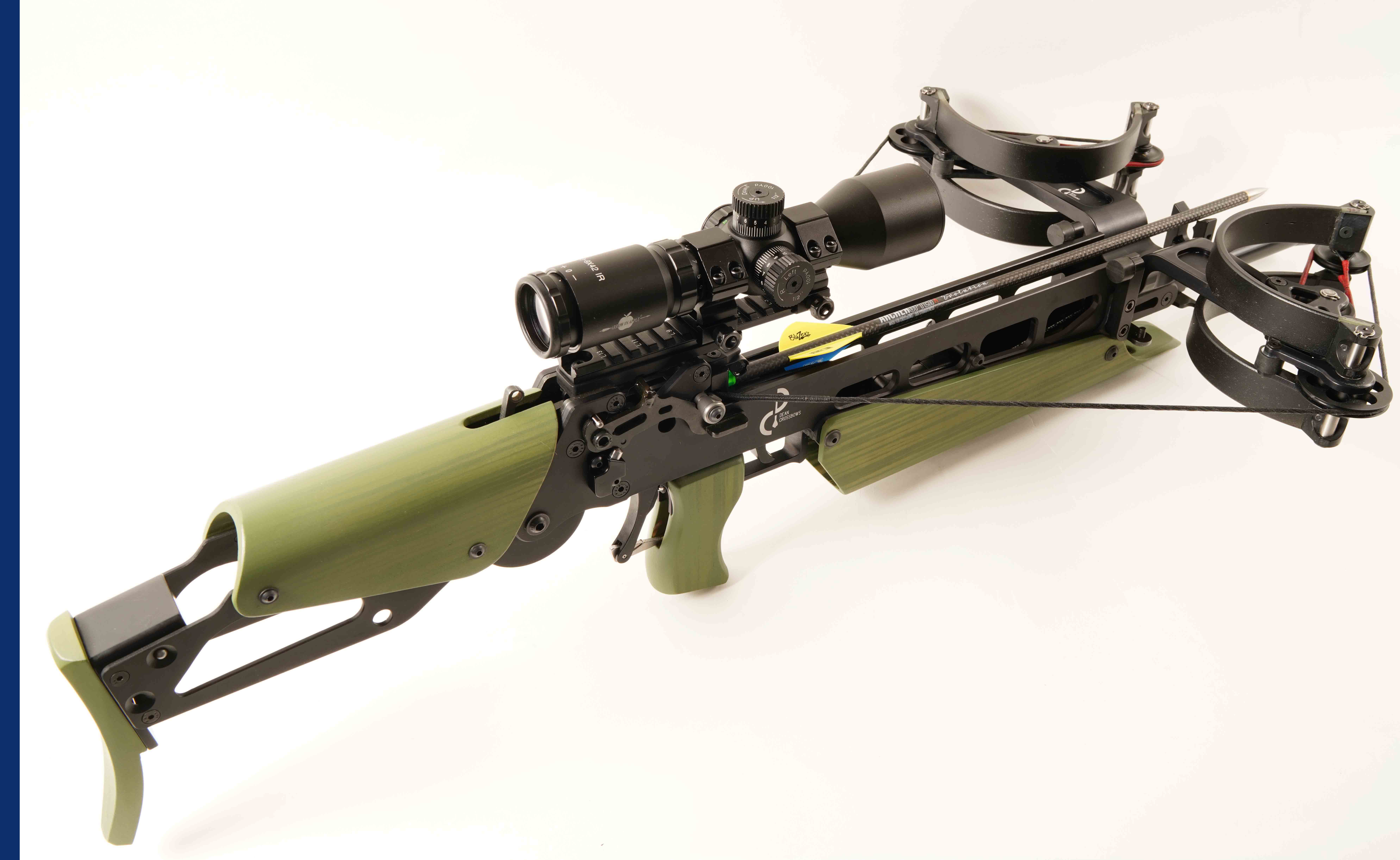

- Trackless crossbow, integrated loading system, it is possible to let the latch aktiv forward to the string only with press a button. The latch catch the string and the loading can start. For a transport is the Deanbow folding aup to a biggest dimension of 54 cm. The bow can deinstalled or installed with only one main bolt very fast. The bow dimension in expended condition is 16,1 inch, axle to axle less in cocked condition much less
Arrow speed
-
Minimalarrow ( grain):
- Arrow speed
- -
- -
- -
- Arrow energy
- -
- -
-
Idealarrow (440 grain):
- Arrow speed
- 117 m/s
- 421,2 km/h
- 385 fps
- Arrow Energy
- 196 Joule E0
- 145 ft-lb (foot-pound)
-
Standardarrow (506 grain):
- Arrow speed
- -
- -
- -
- Arrow Energy
- -
- -
Matchin crossbowarrows
- Arrow weight
- 440 grain
- Shaft spline carbon
- 2264
- Shaft spline alu
- --------
- Arrow length
- 16 Inches
- min. arrow diameter
- 8,7 mm
Range
-
max. adjustable range with scope and accessories (elevation scope mount):
- Range
- 132/200 yard
-
max. range standardvisor:
- Range
- 132 + yard
