Great Lakes Impact Sport

Prices and Packages

Impact Sport, Great Lakes Crossbows

The Impact Sport will be provided with following:

  • 4x 32 AIA scope with scope rings for the scopemount weaver style
  • 3 arrows 22" 2219 AIA
  • free shipping within Germany
  • adjustable butt plate for a custom fit
  • Scope mount installation bar
  • Bow - dampening package
Crossbow from our model archive.
This model is no longer manufactured and is no longer available. Questions regarding accessories, spare parts or successor models: Contact.
As German direct importer for crossbows of Great Lakes Crossbows we offer full technical service, many years of experience, complete spare parts in stock as well as qualified advice.

Description

The Great Lakes Impact Sport is one of the most powerful an fastest crossbow produced serially Like all Great Lakes models the Impact is sound and manufactured with high-quality materials. All parts important for shooting are milled from a high-quality aluminium alloy and impregnated with Teflon.

The manufacturer (Darton) is producing compound-crossbows for over 50 years and infuses his entire experience into the Great Lakes series. Unmistakably highest speeds, power and precision are being implemented through remarkable engineering skills.

One has always a good feeling shooting with the Impact, whereas highest arrow speeds with “heaviest” arrow weights are doing their own for precise hits.

The new limbs, an adjusted riser and 17 ¼” draw length enable the Impact to become the strongest and fastest “vessel” among modern crossbows.

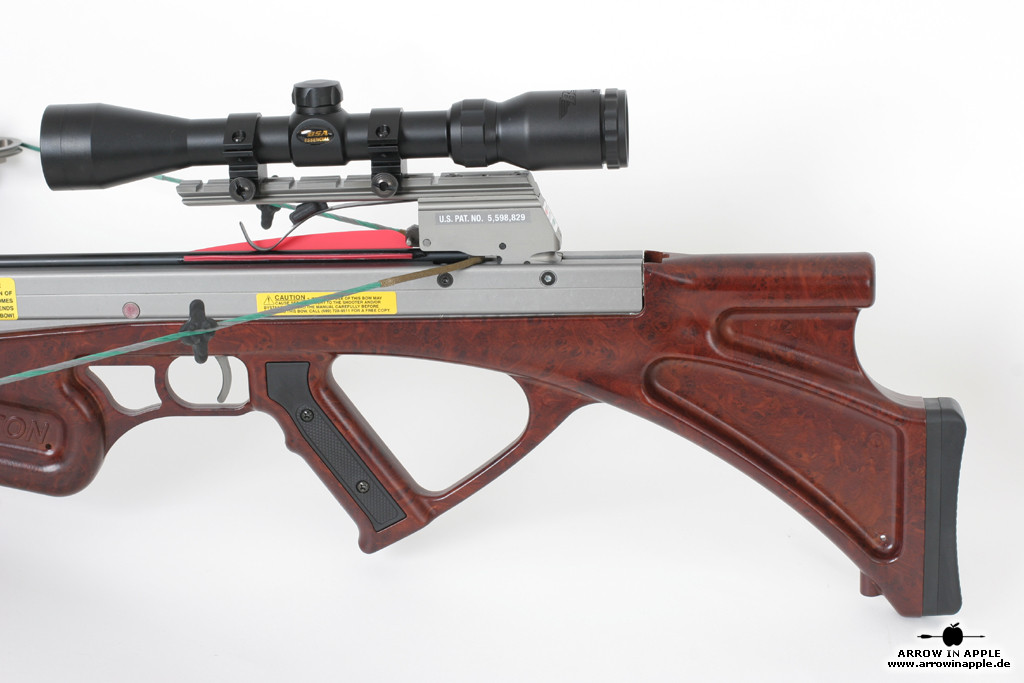

A new ergonomically formed stock with triple adjustable shoulder-support makes the crossbow not only more attractive, but guarantees a balanced and calm shooting position.

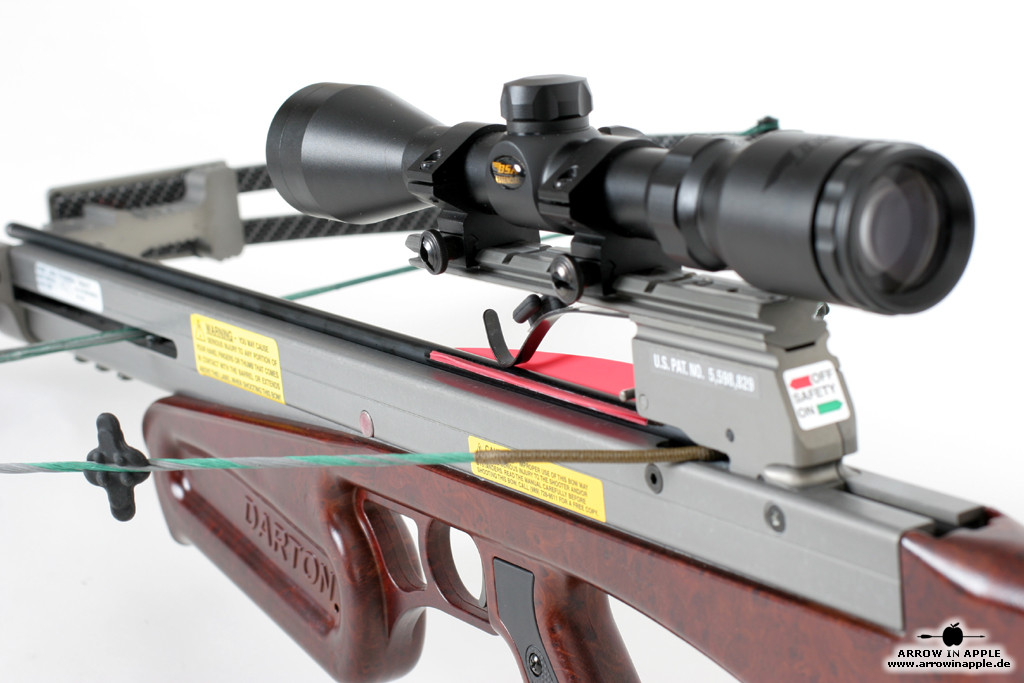

The stock profile for the supporting hand is especially formed, in order to prevent the shooter from accidentially touching the chord’s way. A complete dampening package on the limbs, the chord an the arrow downholder are creating the Impact to be one of the most silent crossbows. Apart from the colouring in Realtree Hardwoods Green HD, the Impact crossbow is delivered with a new two coloured green/anthracite chord- and cablesystem made of Dynaflight. The energy transferrate on the arrow has been thus optimised, that despite their higher draw weight many crossbows have to rank themselves behind the Impact. A peep sight and pin sight (optional accessory) allows even more accurate high-range shots up to 150m. It is extraordinarily remarkable that with the new AIA 4 x 32 crossbow scope now immediately possible to shoot at a range of 0-75m without a height adjustment of the scope. If you use then the height adjustment a distance up to 100m is possible. /photos/accessories/l/zubehoer-4_x_32_aia_zielfernrohr-1103.jpg

Alike to the sistermodels the trigger system(made by the Fa. Winchester), the precision machined arrow track and the teflon-coating are guaranteeing best results.

An arrow speed of 356,6fps (108,69 m/s or 391,29 km/h) with a 460grain arrow (29,82g) have been measured with the Impact. It seems to be that the times in which one could associate an enormous shooting-sound with a high arrow speed are over – but be aware, despite the fact that this dog does not bark, he bites even harder. The European Record in 3D shooting of the EAA is still hold with Great Lakes’ models.

Technical specification

Type
Compound
Draw weight
165 lbs
75 kg
Powerstroke
17 "
43,2 cm
Teflon impregnated
yes
Dryfire protection
yes
Hollow machined track
yes
Number of limbs
4
CNC machined riser
yes
Sight base included
yes
Length incl. stirrup
37,4 "
95 cm
Axle to axle bow width (de-cocked)
28,4 "
72 cm
Bowstring material
DynaFlight
Country
USA
Trigger safety
yes
Triggerweight
3,5 lbs
1,6 kg
Trigger safety autom
no
Withdrawal force
736 N
Overall width (de-cocked)
30,3 "
77 cm
Dampening system
yes
Length without stirrup
33,8 "
85,8 cm
Loudness (tendency)
very quiet

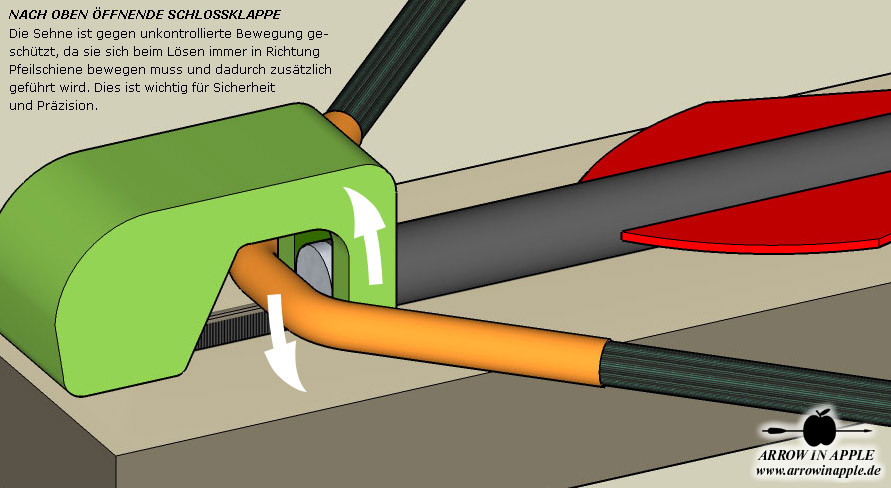

Triggersystem
nach oben öffnend
String and cablesystem
uniform
Total mass
8,4 lbs
3,8 kg
Specifics
  • Cocking aid standard and mechanical mountable
  • Dampening system for limbs, string
  • adjustable arrowdownholder spring
  • adjustable stock (shoulder position)
  • mountable 8 arrow Quiver
  • mountable shoulder sling
  • dry fire savety
  • usable for right and lefthand shooters
Manufacturer's information:
Darton Archery, 3540 Darton Rd. Hale, MI 48739, USA
dartonarchery.com

Responsible person:
AIA Pfeilsport GmbH, Schillerstr. 70, 16341 Panketal

E-Mail:
info@pfeilsport-gmbh.de

Arrow speed

  • Minimalarrow 460 grain (29,8 g):
    Arrow speed
    357 fps
    109 m/s
    Arrow energy
    E0 172 Joule
    E0 127 ft-lb
  • Idealarrow 506 grain (32,8 g):
    Arrow speed
    341 fps
    104 m/s
    Arrow energy
    E0 177 Joule
    E0 131 ft-lb
  • Standardarrow 506 grain:
    Arrow speed
    341 fps
    104 m/s
    Arrow energy
    E0 177 Joule
    E0 131 ft-lb

Matchin crossbowarrows

Arrow weight(s)
506 grain
32,8 g
Shaft spline carbon
2264
Shaft spline alu
2219
Arrow length(s)
22 "
55,9 cm
Min. arrow diameter
8,73 mm
0,3437 "

Range

  • max. adjustable range with scope and accessories (elevation scope mount):
    Range
    100 m
    109 Yard
  • max. range standardvisor:
    Range
    150 m
    164 Yard
