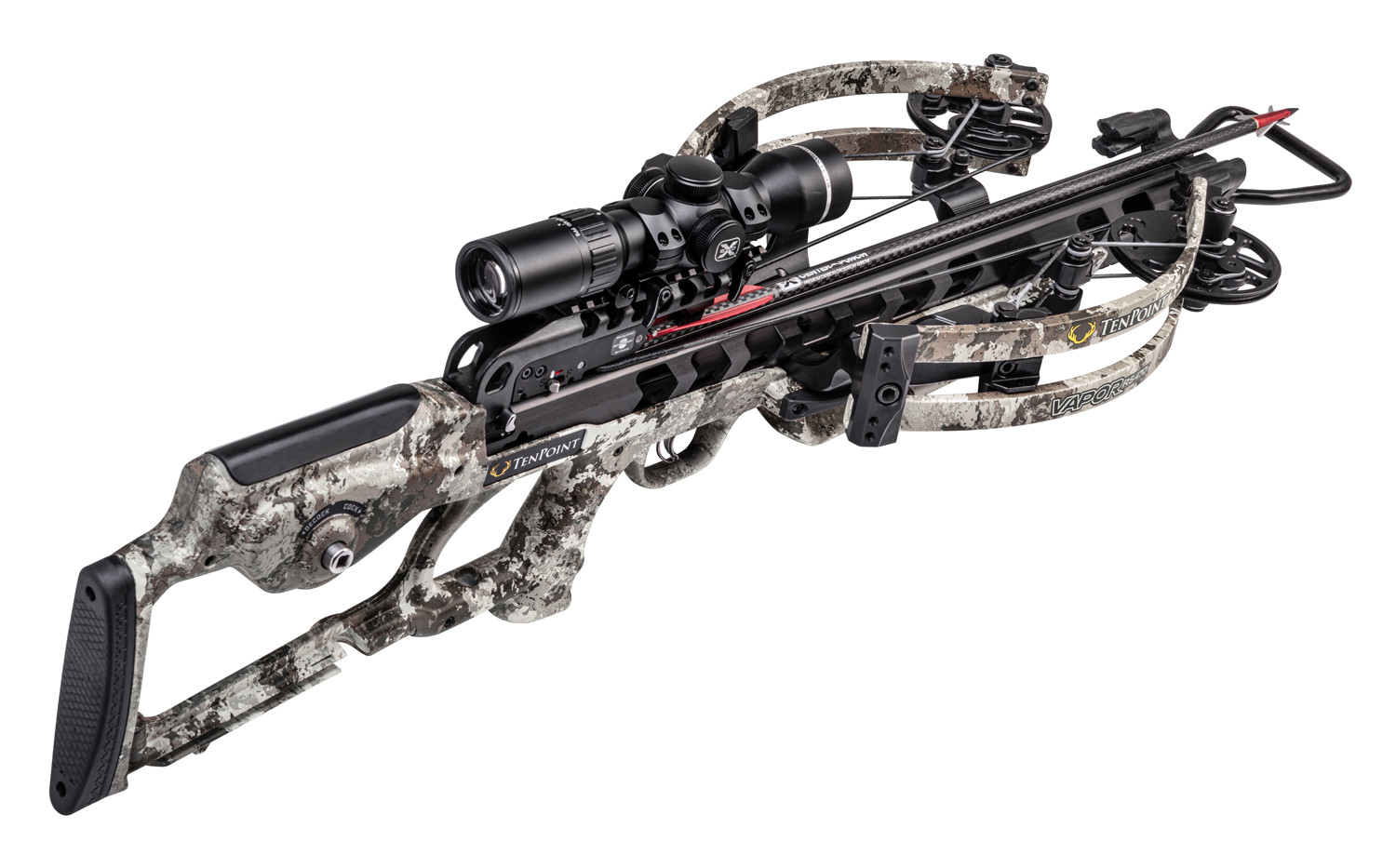

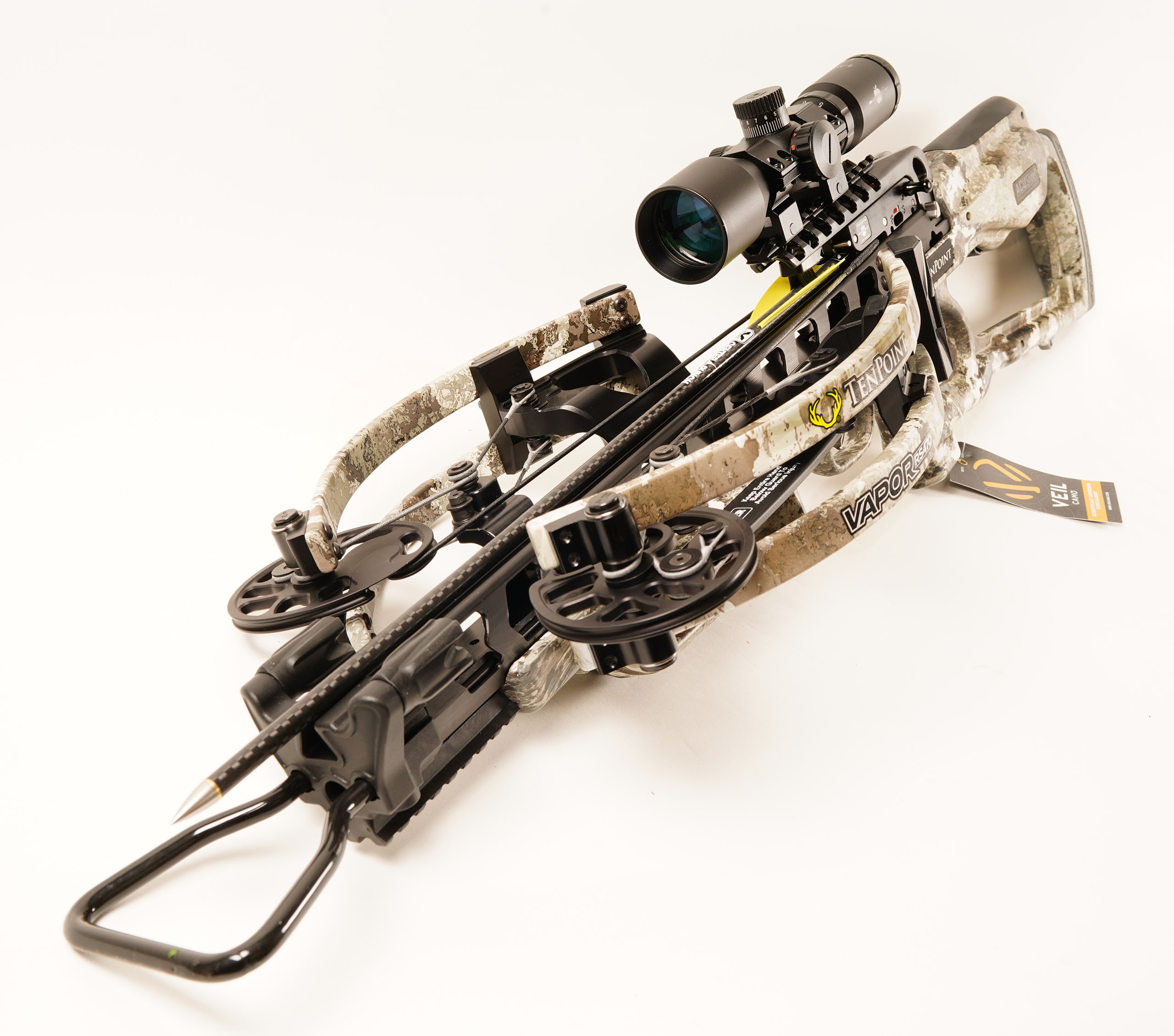

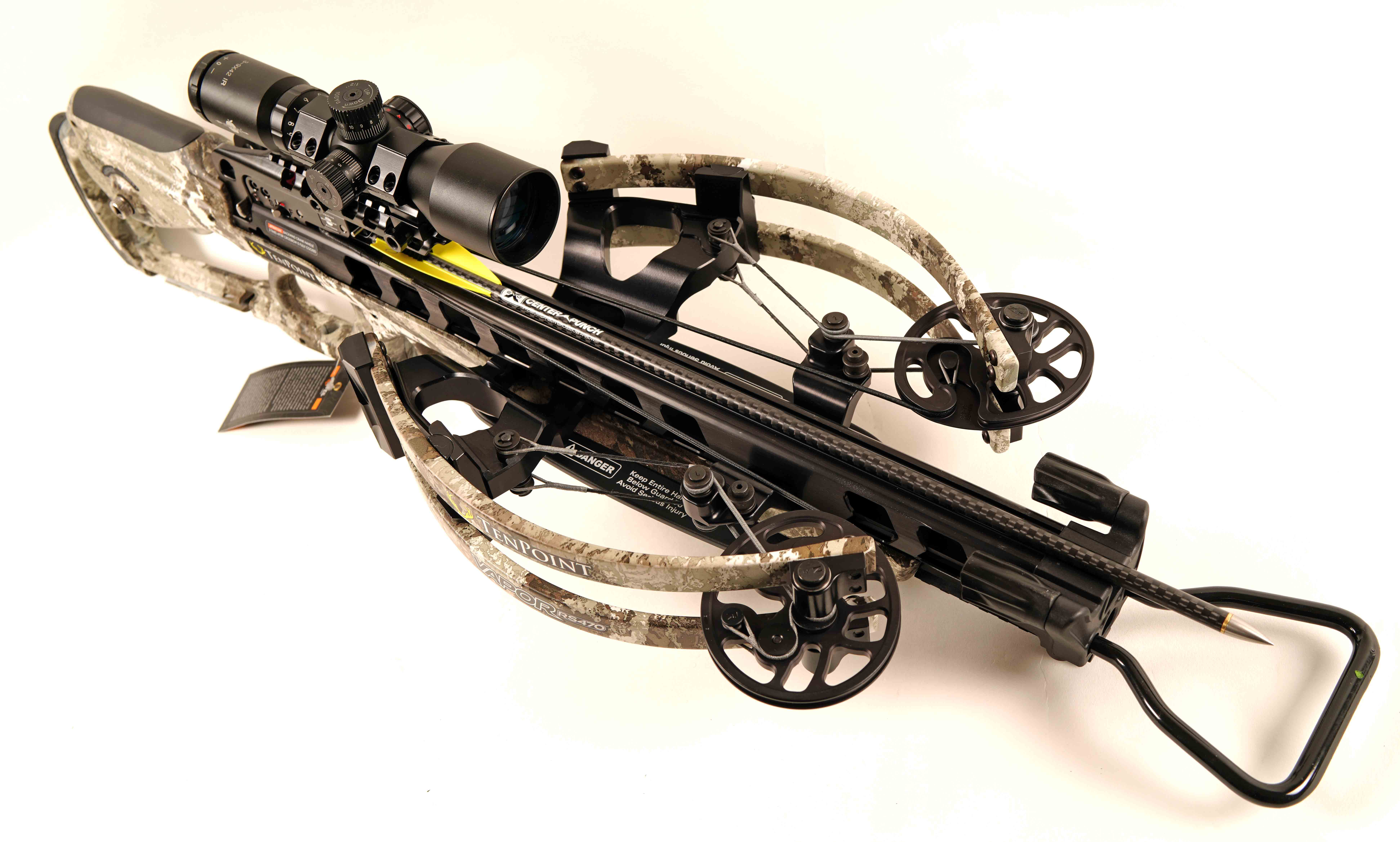

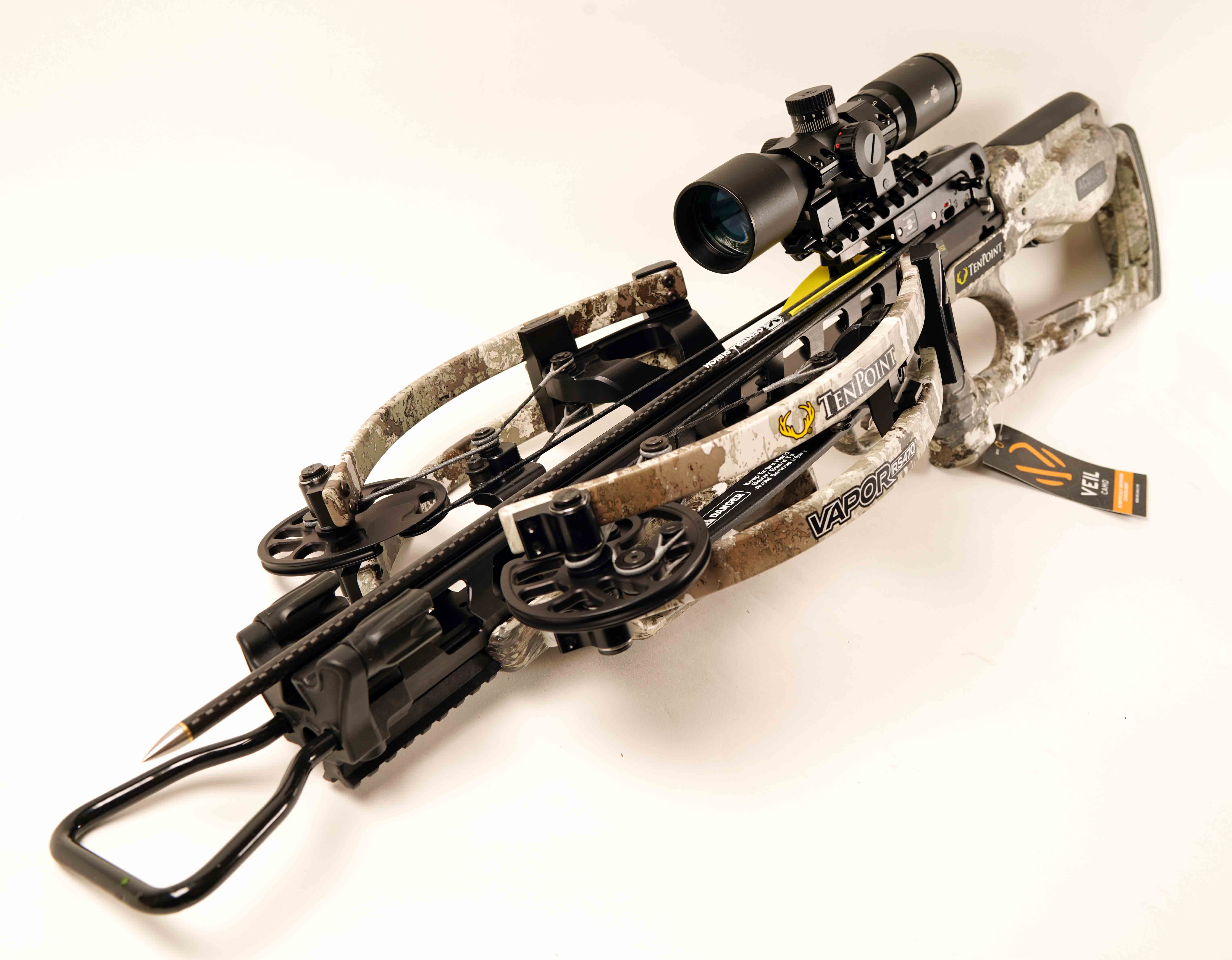

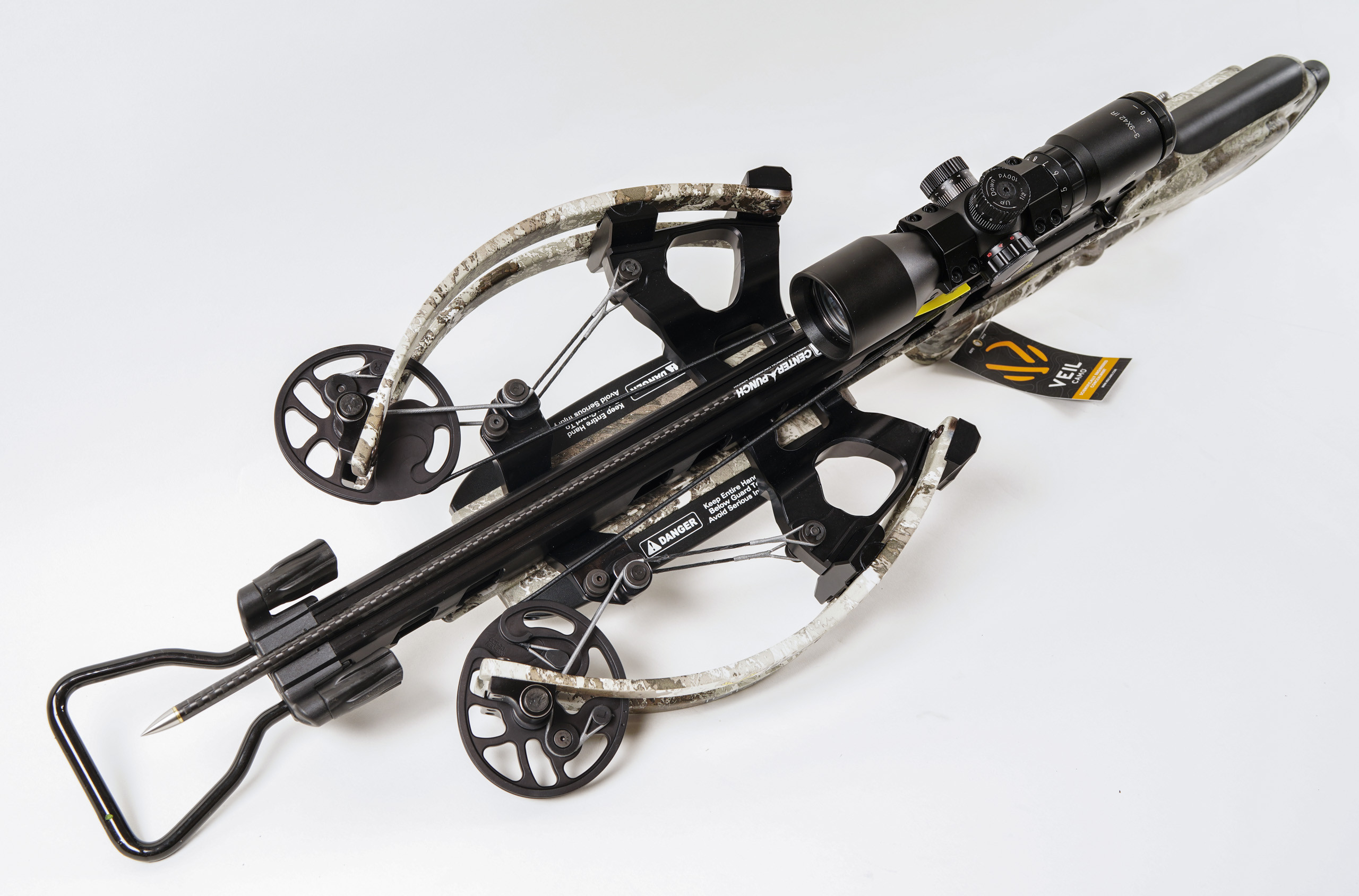

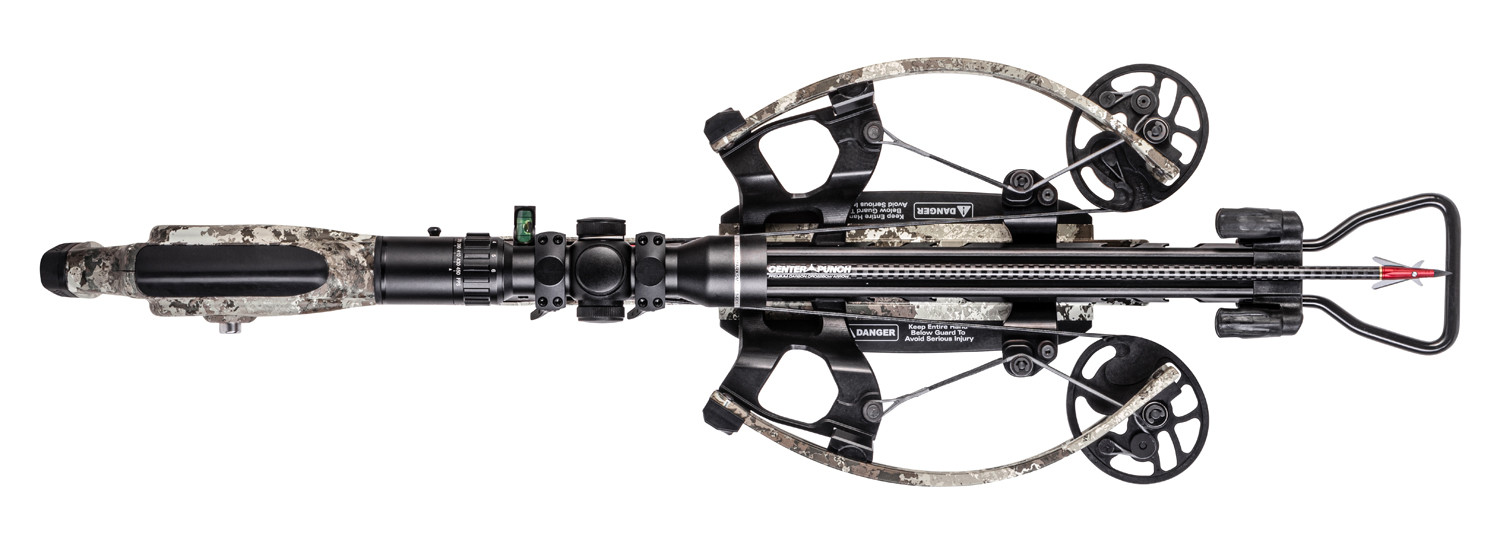

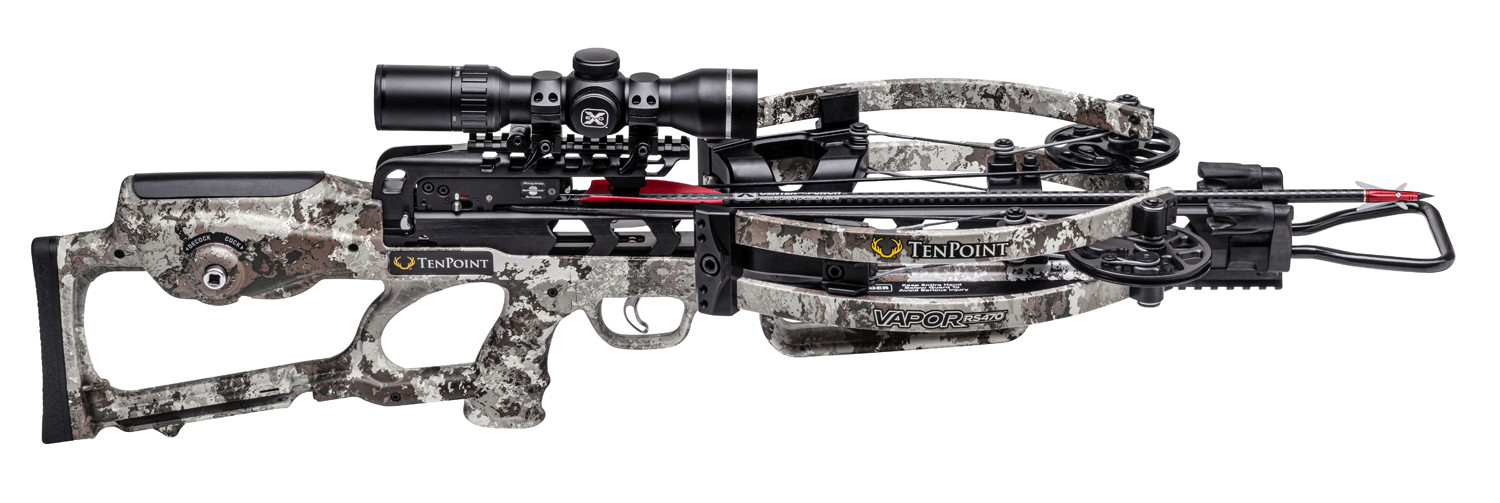

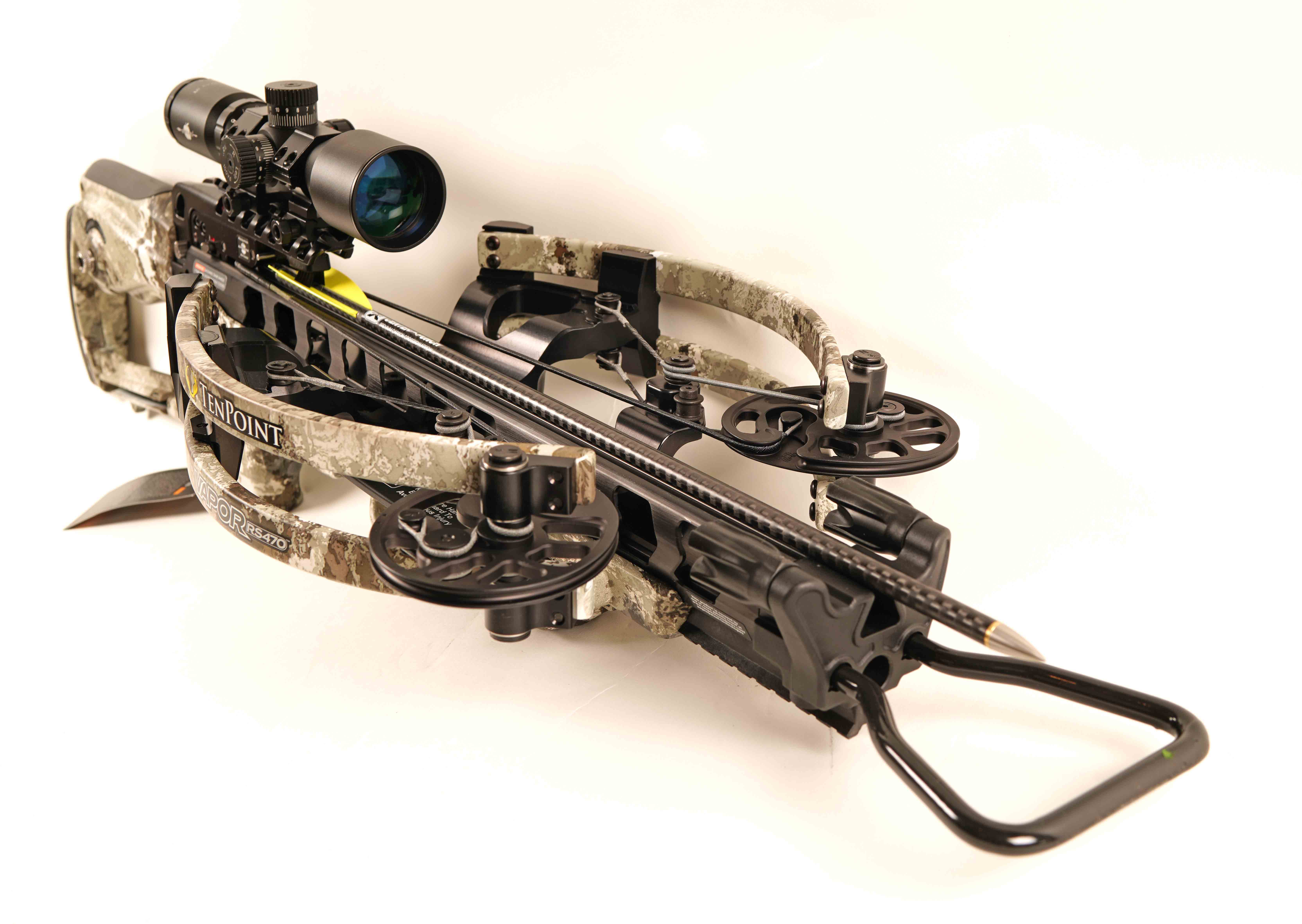

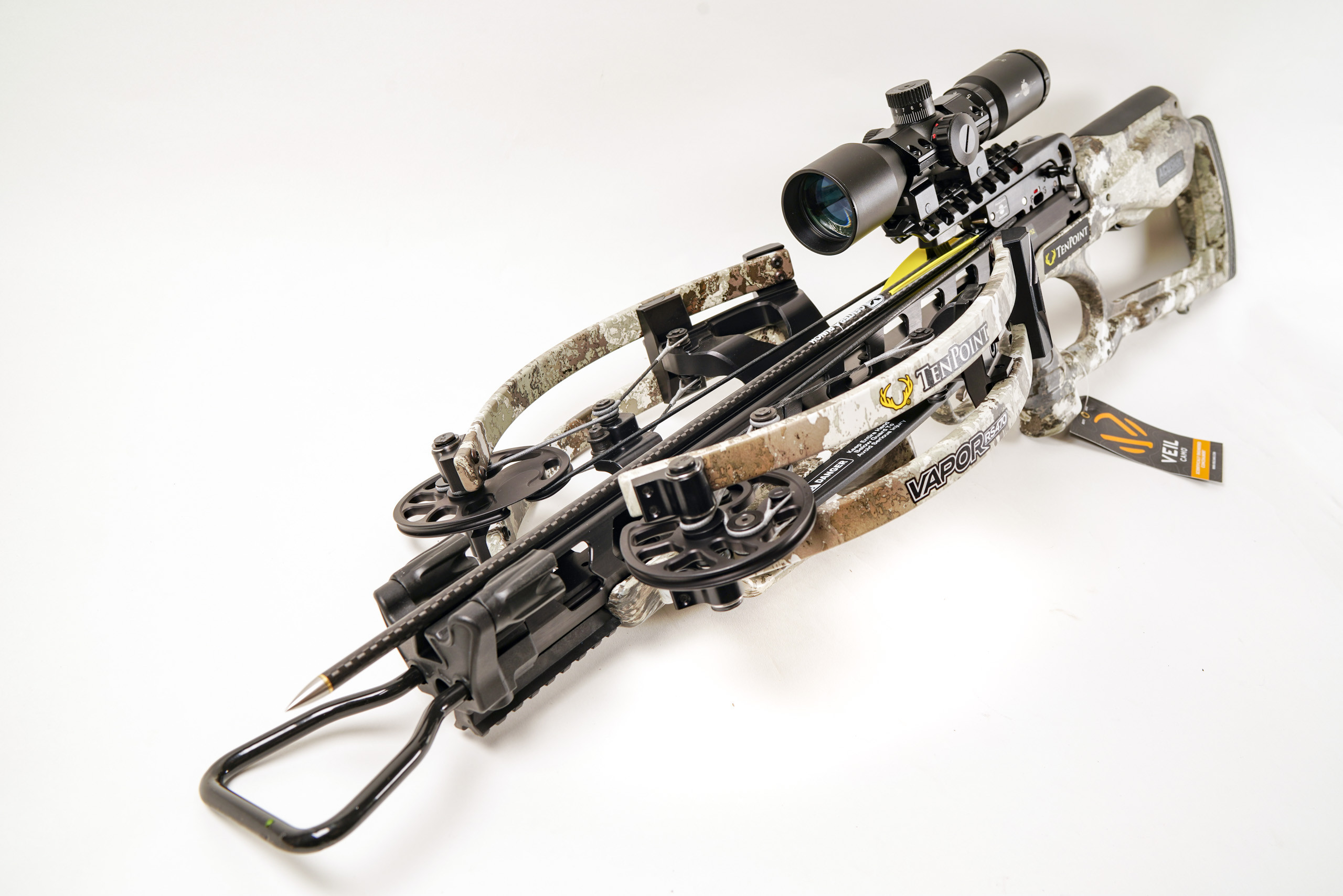

TenPoint Vapor RS470 Veil Alpine

Manufacturer: TenPoint Crossbows

Prices and Packages

Vapor RS470 Veil Alpine, TenPoint Crossbows

The Vapor RS470 Veil Alpine will be provided with following:

Vapor RS470 Veil Alpine
TenPoint Dovetail Bubble Level
TenPoint ACUSlide
TenPoint 6-Arrow Tech Quiver
20" TenPoint EVO-X CenterPunch, 3.5" X Vanes, .001, Brass Insert, Alpha Nock Aluminum (6 pk)
20" TenPoint EVO-X CenterPunch, 3.5" X Vanes, .001, Brass Insert, Alpha Nock - Alpha-Brite, incl. Lightsticks (6 pk)
12x Arrow tip
TenPoint Trucker Hat grey/white
TenPoint Xtend 7.5" Adjustable Crank Handle (Universal fit for all AD units)

Crossbow from our model archive.
This model is no longer manufactured and is no longer available. Questions regarding accessories, spare parts or successor models: Contact.

Delivery time: 1-3 working days.

As German direct importer for crossbows of TenPoint Crossbows we offer full technical service, many years of experience, complete spare parts in stock as well as qualified advice.

Recommended accessories

Technical specification

Type: Compound
Powerstroke: 17 "; 43,2 cm
Teflon impregnated: no
Dryfire protection: yes
Hollow machined track: no
Number of limbs: 4
CNC machined riser: yes
Sight base included: yes
Length incl. stirrup: 34,6 "; 88 cm
Axle to axle bow width (de-cocked): 12,4 "; 31,5 cm
Bowstring material: DynaFlight
Country: USA
Trigger safety: yes
Triggerweight: 3,5 lbs; 1,6 kg
Trigger safety autom: yes
Overall width (de-cocked): 15,6 "; 39,5 cm
Dampening system: yes
Length without stirrup: 30,7 "; 78 cm
Loudness (tendency): very quiet
Triggersystem: S1 Trigger, Two Stage
String and cablesystem: uniform
Total mass: 8,2 lbs; 3,7 kg
Specifics: Two stage trigger, compact Reverse Draw crossbow (bow opens to the front) with built-in, silent crank tensioning mechanism ACU SLIDE for fast and comfortable tensioning and relaxing (if necessary)

Manufacturer's information:
TenPoint Crossbow Technologies, 1325 Waterloo Road, Mogadore, OH 44260, USA
www.tenpointcrossbows.com

Responsible person:
AIA Pfeilsport GmbH, Schillerstr. 70, 16341 Panketal

E-Mail:
info@pfeilsport-gmbh.de

Arrow speed

Minimalarrow 370 grain (24 g):
Arrow speed
470 fps
143 m/s
Arrow energy
E₀ 246 Joule
E₀ 182 ft-lb
Idealarrow 450 grain (29,2 g):
Arrow speed
427 fps
130 m/s
Arrow energy
E₀ 248 Joule
E₀ 183 ft-lb
Standardarrow 506 grain:
-

Matchin crossbowarrows

Arrow weight(s): 450 grain; 29,2 g
Shaft spline carbon: 2264
Shaft spline alu: --
Arrow length(s): 20 "; 50,8 cm
Min. arrow diameter: 8,7 mm; 0,3425 "

Range

max. adjustable range with scope and accessories (elevation scope mount):
Range
200 m
219 Yard
max. range standardvisor:
Range
80 m
87 Yard
