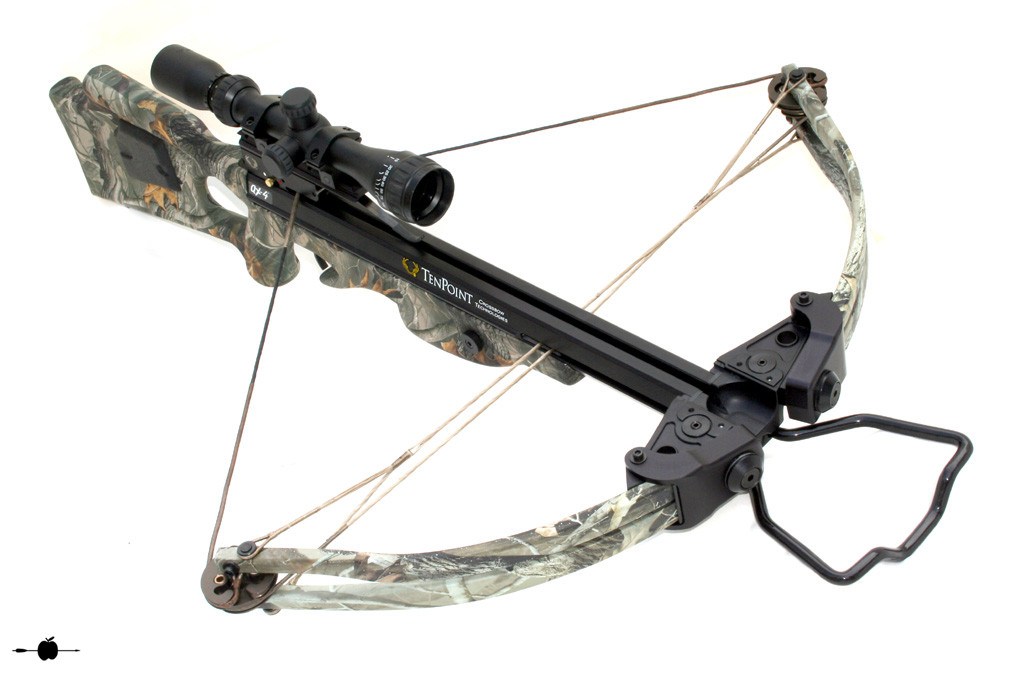

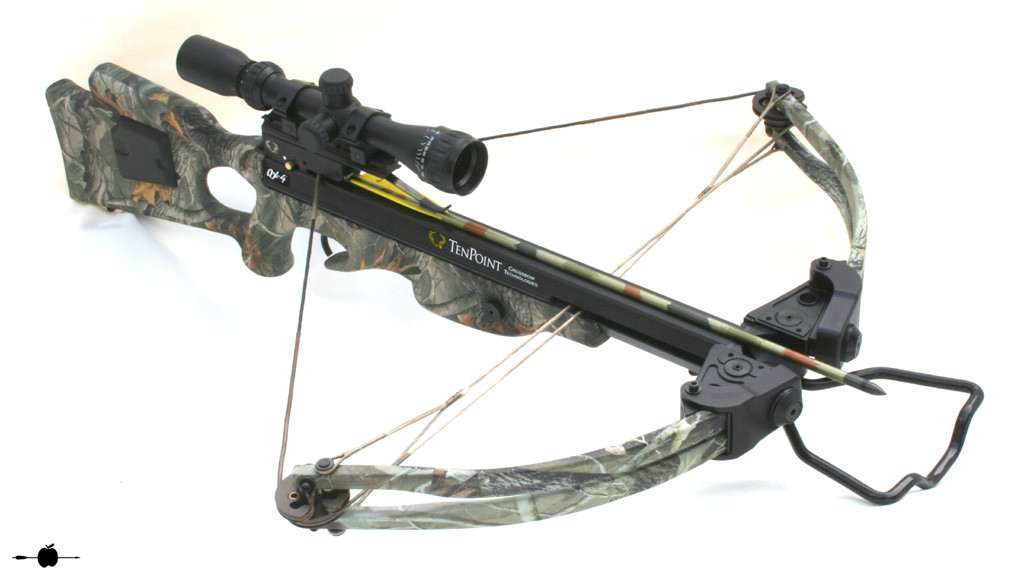

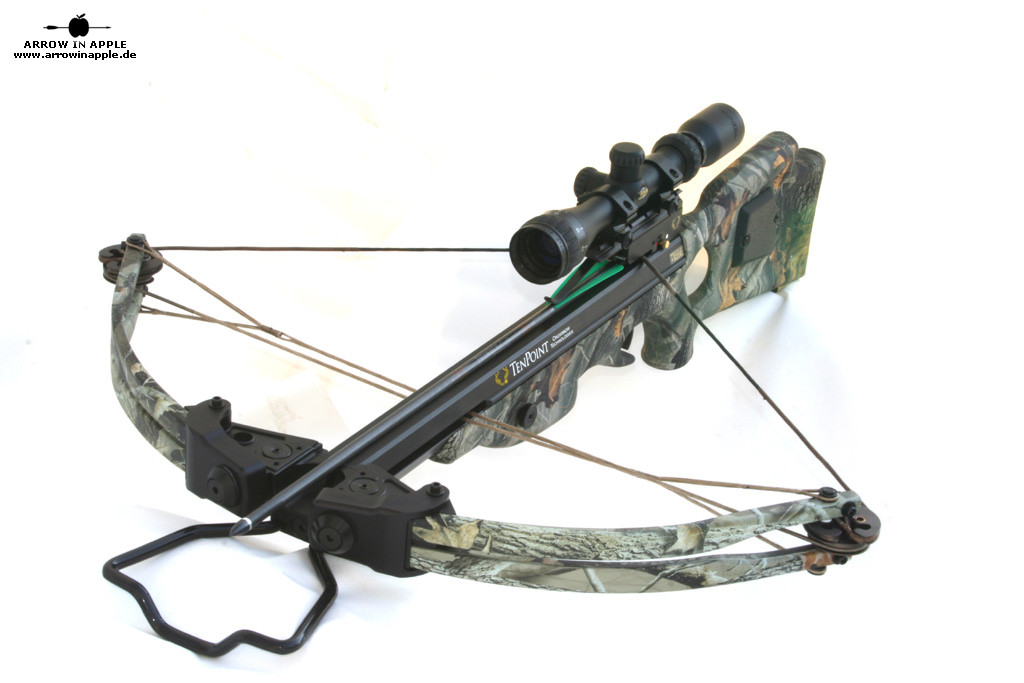

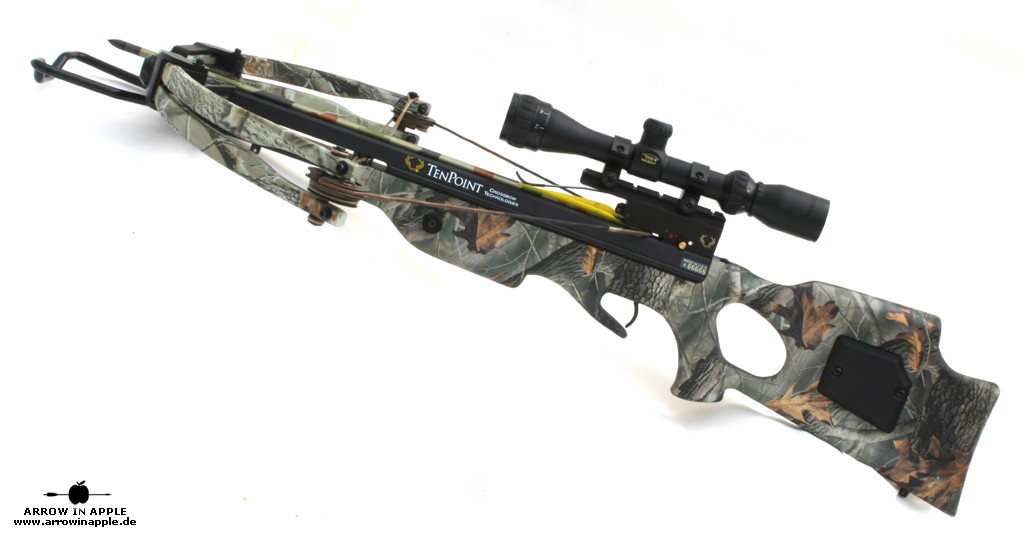

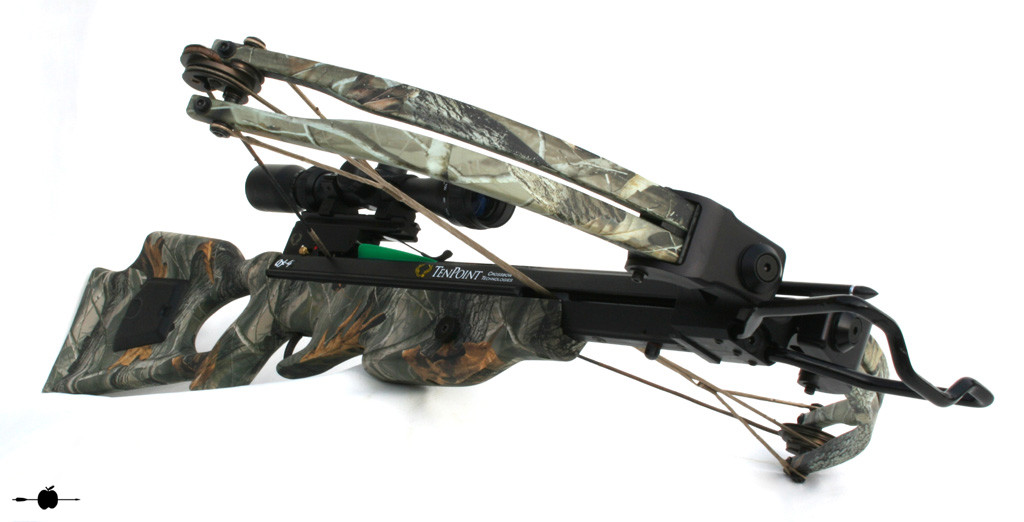

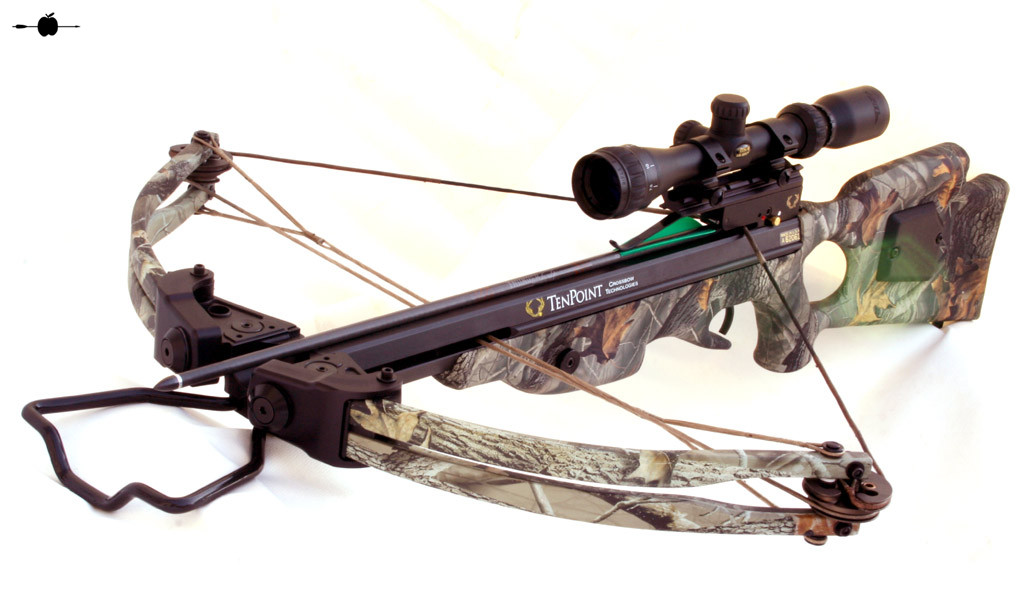

TenPoint QX 4

Prices and Packages

QX 4, TenPoint Crossbows

The QX 4 will be provided with following:

  • 3 arrows 22" 2219, xx75 Camo Hunter
  • free shipping within Germany
  • no scope included
Crossbow from our model archive.
This model is no longer manufactured and is no longer available. Questions regarding accessories, spare parts or successor models: Contact.
As German direct importer for crossbows of TenPoint Crossbows we offer full technical service, many years of experience, complete spare parts in stock as well as qualified advice.

Description

The QX-4 possesses all the perfect shooting ablities of the Elite and Pro Elite. In principle this crossbow is a bargain buy at this time, because it will be only be available with the same properties and parts as the top-models for a short time.

These crossbows are really bursting with highlights and innovations.

By employing special dampers on the limbs(Elite models only) and in the riser (all models) these crossbows are even more silent than the older Stealth or Magnum Extreme series.

Every crossbow of the QX-4 Series boasts an outstanding precision, owned to one of the best triggers (Power Touch Trigger) in this sector.

The Crossbow Hunter Unlimited 3D European Championship 2006 in Austria was won with a TenPoint crossbow.

Safety First! According to that priority 3 security measures are included: an automatic Ladesicherung, dry fire safety, additional Stützhandsicherung).

The workmanship is one of the best on the market and therefore TenPoint is not called the Mercedes of the crossbow-manufacturer for nothing.

Technical specification

Type
Compound
Draw weight
185 lbs
84 kg
Powerstroke
11,3 "
28,7 cm
Teflon impregnated
yes
Dryfire protection
yes
Hollow machined track
no
Number of limbs
4
CNC machined riser
yes
Sight base included
yes
Length incl. stirrup
37,4 "
95 cm
Axle to axle bow width (de-cocked)
25,7 "
65,2 cm
Bowstring material
FastFlight
Country
USA
Trigger safety
yes
Triggerweight
3,5 lbs
1,6 kg
Trigger safety autom
yes
Withdrawal force
824 N
Overall width (de-cocked)
27,4 "
69,5 cm
Dampening system
no
Length without stirrup
33,5 "
85 cm
Loudness (tendency)
quiet
Triggersystem
Power Touch Trigger, nach oben öffnend
String and cablesystem
uniform
Total mass
8,5 lbs
3,9 kg
Specifics
  • additional support-hand safety
  • mountable 3 arrow quiver
  • 2 different cocking aid systems firmly integrable (ACU Draw and ACU Draw 50)
  • Scope optional
  • Shoulder sling mountable
Manufacturer's information:
TenPoint Crossbow Technologies, 1325 Waterloo Road, Mogadore, OH 44260, USA
www.tenpointcrossbows.com

Responsible person:
AIA Pfeilsport GmbH, Schillerstr. 70, 16341 Panketal

E-Mail:
info@pfeilsport-gmbh.de

Arrow speed

  • Minimalarrow:
    -
  • Idealarrow 417 grain (27 g):
    Arrow speed
    313 fps
    95 m/s
    Arrow energy
    E0 123 Joule
    E0 91 ft-lb
  • Standardarrow 506 grain:
    Arrow speed
    285 fps
    87 m/s
    Arrow energy
    E0 124 Joule
    E0 91 ft-lb

Matchin crossbowarrows

Arrow weight(s)
417 grain
27 g
Shaft spline carbon
2264
Shaft spline alu
2219
Arrow length(s)
20 "
50,8 cm
Min. arrow diameter
8,73 mm
0,3437 "

Range

  • max. adjustable range with scope and accessories (elevation scope mount):
    Range
    70 m
    77 Yard
  • max. range standardvisor:
    Range
    --
