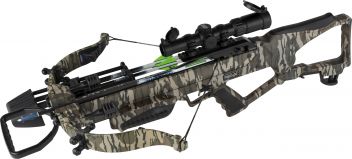

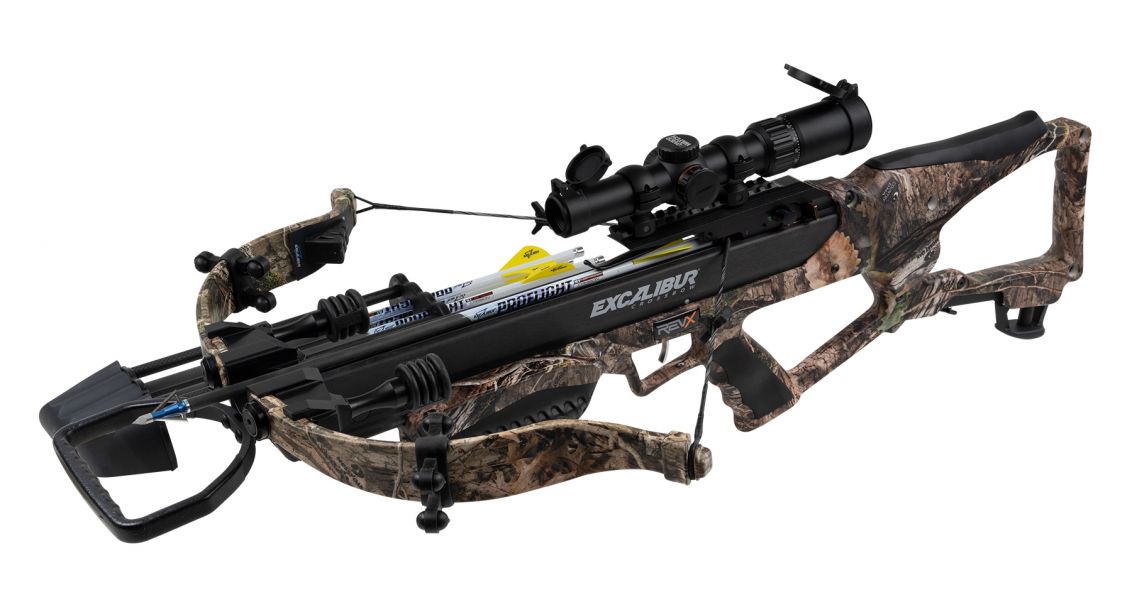

Excalibur RevX

Manufacturer: Excalibur

Prices and Packages

RevX, Excalibur

The RevX will be provided with following:

RevX
Excalibur Scope Rings, 30mm, Weaver style, fits 7/8" Dove-tail
R.E.D.S Suppressors (For Micro, Matrix Grizzly and Matrix CUB)
Sound Deadening System Excalibur
Excalibur Rebolt Quiver, black
Excalibur ChargerX Integrated Crank
Select package:
Package Deal 1 includes additionally:
1x Excalibur Overwatch Straight Tube Scope 2 - 5x, 30mm tube
4x
4x
1.499,00€ In stock.
Package Deal 2 includes additionally:
1x AIA FlexRange - FRS 101-12 (incl. Scope Rings)
4x 16.5" ArcherOpterX R, 2" Blazer Vanes, .001, Brass Insert, Rhino Nock
4x TopHat Arrow Tip 100 grain Bullet 11/32
1.799,00€ In stock.

In stock.

Delivery time: 1-3 working days.

from 1.499,00€

incl. 19% VAT for shipping to Germany Depending on the delivery country, the VAT may vary at checkout.

Information about ordering, payment and shipping

Delivery time: 1-3 working days.

Videos of the RevX

Excalibur RevX

Description

The REV X comes with a, for Excalibur totally new, built-in crank tensioning system with a tensioning strap via a small built-in gearbox. This model is probably the most modern that Excalibur currently produces. This enables the crossbow to be cocked and uncocked without any problems. The cocking strap has virtually no wear. The Caesfire trigger releases the string with less weight than previous models.

The Excalibur REV X Crossbow – where innovation meets excellence. With our new integrated Charger X crank platform, we've redefined the crossbow experience, offering a sleek and streamlined design for better balance and ease of use. Cock it effortlessly with reduced effort, and enjoy the added safety of easy decocking. Top it off with Excalibur's renowned recurve designed that provides durability and confidence second-to-none. Simply put, the Excalibur REV X is the world's most reliable and user-friendly crossbow, period. Elevate your crossbow game with the REV X and experience the future of crossbow technology.

Recommended accessories

Technical specification

Name: RevX
Manufacturer: Excalibur Crossbow Inc
Type (Compound/Recurve): Recurve
Draw weight: 400 lbs
Weight: 3,58 kg
Powerstroke: 12,75 Inch
Dryfire protection: Yes
Number of limbs: 2
CNC machined riser: Yes
Sight base included: Yes
Length incl. stirrup: 33 Inch
Bowstring material: DynaFlight
Country: CAN
Trigger safety: Yes
Trigger safety autom: No
Dampening system: Yes
Length without stirrup: 29,5 Inch
Loudness (tendency): sehr leise

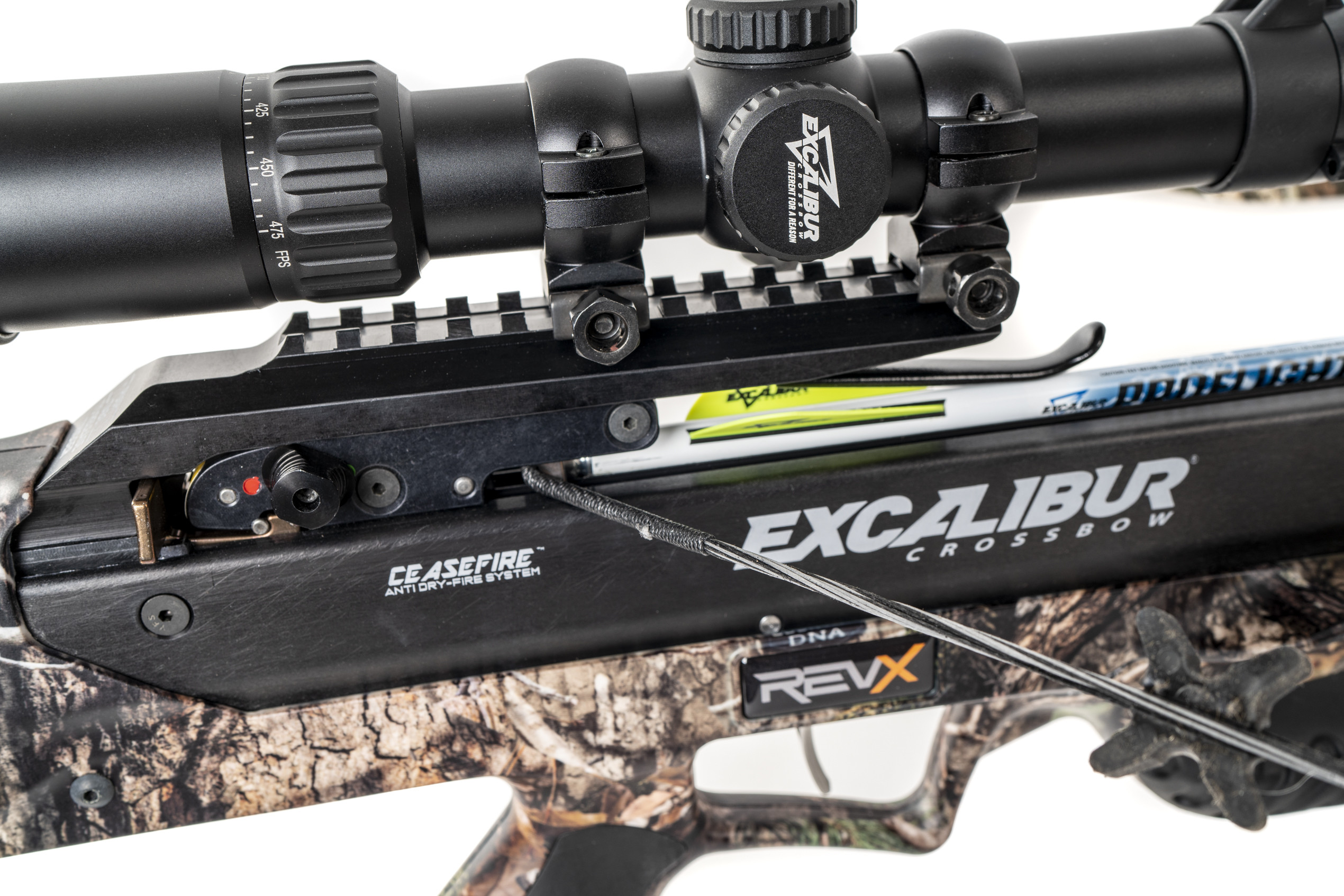

Triggersystem: Excalibur Caesfire Trigger
String and cablesystem: uniform
Total mass: 7,9 lbs
Specifics: With built-in crank system and cocking strap. This enables the crossbow to be cocked and uncocked easily and simply. Easy on the back and requires little effort.

Arrow speed

Minimalarrow (355 grain):

Arrow speed

121,92 m/s

438,912 km/h

400 fps

Arrow energy

171 Joule E₀

126,7 ft-lb (foot-pound)
Idealarrow (41426,84 grain):

Arrow speed

118 m/s

424,8 km/h

387 fps

Arrow Energy

186,7 Joule E₀

138,3 ft-lb (foot-pound)
Standardarrow (506 grain):

Arrow speed

-

-

-

Arrow Energy

-

-

Matchin crossbowarrows

Arrow weight: 41426,84 grain
Shaft spline carbon: 2264
Shaft spline alu: 2219
Arrow length: 16,5 Inches
min. arrow diameter: 8,7 mm

Range

max. adjustable range with scope and accessories (elevation scope mount):

Range

132 yard
max. range standardvisor:

Range

100 yard
