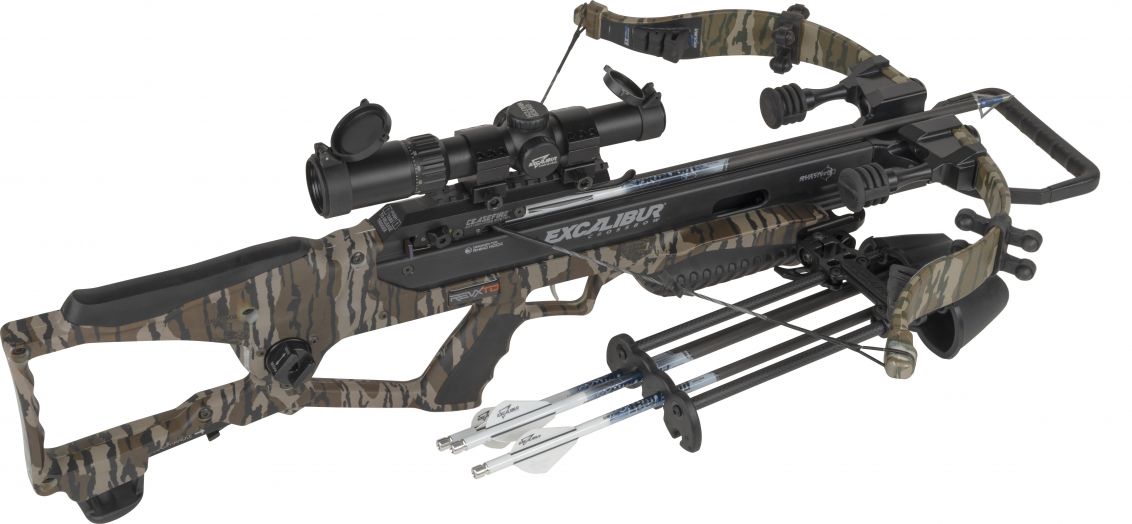

Excalibur RevX TD Bottomland

Manufacturer: Excalibur
RevX TD Bottomland (5057)
RevX TD Bottomland (5065) RevX TD Bottomland (5064) RevX TD Bottomland (5061) RevX TD Bottomland (5060) RevX TD Bottomland (5059) RevX TD Bottomland (5058) RevX TD Bottomland (5056) RevX TD Bottomland (5055) RevX TD Bottomland (5054) RevX TD Bottomland (5053) RevX TD Bottomland (5052) RevX TD Bottomland (5051) RevX TD Bottomland (5050) RevX TD Bottomland (5049) RevX TD Bottomland (5048)

Prices and Packages

RevX TD Bottomland, Excalibur

The RevX TD Bottomland will be provided with following:

  • RevX TD Bottomland RevX TD Bottomland
  • Excalibur ChargerX Integrated Crank Excalibur ChargerX Integrated Crank
  • Excalibur Overwatch Straight Tube Scope 2 - 5x, 30mm tube Excalibur Overwatch Straight Tube Scope 2 - 5x, 30mm tube
  • Excalibur Scope Rings, 30mm, Weaver style, fits 7/8 Excalibur Scope Rings, 30mm, Weaver style, fits 7/8" Dove-tail
  • R.E.D.S Suppressors (For Micro, Matrix Grizzly and Matrix CUB) R.E.D.S Suppressors (For Micro, Matrix Grizzly and Matrix CUB)
  • Sound Deadening System Excalibur Sound Deadening System Excalibur
  • Excalibur Rebolt Quiver, black Excalibur Rebolt Quiver, black
  • 16.5 4x 16.5" Excalibur PROFLIGHT, 2" Blazer Vanes, Alu Insert, Rhino Nock
  • No image available 4x Pfeilspitze 100 gr
  • Excalibur Explore Case Excalibur Explore Case
  • Select package:
New! Shortly available.
Status inquiries and reservations: Contact.

Delivery time: 1-3 working days.

Information about ordering, payment and shipping

more models
Variants of this crossbow

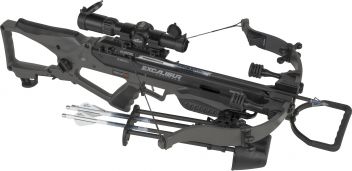

RevX TD Stealth Grey New! Shortly available. Details
As German direct importer for crossbows of Excalibur we offer full technical service, many years of experience, complete spare parts in stock as well as qualified advice.

Videos of the RevX TD Bottomland

Excalibur RevX TD Crossbow Excalibur RevX TD Crossbow

Description

The RevX TD, a takedown crossbow that retains all Excalibur characteristics and goes beyond them. The same proven robustness, ease of use, and safety – in a system that packs more compactly and can be transported more easily. The Quick-Loc technology enables disassembly and assembly with precise form-fit connection. Without tools and without thinking about it. The click means security. It means that everything is firmly locked in place, with no deviation from the previous assembly.

  • Quick-Loc Technology lets you disassemble and reassemble the Excalibur RevX TD in seconds with a button pull, exclusive to Excalibur’s proven recurve design.
  • Advanced ChargerX Integrated Crank. Redefining convenience and safety in the field. It's never been easier to cock or de-cock a crossbow!
  • CeaseFire™ ensures the crossbow cannot fire unless an arrow is loaded, safety is off, and the trigger is pulled, for ultimate confidence and safety.
  • Premium, clean-breaking Trigger that delivers precise consistent accuracy like no other.
  • The Explore Take-Down Utility Soft Case offers premium protection and easy transport, designed exclusively for Excalibur’s Take-Down Series to maximize space and convenience.
  • Excalibur’s legendary design and technology produce the most rugged and reliable crossbow in its class.

Recommended accessories

Technical specification

Crossbow type
hunting / sports crossbow
Number of limbs
2
Crossbow system type
Forward-Draw
Rail type
Full-surface contact
Bow system
Recurve
Assembly state on delivery
bow must be mounted (see mountingmethod)
Bow mounting method
clickystem / clasp
Width (Overall, cocked)
21 "
52 cm
Width (Overall, Uncocked)
25 "
64 cm
Length (w/o foot stirrup)
33 "
83,8 cm
Scope mount included
yes
Scope Mount Material
Metal
Weight (bow only)
7,5 lbs
3,4 kg
Stock material
plastic
Stock length adjustable
no
Power stroke adjustable
no
Draw weight
325 lbs
147 kg
Cocking Effort (with Crank)
16 lbs
7 kg
Manufacturer's information:
Excalibur Crossbow, 2335 Shirley Drive, Kitchener, ON N2B 3X4, CA
info@excaliburcrossbow.com

Responsible person:
AIA Pfeilsport GmbH, Schillerstr. 70, 16341 Panketal

E-Mail:
info@pfeilsport-gmbh.de

Arrow speed

  • Minimalarrow 350 grain (23 g):
    -
  • Idealarrow:
    -
  • Herstellerangabe:
    Speed/KE (manufacturer info)
    400 fps
    122 m/s

Matchin crossbowarrows

Arrow Length (Optimum)
16,5 "
41,9 cm

Range

-
